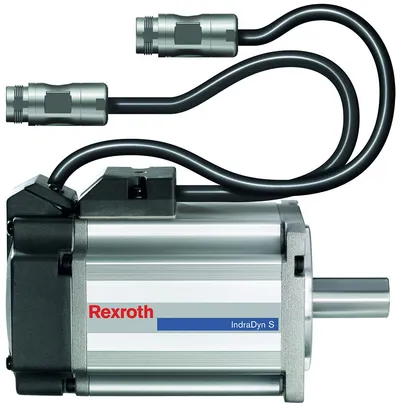

Motors for Small Modules SMS Parts
Compare Motors for Small Modules SMS
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Maximum torque [Nm] | Flange size [mm] | Motor type | Standstill torque (int. cooling) 60k [Nm] | Weight [kg] |
|---|---|---|---|---|---|
| R911344216 | 3.8 | 60 | with holding brake | 1.3 | 1.93 |
| R911344215 | 3.8 | 60 | without holding brake | 1.3 | 1.49 |
| R911344214 | 1.91 | 60 | with holding brake | 0.64 | 1.55 |
| R911344213 | 1.91 | 60 | without holding brake | 0.64 | 1.13 |
| R911344212 | 0.95 | 38 | with holding brake | 0.32 | 0.94 |
| R911344211 | 0.95 | 38 | without holding brake | 0.32 | 0.73 |
| R911344210 | 0.48 | 38 | with holding brake | 0.16 | 0.79 |
| R911344209 | 0.48 | 38 | without holding brake | 0.16 | 0.55 |
Common to all listed parts
| Maximum speed [rpm] | 5000.0 |
| Cooling type | Self-cooling |
| Encoder design | Optical encoder, multiturn absolute (20 bit) |
| electrical connection | Cable connection, circular connector M17 |
