Bosch Rexroth R349947700

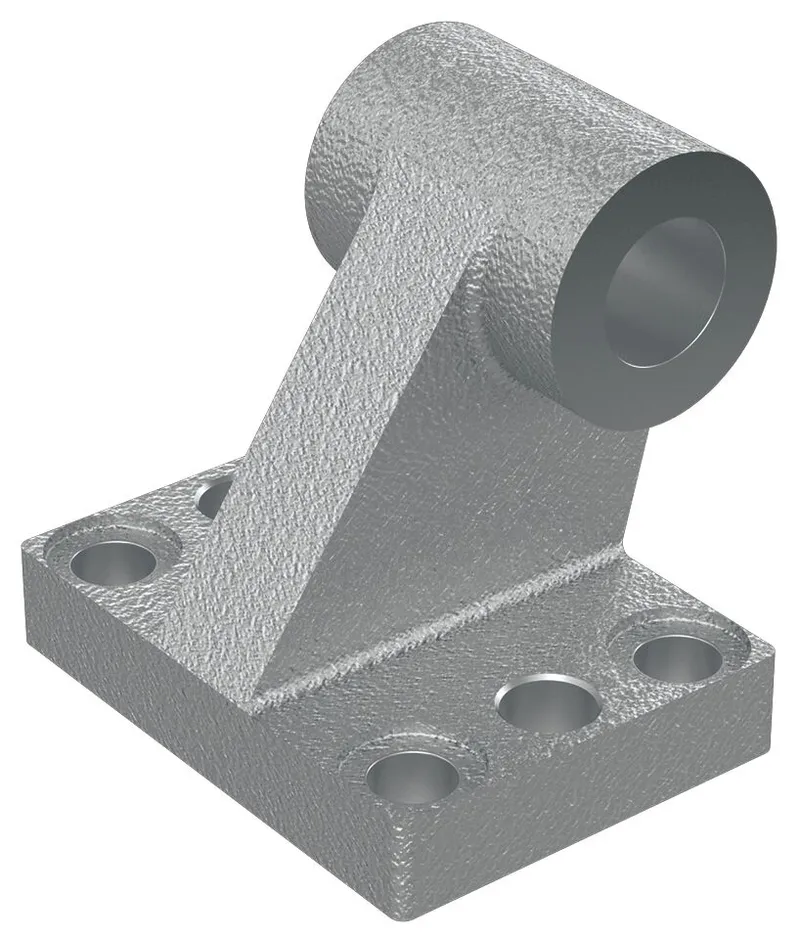

BEARING PEDESTAL CETOP EMC50 &

MPN: R349947700
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R349947700?

Group 6, option 01

Material: Galvanized cast iron with spheroidal graphite

Counterpart to clevis mount group 5, option 07

Specifications

Fastening elements for electromechanical cylinders	Bearing block
Nominal size [mm]	50
Weight [kg]	0.44
Surface finishing	galvanized
Pitch T guide rail [mm]	6
Material of electromechanical cylinders	Cast iron with spheroidal graphite

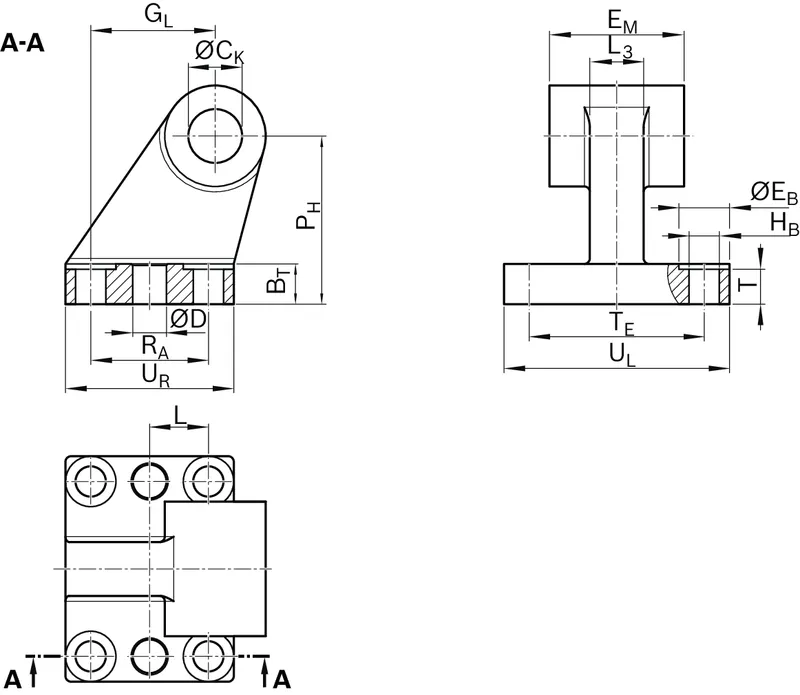

Dimension BR [mm]	13
Dimension BT [mm]	12
Dimension CK H9 [mm]	12
Dimension EB H13 [mm]	11
Dimension EM [mm]	32
Dimension GL [mm]	33
Dimension HB H13 [mm]	9
Dimension L tolerance [mm]	±0.2
Dimension L3 [mm]	16
Dimension PH JS15 [mm]	45
Dimension RA JS14 [mm]	30
Dimension T [mm]	6
Dimension TE JS14 [mm]	50
Dimension TL tolerance [mm]	-0.2; -0.6
Dimension UL [mm]	65
Dimension UR [mm]	45
