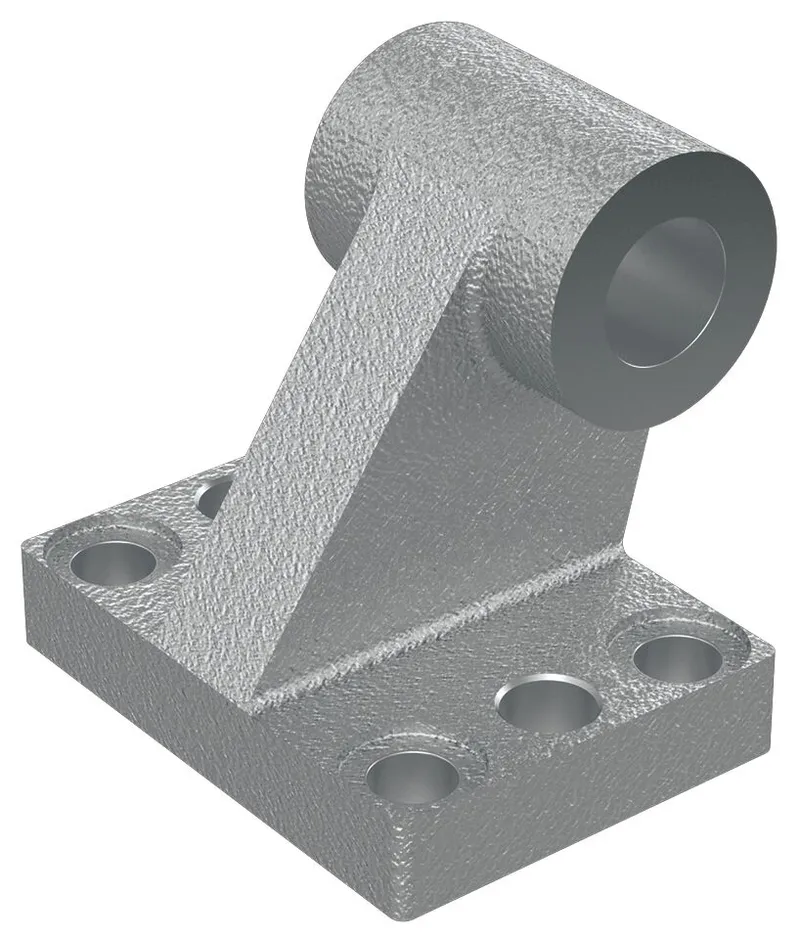

Bosch Rexroth R349947500

BEARING PEDESTAL CETOP EMC32 &

MPN: R349947500
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R349947500?

Group 6, option 01

Material: Galvanized cast iron with spheroidal graphite

Counterpart to clevis mount group 5, option 07

Specifications

Fastening elements for electromechanical cylinders	Bearing block
Nominal size [mm]	32
Weight [kg]	0.16
Surface finishing	galvanized
Pitch T guide rail [mm]	4
Material of electromechanical cylinders	Cast iron with spheroidal graphite

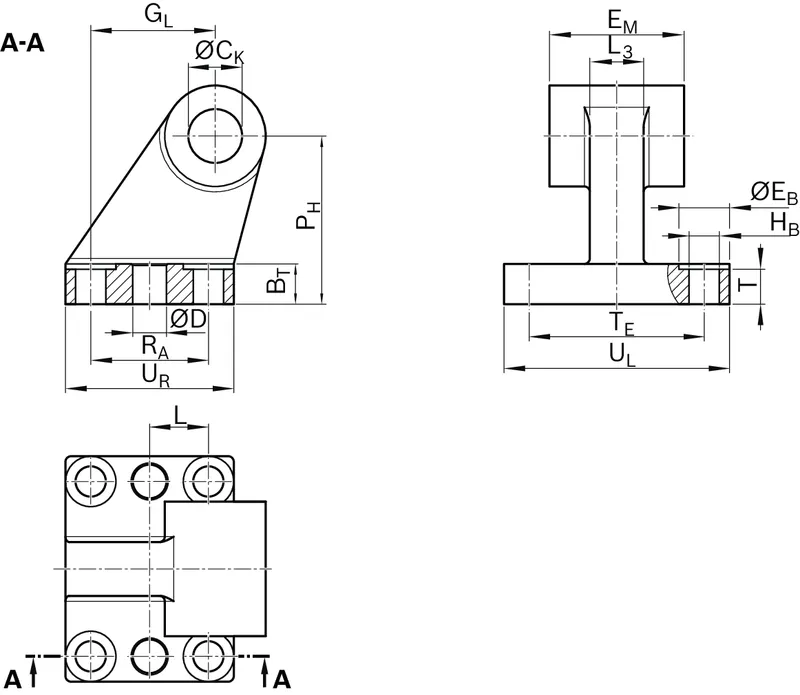

Dimension BR [mm]	10
Dimension BT [mm]	8
Dimension CK H9 [mm]	10
Dimension EB H13 [mm]	10
Dimension EM [mm]	26
Dimension GL [mm]	21
Dimension HB H13 [mm]	6.6
Dimension L tolerance [mm]	±0.2
Dimension L3 [mm]	10
Dimension PH JS15 [mm]	32
Dimension RA JS14 [mm]	18
Dimension T [mm]	4
Dimension TE JS14 [mm]	38
Dimension TL tolerance [mm]	-0.2; -0.6
Dimension UL [mm]	51
Dimension UR [mm]	31
