Bosch Rexroth R349948300

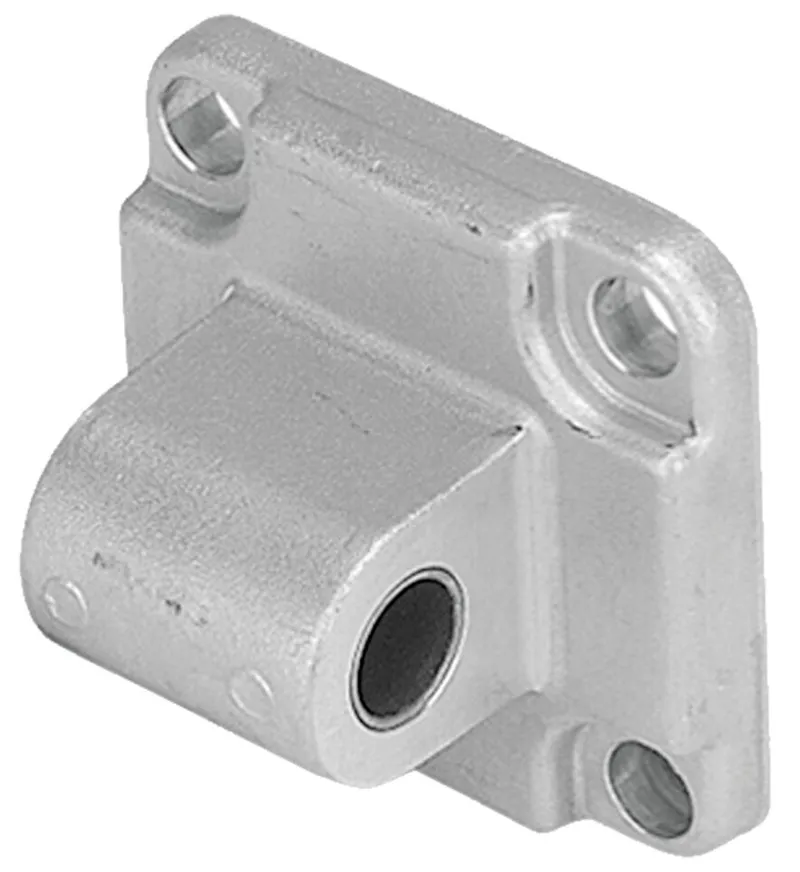

FLANGE SCHWENKFLANSCH EMC50 &

MPN: R349948300
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R349948300?

Group 6, option 02

Material: Aluminum/galvanized cast iron with spheroidal graphite

Specifications

Fastening elements for electromechanical cylinders	Swivel mount
Nominal size [mm]	50
Weight [kg]	0.18
Footnote max. dynamic load	Fmax EMC
Material of electromechanical cylinders	Aluminum

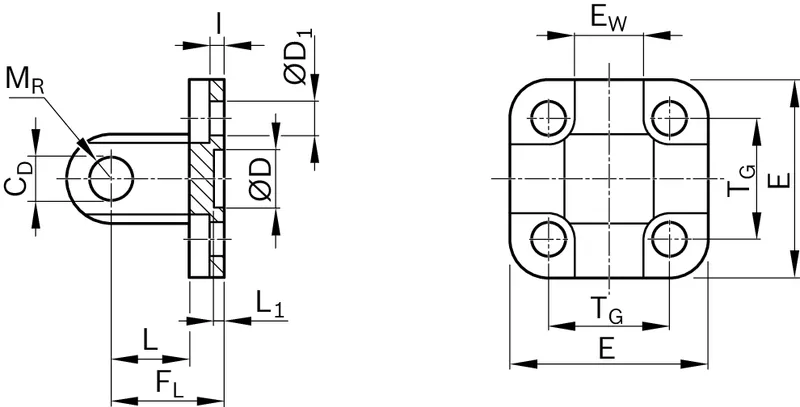

Dimension CD H9 [mm]	12
Dimension D H11 [mm]	40
Dimension D1 H13 [mm]	9
Dimension E [mm]	63
Dimension EW [mm]	32
Dimension FL [mm]	27
Dimension FL tolerance [mm]	±0.2
Dimension I [mm]	6.5
Dimension I tolerance [mm]	±0.5
Dimension L min. [mm]	15
Dimension L1 min. [mm]	4.5
Dimension MR max. [mm]	12
Dimension Tg [mm]	46.5
Dimension TG [mm]	46.5
Dimension TG tolerance [mm]	±0.2
Dimension TL tolerance [mm]	-0.2; -0.6
Dimension hex socket head cap screws DIN 912	M8x20 mm
Dimension hex socket head cap screw DIN 912 thread diameter	M8
Hex socket head cap screw DIN 912 screw Dimension, length [mm]	20
