Bosch Rexroth R349947400

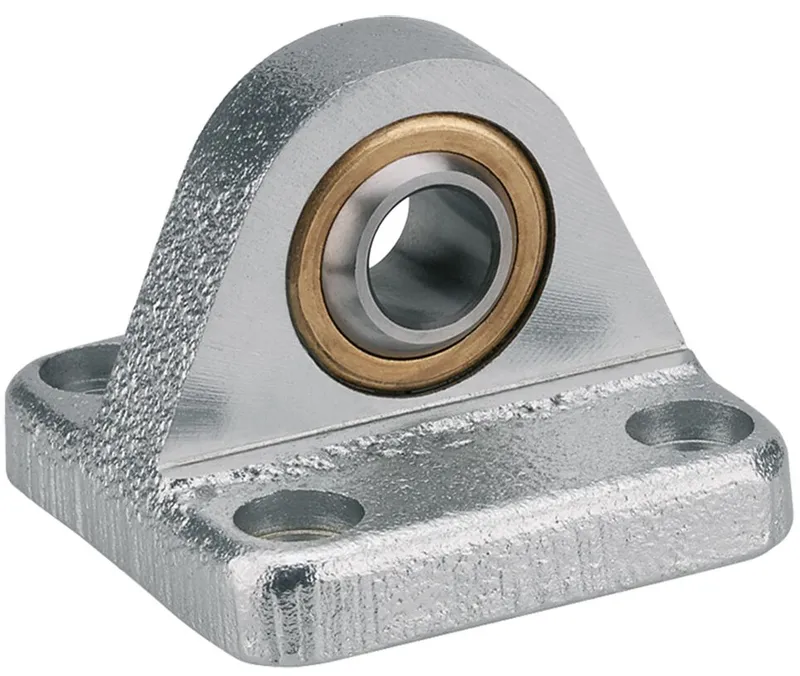

SPHERICAL PLAIN BEARING B EMC100 &

MPN: R349947400
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R349947400?

Group 6, option 04

Material: Aluminum/galvanized cast iron with spheroidal graphite

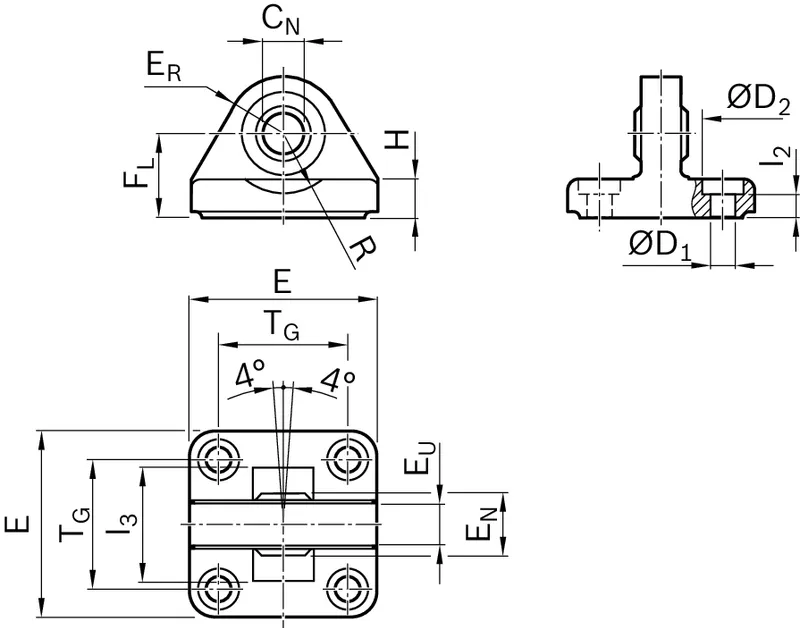

Specifications

Fastening elements for electromechanical cylinders	Swivel bearing
Nominal size [mm]	100
Weight [kg]	0.8
Max. dynamic load [bar]	22900
Material of electromechanical cylinders	Aluminum
Dimension CN H7 [mm]	20
Dimension D1 H13 [mm]	11
Dimension D2 H13 [mm]	18
Dimension E [mm]	115
Dimension EN [mm]	25
Dimension EN tolerance [mm]	-0.1
Dimension ER [mm]	30
Dimension EU [mm]	18
Dimension FL [mm]	41
Dimension FL tolerance [mm]	-0.2
Dimension H [mm]	15.0
Dimension I2 [mm]	10
Dimension l3 min. [mm]	80
Dimension R [mm]	25
Dimension Tg [mm]	89
Dimension TG [mm]	89
Dimension TG tolerance [mm]	±0.2
Dimension hex socket head cap screws DIN 912	M10x20 mm
Dimension hex socket head cap screw DIN 912 thread diameter	M10
Hex socket head cap screw DIN 912 screw Dimension, length [mm]	20
