Bosch Rexroth R349940900

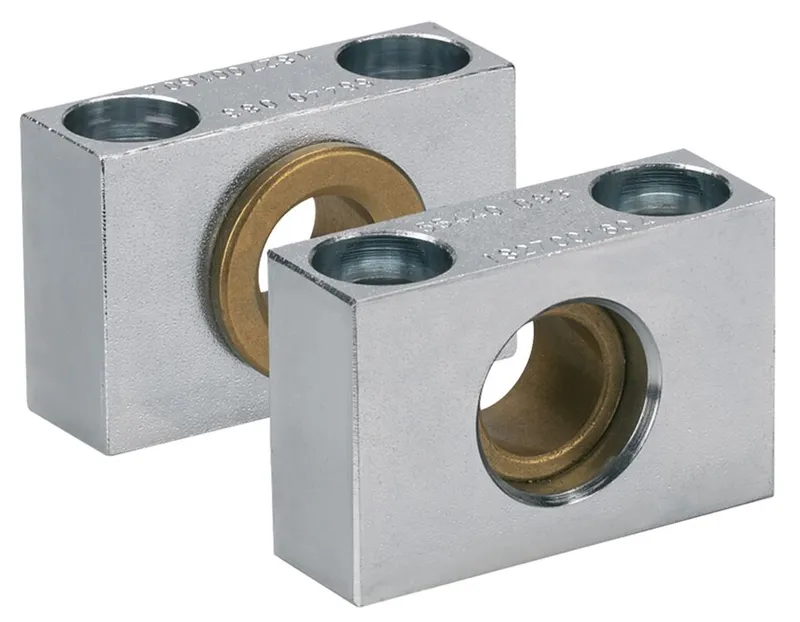

BEARING EMC32 &

MPN: R349940900
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R349940900?

included in group 3, option 03; group 5, option 03

Material: Galvanized steel, with female connectors made of sintered bronze

Specifications

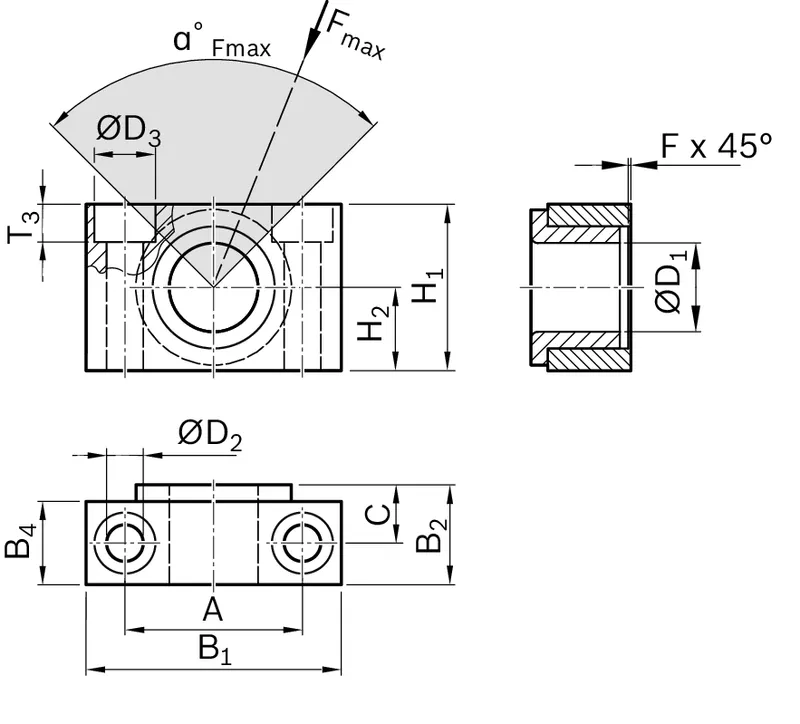

Fastening elements for electromechanical cylinders	Bearing for trunnion
Nominal size [mm]	32
Weight [kg]	0.25
Surface finishing	galvanized
Material of electromechanical cylinders	Steel
Dimension A (profiled rail systems) [mm]	32
Dimension A tolerance [mm]	±0.2
Dimension B1 f8 [mm]	46
Dimension B2 (profiled rail systems) [mm]	18
Dimension B4 [mm]	15
Dimension C [mm]	10.5
Dimension D1 H7 [mm]	12
Dimension D2 H12 [mm]	6.6
Dimension D3 H13 [mm]	11
Dimension F x 45° [mm]	1
Dimension H1 (profiled rail systems) [mm]	30
Dimension H2 (profiled rail systems) [mm]	15
Dimension H2 tolerance [mm]	±0.1
Dimension T3 (profiled rail systems) [mm]	6.8
Dimension T3 tolerance [mm]	-0.4
Footnote angle α Fmax	Bearing for trunnion for vertical load; if α F<sub>max</sub> is not complied with, a positive lock must be added
Angle α Fmax [°]	180
