Bosch Rexroth R349941200

BEARING EMC63/80 &

MPN: R349941200
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R349941200?

included in group 3, option 03; group 5, option 03

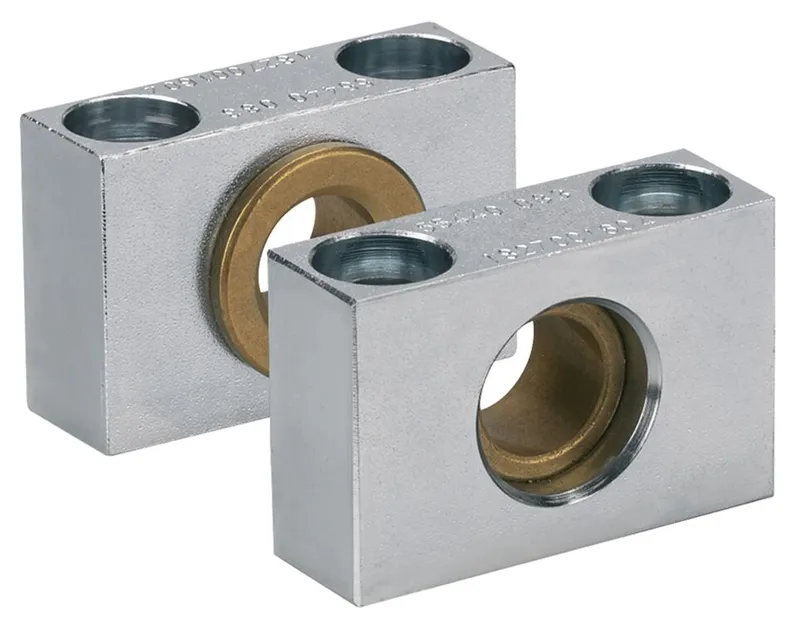

Material: Galvanized steel, with female connectors made of sintered bronze

Specifications

Fastening elements for electromechanical cylinders	Bearing for trunnion
Nominal size [mm]	63; 80
Weight [kg]	0.54
Surface finishing	galvanized
Material of electromechanical cylinders	Steel

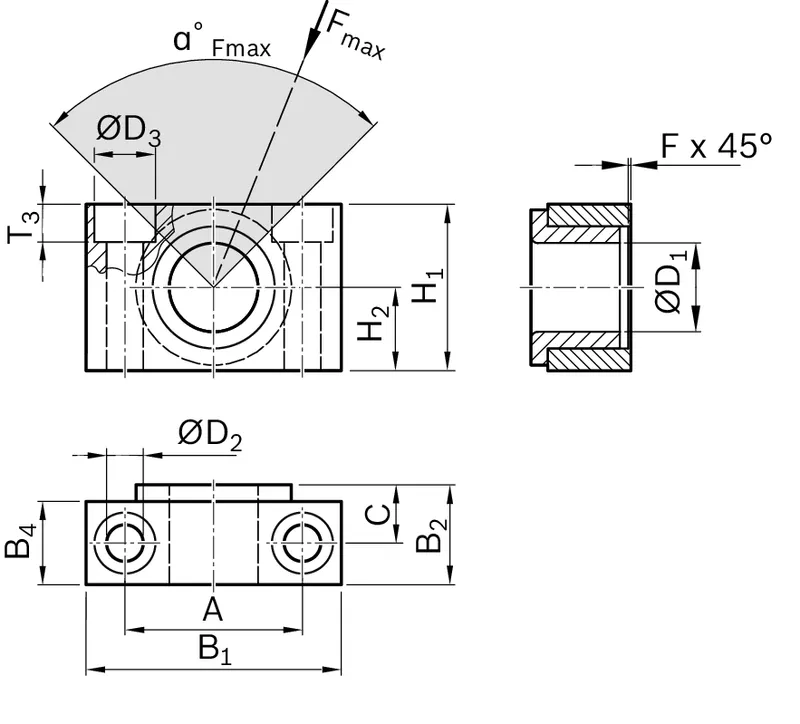

Dimension A (profiled rail systems) [mm]	42
Dimension A tolerance [mm]	±0.2
Dimension B1 f8 [mm]	65
Dimension B2 (profiled rail systems) [mm]	23
Dimension B4 [mm]	20
Dimension C [mm]	13
Dimension D1 H7 [mm]	20
Dimension D2 H12 [mm]	11
Dimension D3 H13 [mm]	18
Dimension F x 45° [mm]	1.6
Dimension H1 (profiled rail systems) [mm]	40
Dimension H2 (profiled rail systems) [mm]	20
Dimension H2 tolerance [mm]	±0.1
Dimension T3 (profiled rail systems) [mm]	11
Dimension T3 tolerance [mm]	-0.4
Footnote angle α Fmax	Bearing for trunnion for vertical load; if α F<sub>max</sub> is not complied with, a positive lock must be added
Height of guide rail H2 [mm]	20.0
Angle α Fmax [°]	110; 70
