Bosch Rexroth R349940500

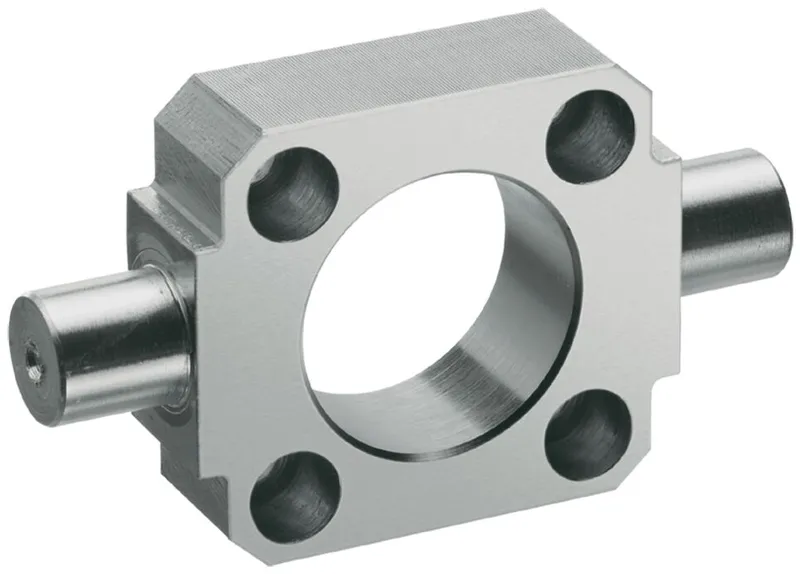

TRUNNION EMC50 &
- MPN
- R349940500
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R349940500?
Group 3, option 01
included in group 3, option 03
Material: Galvanized cast iron with spheroidal graphite
Specifications
Specifications
| Fastening elements for electromechanical cylinders | Trunnion |
| Nominal size [mm] | 50 |
| Weight [kg] | 0.51 |
| Surface finishing | galvanized |
| Material of electromechanical cylinders | Cast iron with spheroidal graphite |

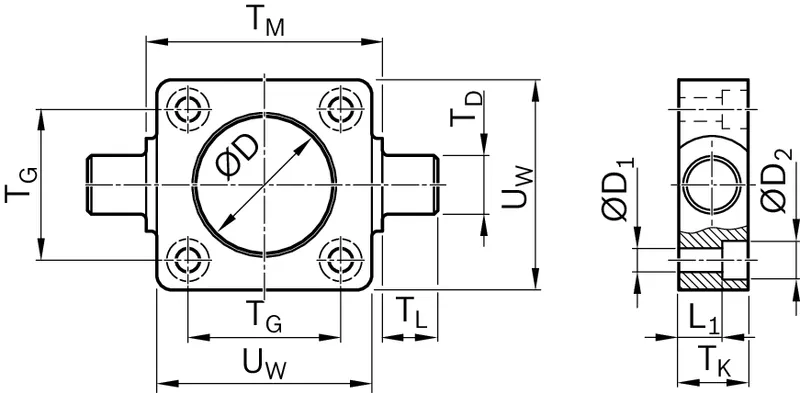

| Dimension D H11 [mm] | 40 |
| Dimension D1 [mm] | 9 |
| Dimension D2 [mm] | 15 |
| Dimension L1 [mm] | 10 |
| Dimension TD e9 [mm] | 16 |
| Dimension Tg [mm] | 46.5 |
| Dimension TG [mm] | 46.5 |
| Dimension TG tolerance [mm] | ±0.2 |
| Dimension Tk [mm] | 24 |
| Dimension TL h14 [mm] | 16 |
| Dimension TM h14 [mm] | 75 |
| Dimension UW [mm] | 65 |
R349940500: frequently asked questions
When can R349940500 be shipped?
R349940500 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R349940500 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R349940500 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R349940500, subject to availability and destination.
