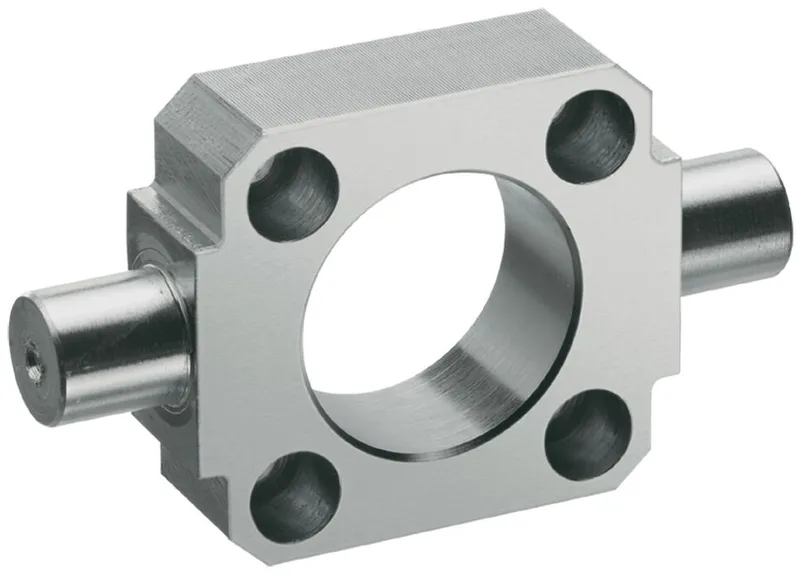

TRUNNION EMC32 &

Name: Bosch Rexroth R349940300 – TRUNNION EMC32 &
Brand: Bosch Rexroth
SKU: R349940300

MPN: R349940300 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Fastening elements for electromechanical cylinders
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R349940300 be shipped?

R349940300 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R349940300 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R349940300 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R349940300, subject to availability and destination.

Group 3, option 01

included in group 3, option 03

Material: Galvanized cast iron with spheroidal graphite

Specifications

Fastening elements for electromechanical cylinders	Trunnion
Nominal size [mm]	32
Weight [kg]	0.2
Surface finishing	galvanized
Material of electromechanical cylinders	Cast iron with spheroidal graphite

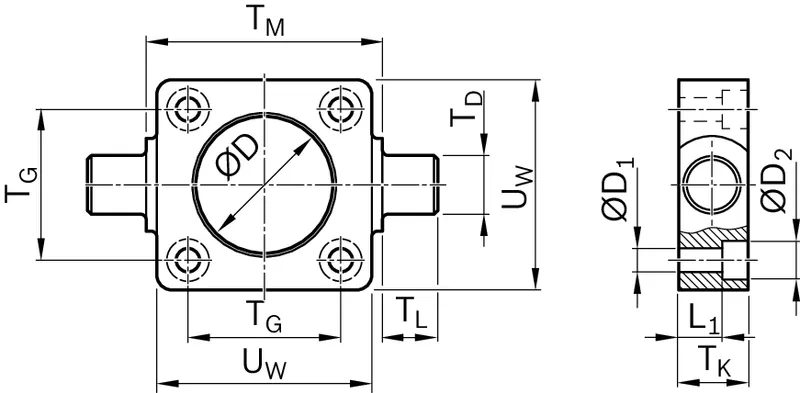

Dimension D H11 [mm]	30
Dimension D1 [mm]	6.6
Dimension D2 [mm]	11
Dimension L1 [mm]	7.5
Dimension TD e9 [mm]	12
Dimension Tg [mm]	32.5
Dimension TG [mm]	32.5
Dimension TG tolerance [mm]	±0.2
Dimension Tk [mm]	16
Dimension TL h14 [mm]	12
Dimension TM h14 [mm]	50
Dimension UW [mm]	48
