Bosch Rexroth R349939700

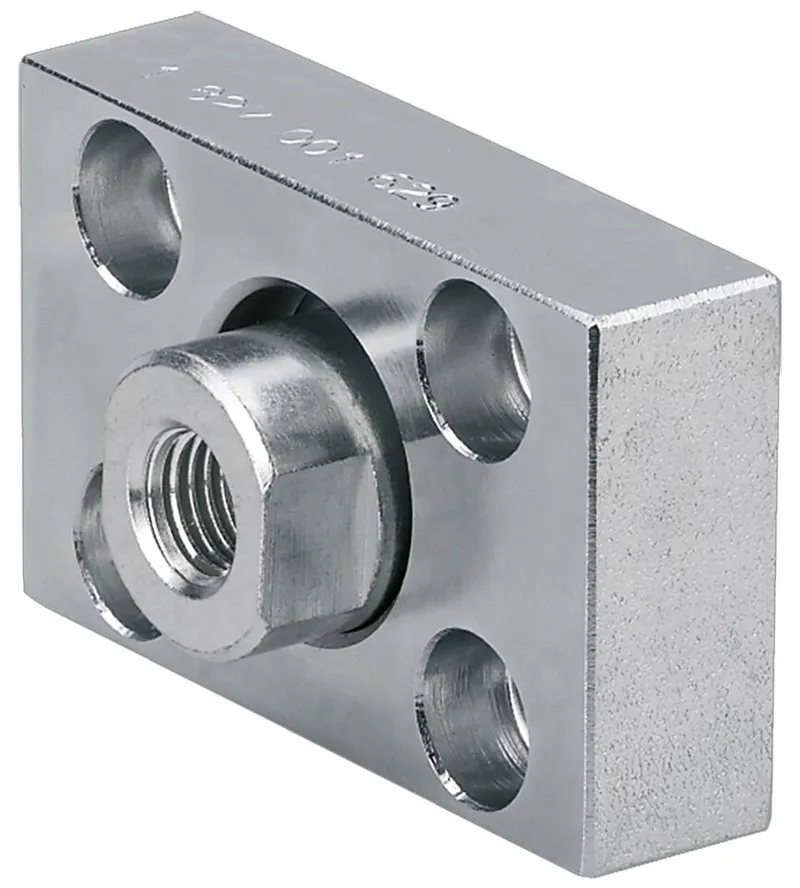

FLEXIBLE COUPLING EMC32 &

MPN: R349939700
Category: Fastening elements for electromechanical cylinders

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R349939700?

Group 2, option 03

Material: Galvanized steel

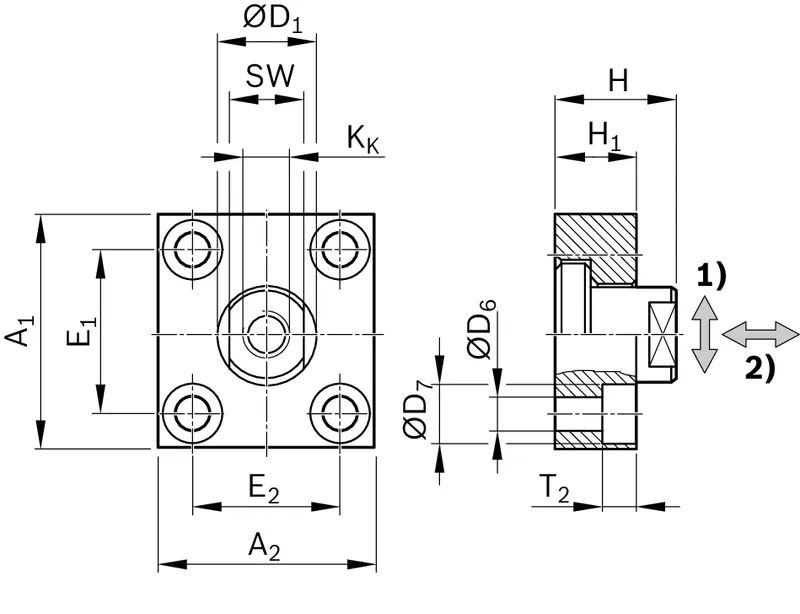

Specifications

Fastening elements for electromechanical cylinders	Flexible coupling
Nominal size [mm]	32
Weight [kg]	0.23
Footnote max. dynamic load	Fmax EMC
Surface finishing	galvanized
Material of electromechanical cylinders	Steel
Dimension A1 (profiled rail systems) [mm]	60
Dimension A2 (profiled rail systems) [mm]	37
Dimension axial clearance	0.4 mm ... 0.8 mm
Dimension of axial clearance max. [mm]	0.8
Dimension of axial clearance min. [mm]	0.4
Dimension D1 H11 [mm]	20
Dimension D6 H13 [mm]	6.6
Dimension D7 H13 [mm]	11
Dimension E1 [mm]	36
Dimension E1 tolerance [mm]	±0.15
Dimension E2 [mm]	23
Dimension E2 tolerance [mm]	±0.15
Dimension H [mm]	24.0
Dimension H1 (profiled rail systems) [mm]	15
Dimension KK	M10x1.25 mm
Dimension radial clearance	1.9 mm ... 2.3 mm
Dimension of radial clearance max. [mm]	2.3
Dimension of radial clearance min. [mm]	1.9
Dimension SW [mm]	17
Dimension T2 [mm]	7
