Bosch Rexroth R159501220

PILLOW BLOCK SES-F-Z 12

MPN: R159501220
Category: Accessories for ball screw assemblies

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R159501220?

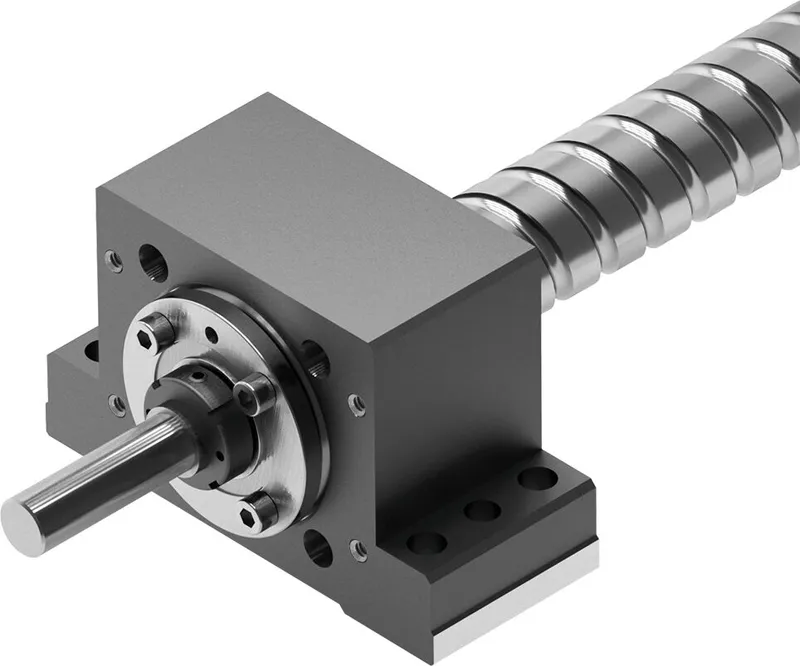

The pillow block unit consists of: Precision pillow block housing made of steel with reference edges on both sides, angular-contact thrust ball bearing LGF, slotted nut NMZ, suitable for screw ends type 81, 81A, 82, 82A

The pillow block unit consists of:

Precision pillow block housing made of steel with reference edges on both sides

Angular-contact thrust ball bearing LGF

Slotted nut NMZ

Suitable for screw end form 81, 81A, 82, 82A

Specifications

Nominal size [mm]	20x5/10/20/40
Type	Angular-contact thrust ball bearing
Tightening torque [Nm]	8
Dynamic load capacity C [N]	17000.0
Note: dynamic load capacity C	Load capacities (axial)
Weight [kg]	3.52
Limit speed nmin [min⁻¹]	3800
Static load capacity C0 [N]	24700.0
Note: static load capacity C0	Load capacities (axial)
Rigidity of the bearing (axial) RFB [N/μm]	375

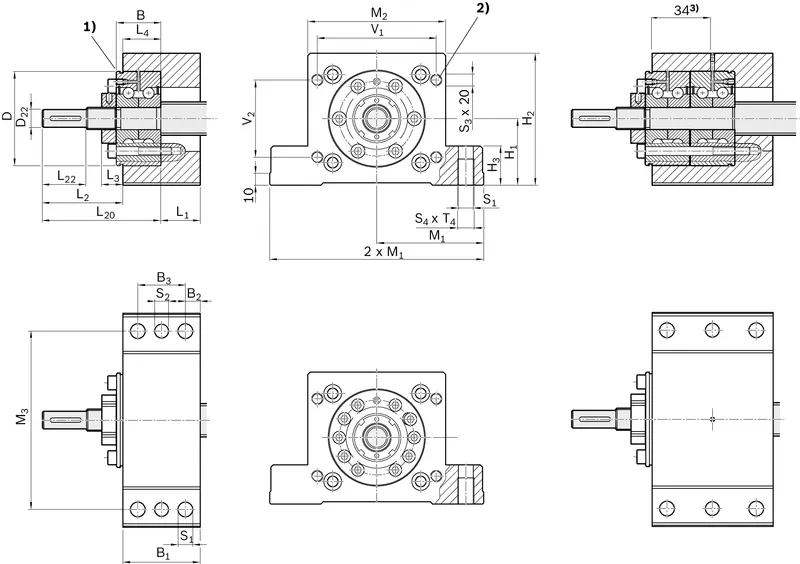

Dimension B (profiled rail systems) [mm]	25
Dimension B3 [mm]	40
Dimension D [mm]	55
Dimension d [mm]	12
Dimension H1 (profiled rail systems) [mm]	41
Dimension H3 [mm]	28
Dimension L1 [mm]	42
Dimension L2 [mm]	42
Dimension L3 [mm]	15
Dimension L4 [mm]	18
Dimension M1 [mm]	72.5
Dimension S2 [mm]	9.7
Dimension V1 [mm]	66
Dimension V2 [mm]	50
