Bosch Rexroth R159533020

PILLOW BLOCK SES-F-Z 30

MPN: R159533020
Category: Accessories for ball screw assemblies

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R159533020?

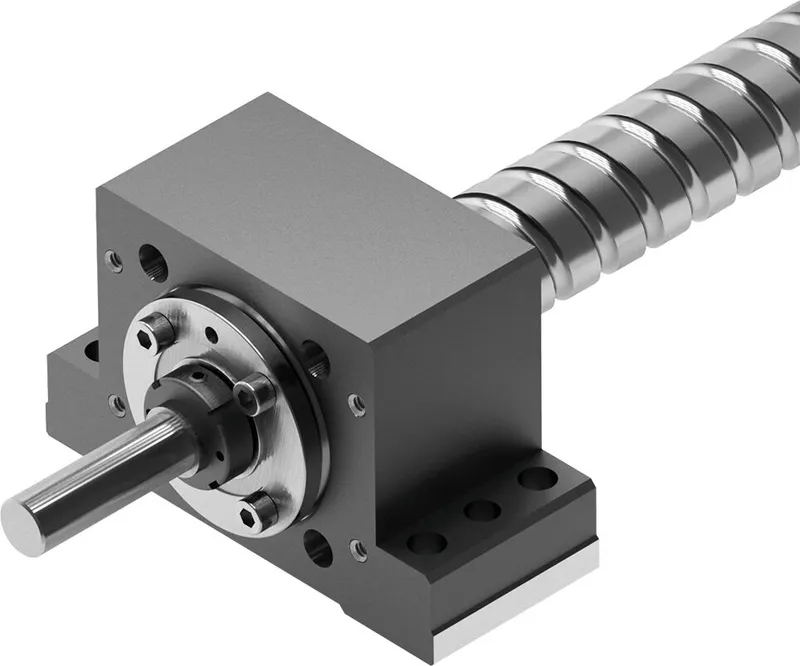

The pillow block unit consists of: Precision pillow block housing made of steel with reference edges on both sides, angular-contact thrust ball bearing LGF, slotted nut NMZ, suitable for screw ends type 81, 81A, 82, 82A

The pillow block unit consists of:

Precision pillow block housing made of steel with reference edges on both sides

Angular-contact thrust ball bearing LGF

Slotted nut NMZ

Suitable for screw end form 81, 81A, 82, 82A

Specifications

Nominal size [mm]	40x10/12/16/20/25/30/40
Type	Angular-contact thrust ball bearing
Tightening torque [Nm]	32
Dynamic load capacity C [N]	47500.0
Note: dynamic load capacity C	Load capacities (axial)
Weight [kg]	8.4
Limit speed nmin [min⁻¹]	2200
Static load capacity C0 [N]	127000.0
Note: static load capacity C0	Load capacities (axial)
Rigidity of the bearing (axial) RFB [N/μm]	1500

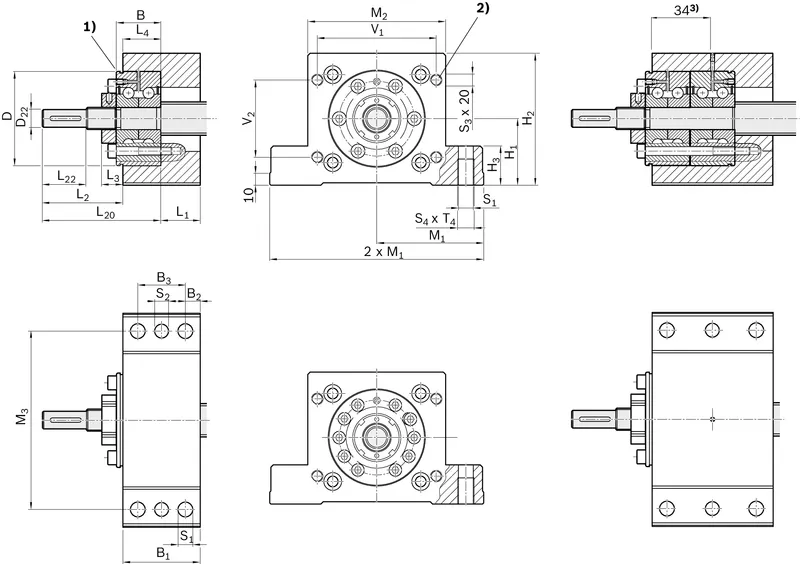

Dimension B (profiled rail systems) [mm]	56
Dimension B3 [mm]	60
Dimension D [mm]	80
Dimension d [mm]	30
Dimension H1 (profiled rail systems) [mm]	56
Dimension H3 [mm]	33
Dimension L1 [mm]	37
Dimension L2 [mm]	82
Dimension L3 [mm]	20
Dimension L4 [mm]	48
Dimension M1 [mm]	90
Dimension S2 [mm]	11.7
Dimension V1 [mm]	100
Dimension V2 [mm]	65
