Bosch Rexroth R159403000

PILLOW BLOCK SEC-F-Z 30

MPN: R159403000
Category: Accessories for ball screw assemblies

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R159403000?

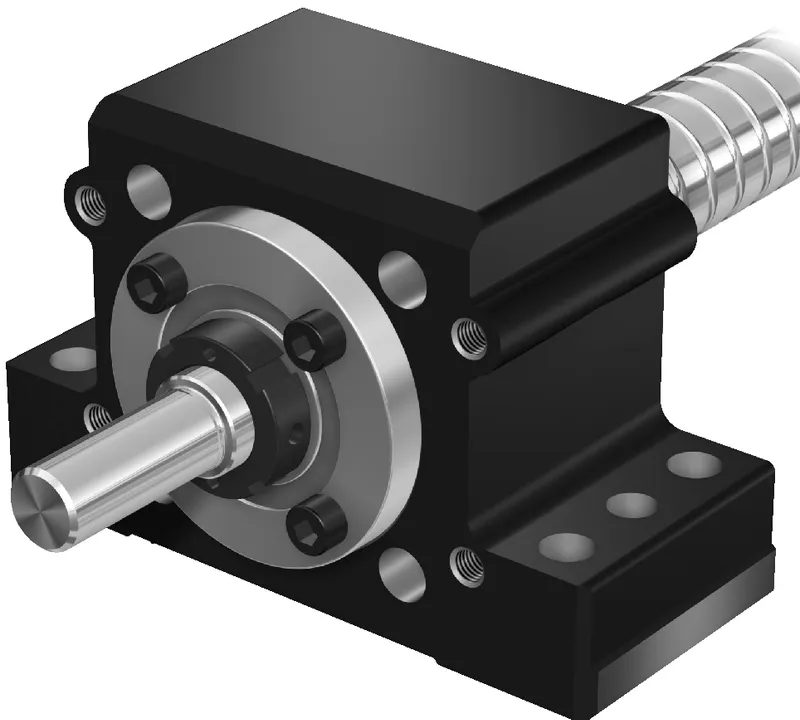

The pillow block unit consists of: Precision pillow block housing made of aluminum with reference edges on both sides, angular-contact thrust ball bearing LGF, slotted nut NMZ, suitable for screw ends type 81, 81A, 82, 82A

The pillow block unit consists of:

Precision pillow block housing made of aluminum with reference edges on both sides

Angular-contact thrust ball bearing LGF

Slotted nut NMZ

Suitable for screw end form 81, 81A, 82, 82A

Specifications

Nominal size [mm]	40x5/10/12/16/20/25/30/40
Type	Angular-contact thrust ball bearing
Tightening torque [Nm]	32
Dynamic load capacity C [N]	29000.0
Note: dynamic load capacity C	Load capacities (axial)
Weight [kg]	2.82
Limit speed nmin [min⁻¹]	2200
Static load capacity C0 [N]	64000.0
Note: static load capacity C0	Load capacities (axial)
Rigidity of the bearing (axial) RFB [N/μm]	850

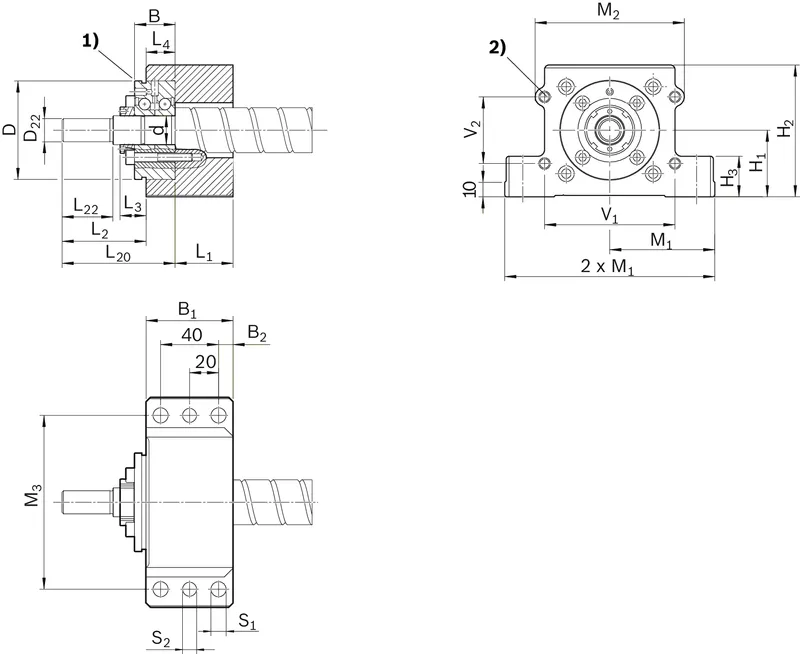

Dimension B (profiled rail systems) [mm]	28
Dimension D [mm]	80
Dimension d [mm]	30
Dimension H1 (profiled rail systems) [mm]	56
Dimension H3 [mm]	33
Dimension L1 [mm]	45
Dimension L2 [mm]	73
Dimension L3 [mm]	20
Dimension L4 [mm]	20
Dimension M1 [mm]	90
Dimension S2 [mm]	11.7
Dimension V1 [mm]	100
Dimension V2 [mm]	65
