Bosch Rexroth R159502020
PILLOW BLOCK SES-F-Z 20
- MPN
- R159502020
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R159502020?

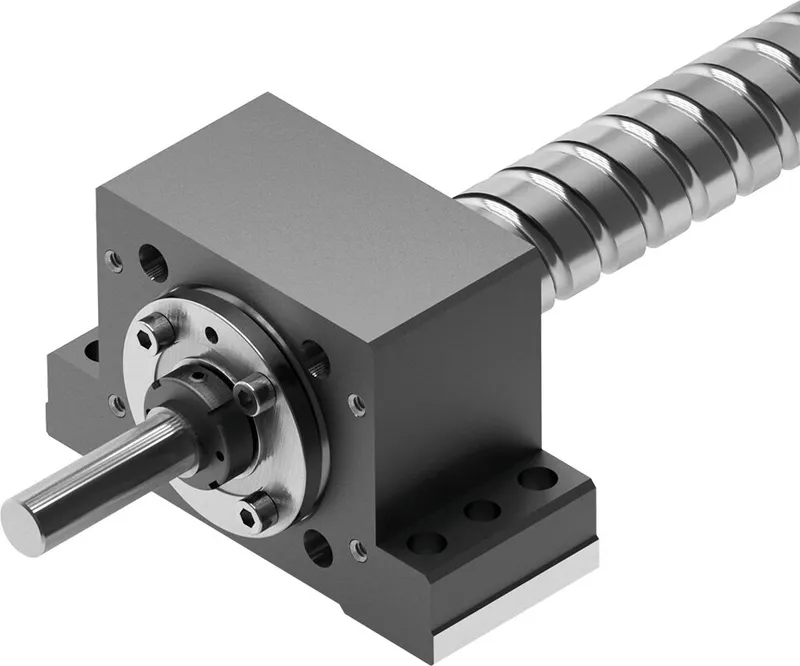

The pillow block unit consists of: Precision pillow block housing made of steel with reference edges on both sides, angular-contact thrust ball bearing LGF, slotted nut NMZ, suitable for screw ends type 81, 81A, 82, 82A
The pillow block unit consists of:
Precision pillow block housing made of steel with reference edges on both sides
Angular-contact thrust ball bearing LGF
Slotted nut NMZ
Suitable for screw end form 81, 81A, 82, 82A
Specifications
Specifications
| Nominal size [mm] | 32x5/10/20/32/64 |
| Type | Angular-contact thrust ball bearing |
| Tightening torque [Nm] | 18 |
| Dynamic load capacity C [N] | 26000.0 |
| Note: dynamic load capacity C | Load capacities (axial) |
| Weight [kg] | 4.42 |
| Limit speed nmin [min⁻¹] | 3000 |
| Static load capacity C0 [N] | 47000.0 |
| Note: static load capacity C0 | Load capacities (axial) |
| Rigidity of the bearing (axial) RFB [N/μm] | 650 |

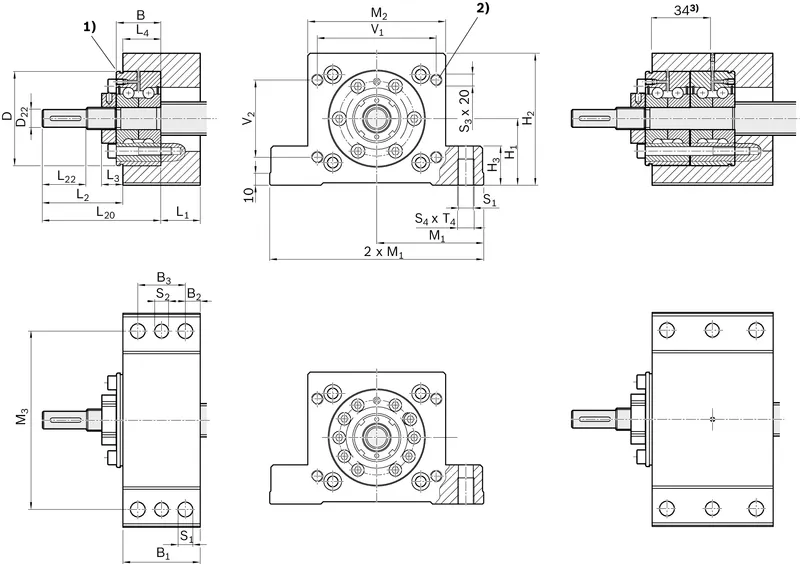

| Dimension B (profiled rail systems) [mm] | 28 |
| Dimension B3 [mm] | 40 |
| Dimension D [mm] | 68 |
| Dimension d [mm] | 20 |
| Dimension H1 (profiled rail systems) [mm] | 46 |
| Dimension H3 [mm] | 28 |
| Dimension L1 [mm] | 40 |
| Dimension L2 [mm] | 58 |
| Dimension L3 [mm] | 18 |
| Dimension L4 [mm] | 20 |
| Dimension M1 [mm] | 72.5 |
| Dimension S2 [mm] | 9.7 |
| Dimension V1 [mm] | 90 |
| Dimension V2 [mm] | 46 |
R159502020: frequently asked questions
When can R159502020 be shipped?
R159502020 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R159502020 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R159502020 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R159502020, subject to availability and destination.
