Bosch Rexroth R114006013

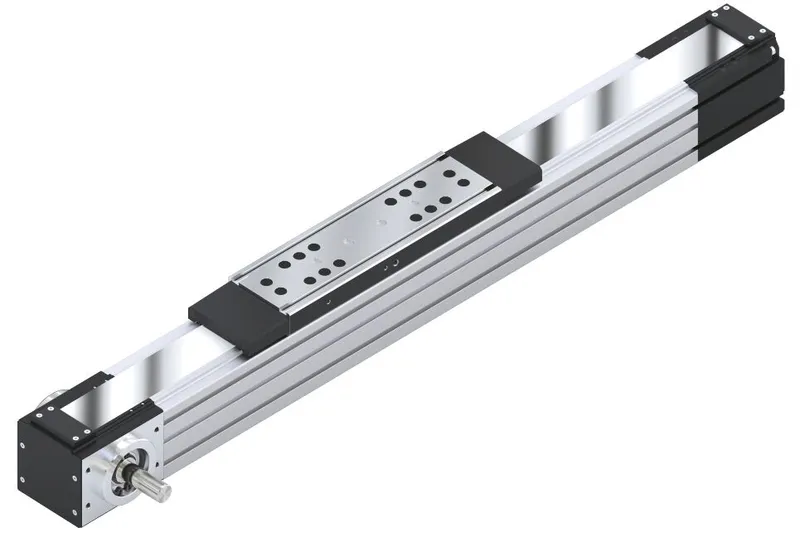

LINEAR MODULE MKR-065-NN-3

MPN
R114006013
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R114006013?

Linear modules MKR with ball rail systems and toothed belt drive, size 65, standard version

Linear modules with ball rail system and toothed belt drive

The integrated, backlash-free Rexroth rail guide system makes it possible for large masses to be moved at high speed thanks to high load capacities and optimal travel performance

High-performance toothed belt in the largest possible overall width for high drive torques with simultaneously high rigidity

Available in nine sizes in lengths up to 9800 mm

Repeatability of up to ± 0.05 mm

Installation elements are protected by a plastic strip with MKK/MKR-040/-065 or corrosion-resistant steel strip with MKK/MKR-080/-110/-140

Idler end enclosure: With integrated belt-tensioning system. The belt pulley system is equipped with lifetime lubricated ball bearings

The Rexroth ball rail system features one-point lubrication from both sides; central lubrication only suitable for grease lubrication with a manual grease gun

Individual lubrication versions for connection to central lubrication systems (only for product generation 3)

Fastening of superstructures on the carriage via T-slots or tapped holes

Ball guide rail with corrosion-resistant coating, corrosion-resistant steel ball runner block (only for product generation 3)

Absolute length measuring system IMS-A directly integrated into the guide system (for MKR-080, MKR-110 and MKR-140, product generation 3)

With planetary gears in different gear ratios and versions for optimum adaptation of the external load to the motor inertia.

Servo motor with multi-turn encoder, 1-cable or 2-cable connection, with or without holding brake

Magnetic field sensors can be mounted directly on the profile body without additional attachments (only for product generation 3)

Switch inductive or mechanical, cable duct, socket-plug and extension cable

Extensive accessories range of connection and clamping units and connecting shafts

Name plate with technical parameters for easy commissioning

Specifications

Specifications

Nominal size [mm]MKR-065-NN-3
Linear axes variantToothed belt drive
Maximum acceleration rate amax [m/s²]50.0
Maximum permissible linear speed vmax [m/s]5.0
Max. length Lmax [mm]5900.0
Dynamic load capacity, guideway Cgw [N]16020
Dynamic torsional moment load capacity Mt [Nm]154.0
Dynamic longitudinal moment load capacity ML [Nm]569.0
Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm]76
Maximum permissible dynamic torsional moment about the y-axis My max [Nm]280
Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm]280
Maximum dynamic load in y-direction Fy max [N]6600
Maximum dynamic load in z1-direction Fz1 max [N]7890
Maximum dynamic load in z2-direction Fz2 max [N]7890
Planar moment of inertia about the y-axis ly [cm⁴]76.4
Planar moment of inertia about the z-axis lz [cm⁴]93.7
Permissible ambient temperature with Rexroth servo motor (min. ... max.)0 °C ... 40 °C
Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.)Loss of performance at 40 °C or higher
Permissible ambient temperature mechanics (min. … max.)-10 °C ... 60 °C
Note: Permissible ambient temperature mechanics (min. … max.)No dropping below dew point
Weight [kg]0
