Bosch Rexroth R109955089

LINEAR-SET LSADR2T-50-WV-K

MPN
R109955089
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

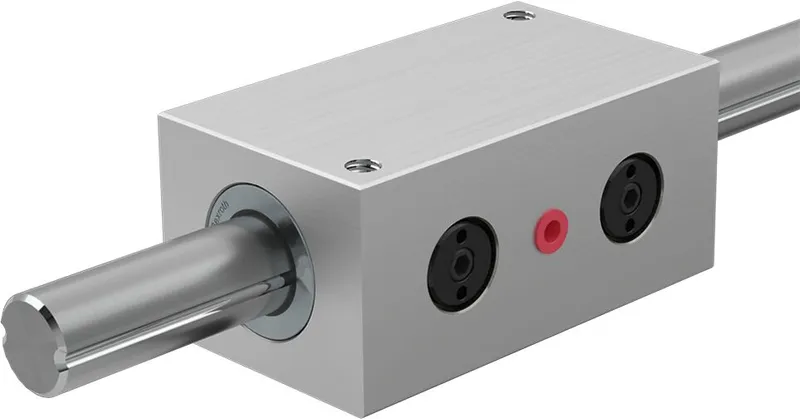

What is the Bosch Rexroth R109955089?

Linear set (aluminum)

2 torque-resistant LB, tandem

Ball guide grooves = 2

Shaft diameter d = 50

Shaft included

L = shaft length to specification (cut)

Without seal

Version: Standard

Lightweight precision tandem housing (aluminum)

Precision steel shaft with two ball guide grooves

Two torque-resistant linear bushings

Torque-transmitting, hardened steel bearing plates set to zero clearance ex works

Stability against cocking loads

External seals

Relubricatable

Specifications

Specifications

Shaft diameter d [mm]50.0
Format of linear bushingsT - Tandem
SeriesTorque
TypeLinear set
Dynamic load capacity C [N]15000.0
Note: dynamic load capacity CLoad capacity when both linear bushings are under equal load. The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]150.0
Maximum permissible linear speed vmax [m/s]3.0
Dynamic torsional moment load capacity Mt [Nm]272.0
Outer diameter D [mm]75.0
Mass m (kg/m) [kg/m]15.3
Permissible ambient temperature (min. ... max.)-10 °C ... +80 °C
Weight [kg]0
Static load capacity C0 [N]12940.0
Note: static load capacity C0Load capacity when both linear bushings are under equal load. The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Dimension B (profiled rail systems) [mm]130
Dimension D [mm]75
Dimension E1 [mm]194
Dimension E2 [mm]100
Dimension H [mm]50.0
Dimension H1 (profiled rail systems) [mm]105
Dimension L [mm]224

R109955089: frequently asked questions

When can R109955089 be shipped?

R109955089 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R109955089 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R109955089 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R109955089, subject to availability and destination.
