Linear modules Parts
Compare Linear modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal size [mm] | Dynamic longitudinal moment load capacity ML [Nm] | Maximum permissible dynamic torsional moment about the y-axis My max [Nm] | Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm] | Planar moment of inertia about the y-axis ly [cm⁴] |
|---|---|---|---|---|---|
| R114826013 | MLR-110 | 1121.0 | 302 | 302 | 499 |
| R114816013 | MLR-080 | 316.0 | 158 | 158 | 158 |
| R114036000 | MKR-165-NN-2 | 5130.0 | 1281 | 2528 | 2479 |
| R114620013 | MKR-145-NN-3 | 17630.0 | 6300 | 7200 | 3549 |
| R114046013 | MKR-140-NN-3 | 4151.0 | 1414 | 2044 | 1485 |
| R114026013 | MKR-110-NN-3 | 2790.0 | 1373 | 1373 | 498 |
| R114016013 | MKR-080-NN-3 | 2470.0 | 1217 | 1164 | 149 |
| R114006013 | MKR-065-NN-3 | 569.0 | 280 | 280 | 76.4 |
| R114066013 | MKR-040-NN-3 | 129.5 | 65 | 65 | 10.53 |
| R116036000 | MKK-165-NN-2 | 5130.0 | 1266 | 2538 | 2479 |
| R116046013 | MKK-140-NN-3 | 3190.0 | 1088 | 1572 | 1500 |
| R116026013 | MKK-110-NN-3 | 2235.0 | 1100 | 1100 | 510 |
| R116016013 | MKK-080-NN-3 | 1843.0 | 908 | 908 | 182 |
| R116006013 | MKK-065-NN-3 | 533.0 | 262 | 213 | 79.4 |

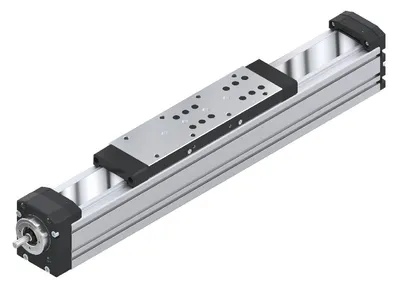

| R116066013 | MKK-040-NN-3 | 105.0 | 53 | 53 | 11.74 |
Common to all listed parts
| Maximum acceleration rate amax [m/s²] | 50.0 |
| Permissible ambient temperature with Rexroth servo motor (min. ... max.) | 0 °C ... 40 °C |
| Permissible ambient temperature mechanics (min. … max.) | -10 °C ... 60 °C |
| Note: Permissible ambient temperature mechanics (min. … max.) | No dropping below dew point |
| Weight [kg] | 0 |
