Bosch Rexroth R114036000

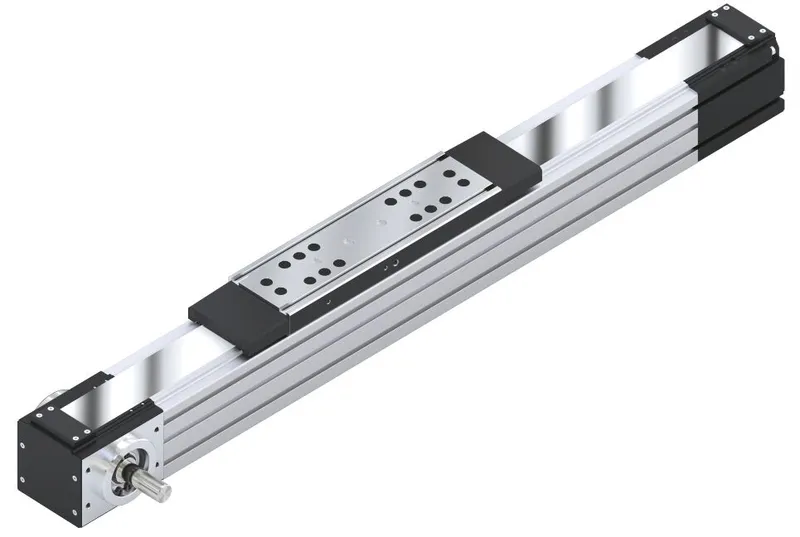

LINEAR MODULE MKR-165-NN-2
- MPN
- R114036000
- Category
- Linear modules
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Bosch Rexroth R114036000?
Linear modules MKR with ball rail systems and toothed belt drive, size 165, standard version
Linear modules with ball rail system and toothed belt drive
The integrated, backlash-free Rexroth rail guide system makes it possible for large masses to be moved at high speed thanks to high load capacities and optimal travel performance
High-performance toothed belt in the largest possible overall width for high drive torques with simultaneously high rigidity
Available in nine sizes in lengths up to 9800 mm
Repeatability of up to ± 0.05 mm
Installation elements are protected by a plastic strip with MKK/MKR-040/-065 or corrosion-resistant steel strip with MKK/MKR-080/-110/-140
Idler end enclosure: With integrated belt-tensioning system. The belt pulley system is equipped with lifetime lubricated ball bearings
The Rexroth ball rail system features one-point lubrication from both sides; central lubrication only suitable for grease lubrication with a manual grease gun
Individual lubrication versions for connection to central lubrication systems (only for product generation 3)
Fastening of superstructures on the carriage via T-slots or tapped holes
Ball guide rail with corrosion-resistant coating, corrosion-resistant steel ball runner block (only for product generation 3)
Absolute length measuring system IMS-A directly integrated into the guide system (for MKR-080, MKR-110 and MKR-140, product generation 3)
With planetary gears in different gear ratios and versions for optimum adaptation of the external load to the motor inertia.
Servo motor with multi-turn encoder, 1-cable or 2-cable connection, with or without holding brake
Magnetic field sensors can be mounted directly on the profile body without additional attachments (only for product generation 3)
Switch inductive or mechanical, cable duct, socket-plug and extension cable
Extensive accessories range of connection and clamping units and connecting shafts
Name plate with technical parameters for easy commissioning
Specifications
Specifications
| Nominal size [mm] | MKR-165-NN-2 |
| Linear axes variant | Toothed belt drive |
| Maximum acceleration rate amax [m/s²] | 50.0 |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Max. length Lmax [mm] | 12000.0 |
| Dynamic load capacity, guideway Cgw [N] | 84100 |
| Dynamic torsional moment load capacity Mt [Nm] | 1800.0 |
| Dynamic longitudinal moment load capacity ML [Nm] | 5130.0 |
| Maximum permissible dynamic torsional moment about the x-axis Mx max [Nm] | 340 |
| Maximum permissible dynamic torsional moment about the y-axis My max [Nm] | 1281 |
| Maximum permissible dynamic torsional moment about the z-axis Mz max [Nm] | 2528 |
| Maximum dynamic load in y-direction Fy max [N] | 41440 |
| Maximum dynamic load in z1-direction Fz1 max [N] | 41440 |
| Maximum dynamic load in z2-direction Fz2 max [N] | 21000 |
| Planar moment of inertia about the y-axis ly [cm⁴] | 2479 |
| Planar moment of inertia about the z-axis lz [cm⁴] | 3540 |
| Permissible ambient temperature with Rexroth servo motor (min. ... max.) | 0 °C ... 40 °C |
| Note: Permissible ambient temperature with Rexroth servo motor (min. ... max.) | Loss of performance at 40 °C or higher |
| Permissible ambient temperature mechanics (min. … max.) | -10 °C ... 60 °C |
| Note: Permissible ambient temperature mechanics (min. … max.) | No dropping below dew point |
| Weight [kg] | 0 |
No matching specifications
R114036000: frequently asked questions
When can R114036000 be shipped?
R114036000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R114036000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R114036000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R114036000, subject to availability and destination.
