Bosch Rexroth R105605000

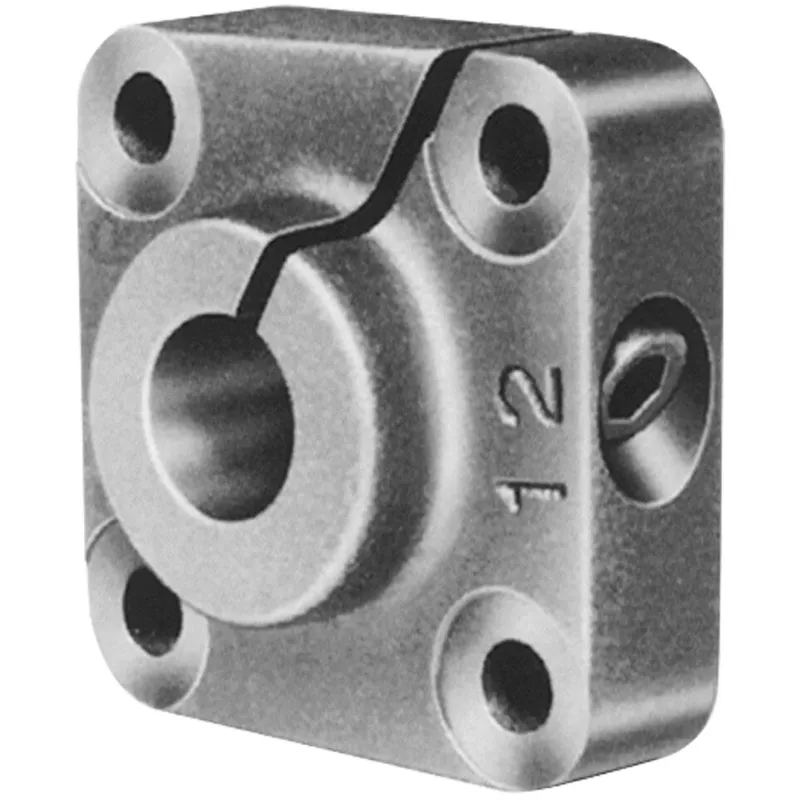

SHAFT SUPPORT BLOCK WBG-50F

MPN: R105605000
Category: Shaft support blocks

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R105605000?

Shaft support block (lamellar graphite cast iron)

Shaft diameter d = 50

Flange

Material: Gray cast iron

Compared to installing the shafts in customer-made bores, shaft support blocks with flange allow the shafts to be aligned and prevent the linear bushings from overloading due to shafts that are not parallel

Side clamping screw

For easy installing and quick aligning

Precise design with reference edge

More affordable than in-house designs

Specifications

Accessories for linear bushings	Shaft support blocks
Shaft diameter d [mm]	50.0
Type	Shaft support block
Housing material	Cast iron = G
Weight [kg]	2.4

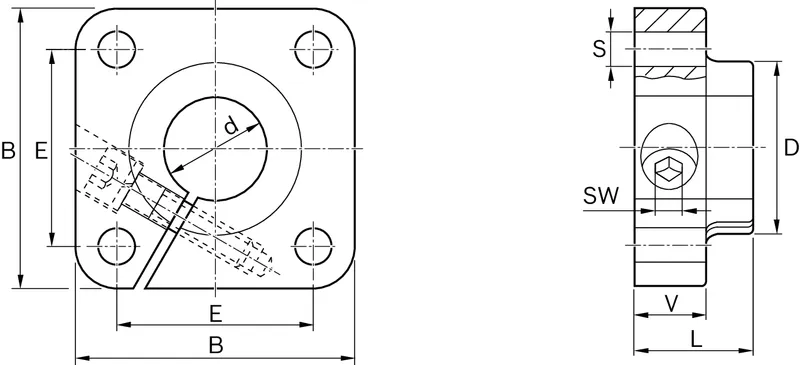

Dimension B (profiled rail systems) [mm]	106
Dimension D [mm]	75
Dimension d H7 [mm]	50
Dimension E [mm]	75
Dimension L [mm]	50
Dimension S H13 [mm]	11
Dimension SW [mm]	8
Dimension V [mm]	36
Footnote Dimension L	Tolerance ISO 8062-3 - DCTG 9.

R105605000: frequently asked questions

When can R105605000 be shipped?

R105605000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R105605000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R105605000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R105605000, subject to availability and destination.
