SHAFT SUPPORT BLOCK WBA-10-FO
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Shaft support blocks |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R105701000 be shipped?
R105701000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R105701000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R105701000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R105701000, subject to availability and destination.

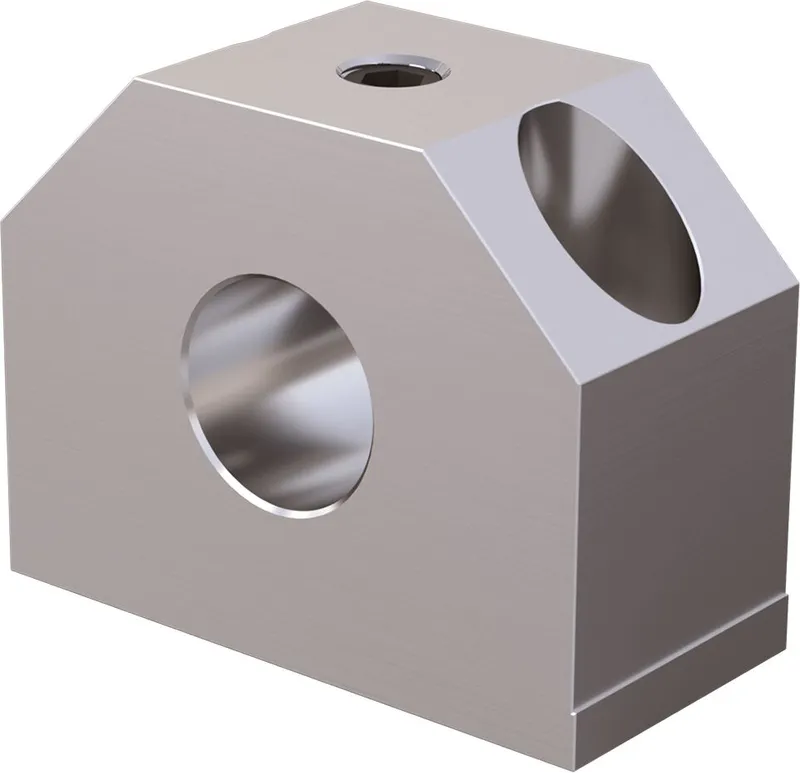

Shaft support block (aluminum)
Shaft diameter d = 10
Top securing
Material: Aluminum
Rigid shaft mounting due to extra-wide design
Topside clamping for better accessibility
Better security thanks to clamping screw with larger thread diameter
Thread for fastening from below
Drill hole for fastening from above
Reference edge for easy alignment
For easy installing and quick aligning
Precise design with reference edge
More affordable than in-house designs
Specifications
Specifications
| Accessories for linear bushings | Shaft support blocks |
| Shaft diameter d [mm] | 10.0 |
| Type | Shaft support block |
| Tightening torque [Nm] | 3.8 |
| Housing material | Aluminum = A |
| Weight [kg] | 0.06 |

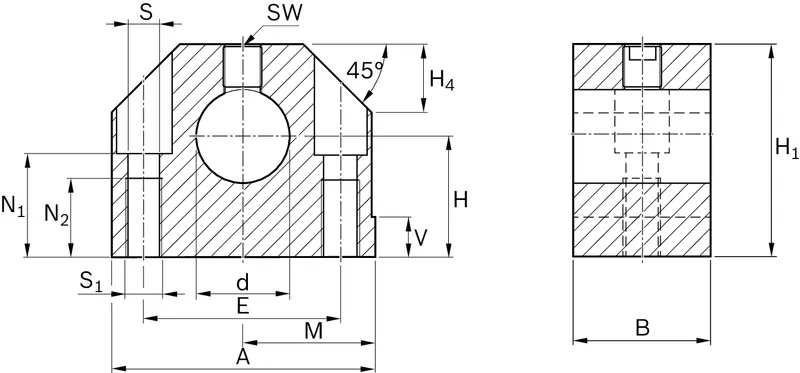

| Dimension A (profiled rail systems) [mm] | 40 |
| Dimension B (profiled rail systems) [mm] | 20 |
| Dimension d H8 [mm] | 10 |
| Dimension E [mm] | 27 |
| Dimension H [mm] | 18.0 |
| Dimension H1 (profiled rail systems) [mm] | 31 |
| Dimension H4 [mm] | 10 |
| Dimension M [mm] | 20 |
| Dimension N1 (profiled rail systems) [mm] | 14 |
| Dimension N2 (profiled rail systems) [mm] | 13 |
| Dimension S [mm] | 5.3 |
| Dimension SW [mm] | 2.5 |
| Dimension V [mm] | 5 |
