Bosch Rexroth R105602000

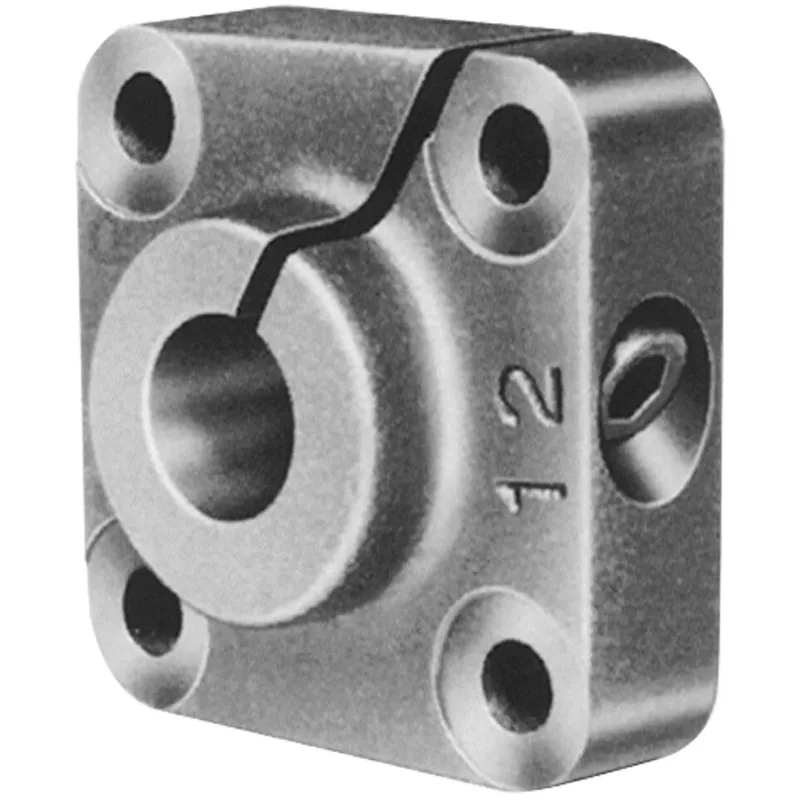

SHAFT SUPPORT BLOCK WBG-20F

MPN: R105602000
Category: Shaft support blocks

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R105602000?

Shaft support block (lamellar graphite cast iron)

Shaft diameter d = 20

Flange

Material: Gray cast iron

Compared to installing the shafts in customer-made bores, shaft support blocks with flange allow the shafts to be aligned and prevent the linear bushings from overloading due to shafts that are not parallel

Side clamping screw

For easy installing and quick aligning

Precise design with reference edge

More affordable than in-house designs

Specifications

Accessories for linear bushings	Shaft support blocks
Shaft diameter d [mm]	20.0
Type	Shaft support block
Housing material	Cast iron = G
Weight [kg]	0.27

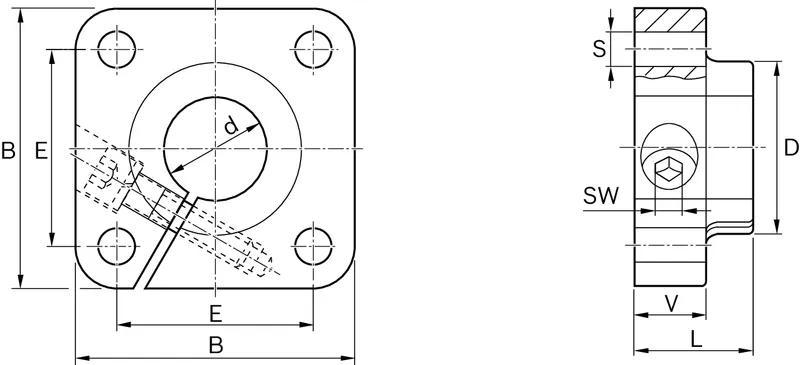

Dimension B (profiled rail systems) [mm]	54
Dimension D [mm]	33.5
Dimension d H7 [mm]	20
Dimension E [mm]	38
Dimension L [mm]	23
Dimension S H13 [mm]	6.6
Dimension SW [mm]	4
Dimension V [mm]	14
Footnote Dimension L	Tolerance ISO 8062-3 - DCTG 9.
