Bosch Rexroth R105603000

SHAFT SUPPORT BLOCK WBG-30F

MPN: R105603000
Category: Shaft support blocks

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

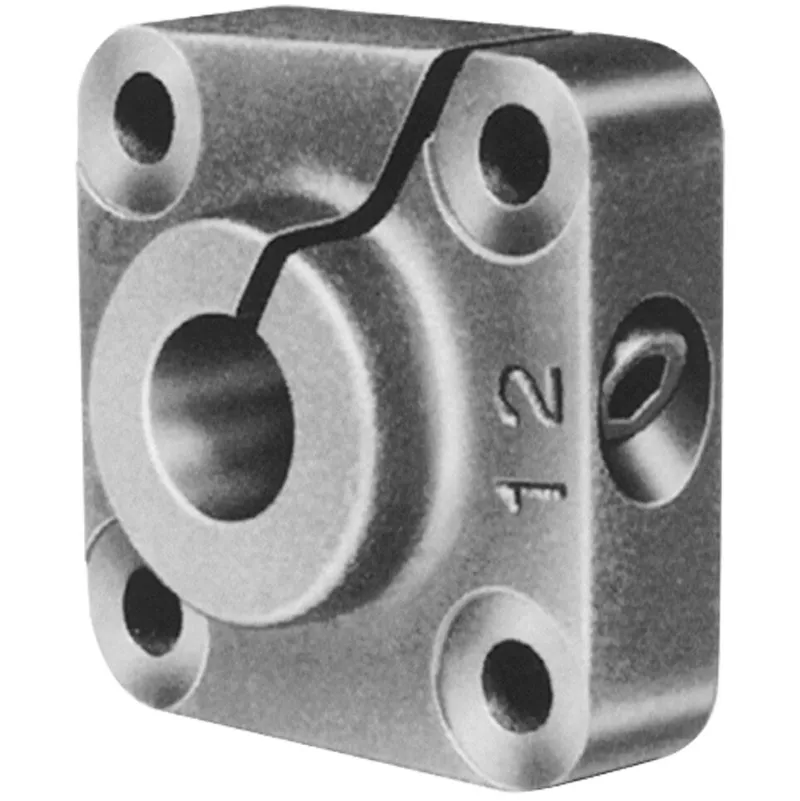

What is the Bosch Rexroth R105603000?

Shaft support block (lamellar graphite cast iron)

Shaft diameter d = 30

Flange

Material: Gray cast iron

Compared to installing the shafts in customer-made bores, shaft support blocks with flange allow the shafts to be aligned and prevent the linear bushings from overloading due to shafts that are not parallel

Side clamping screw

For easy installing and quick aligning

Precise design with reference edge

More affordable than in-house designs

Specifications

Accessories for linear bushings	Shaft support blocks
Shaft diameter d [mm]	30.0
Type	Shaft support block
Housing material	Cast iron = G
Weight [kg]	0.73

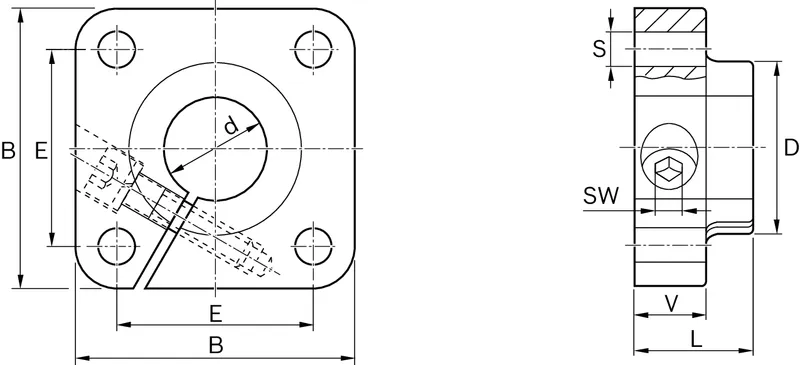

Dimension B (profiled rail systems) [mm]	76
Dimension D [mm]	49.5
Dimension d H7 [mm]	30
Dimension E [mm]	54
Dimension L [mm]	30
Dimension S H13 [mm]	9
Dimension SW [mm]	6
Dimension V [mm]	19
Footnote Dimension L	Tolerance ISO 8062-3 - DCTG 9.
