Bosch Rexroth R105503000

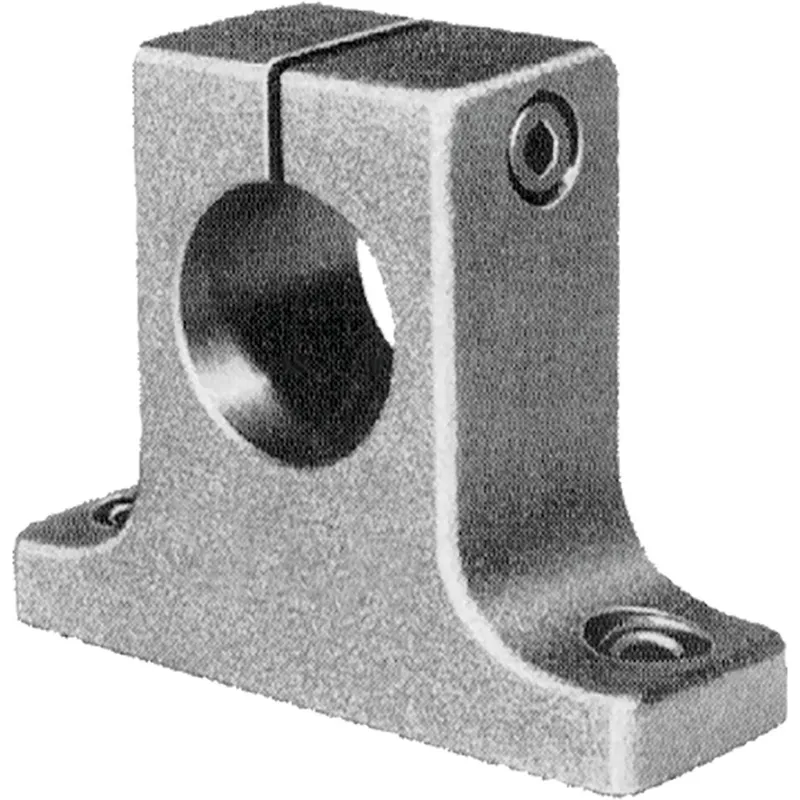

SHAFT SUPPORT BLOCK WBS-30
- MPN
- R105503000
- Category
- Shaft support blocks
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R105503000?
Shaft support block (steel)
Shaft diameter d = 30
Material: Spheroidal graphite cast iron and steel
Side clamping
For easy installing and quick aligning
Precise design with reference edge
More affordable than in-house designs
Specifications
Specifications
| Accessories for linear bushings | Shaft support blocks |
| Shaft diameter d [mm] | 30.0 |
| Type | Shaft support block |
| Housing material | Spheroidal graphite cast iron and steel |
| Weight [kg] | 0.59 |

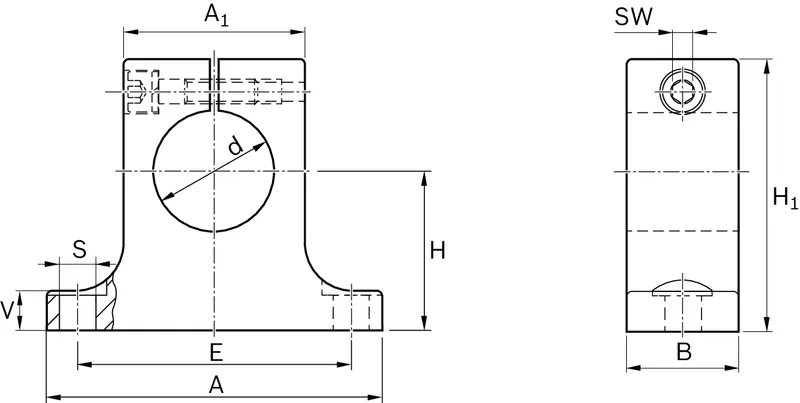

| Dimension A (profiled rail systems) [mm] | 84 |
| Dimension A1 (profiled rail systems) [mm] | 45 |
| Dimension B (profiled rail systems) [mm] | 28 |
| Dimension d H8 [mm] | 30 |
| Dimension E [mm] | 68 |
| Dimension H [mm] | 40.0 |
| Dimension H1 (profiled rail systems) [mm] | 68 |
| Dimension S [mm] | 9 |
| Dimension SW [mm] | 5 |
| Dimension V [mm] | 10 |
| Footnote Dimension H1 | Tolerance ISO 8062-3 - DCTG 11. |
