What is the Bosch Rexroth 3842998905?

Linear section LS 2

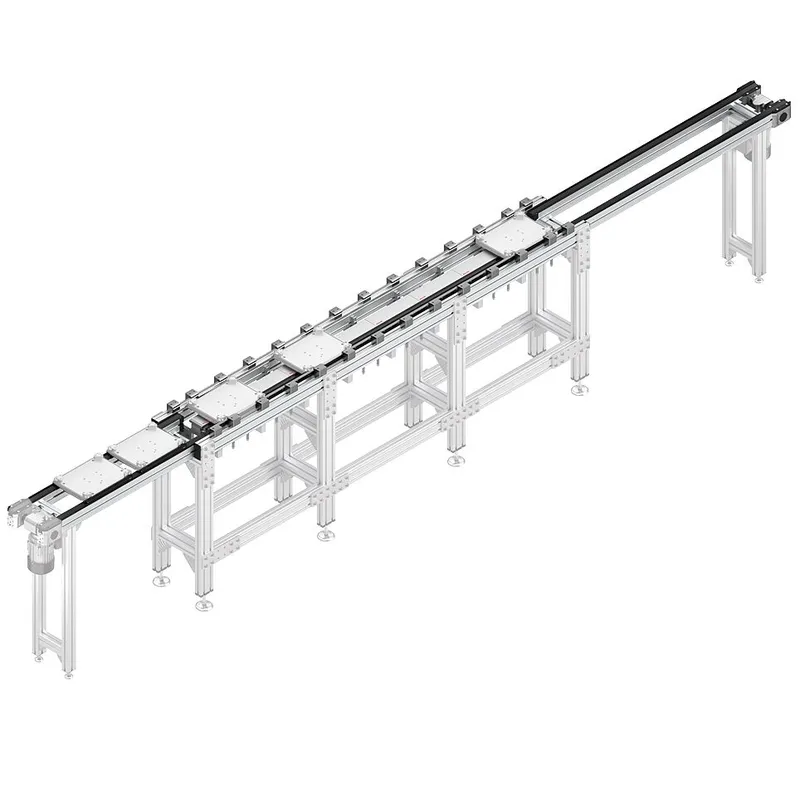

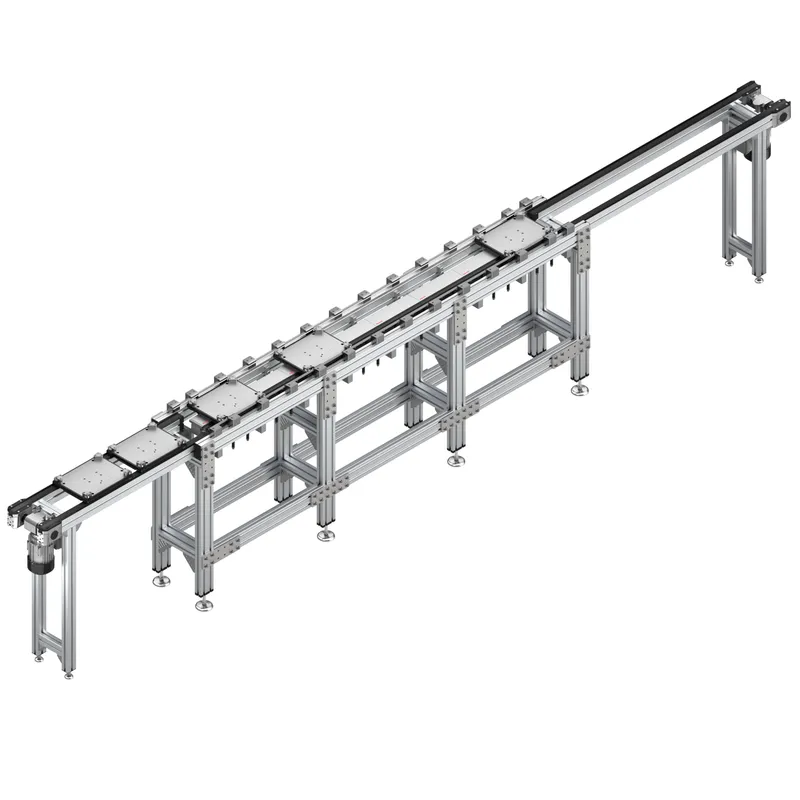

The linear section LS 2 is a high-speed section driven by linear motors, fully assembled including guides for workpiece pallets WT 2/LS

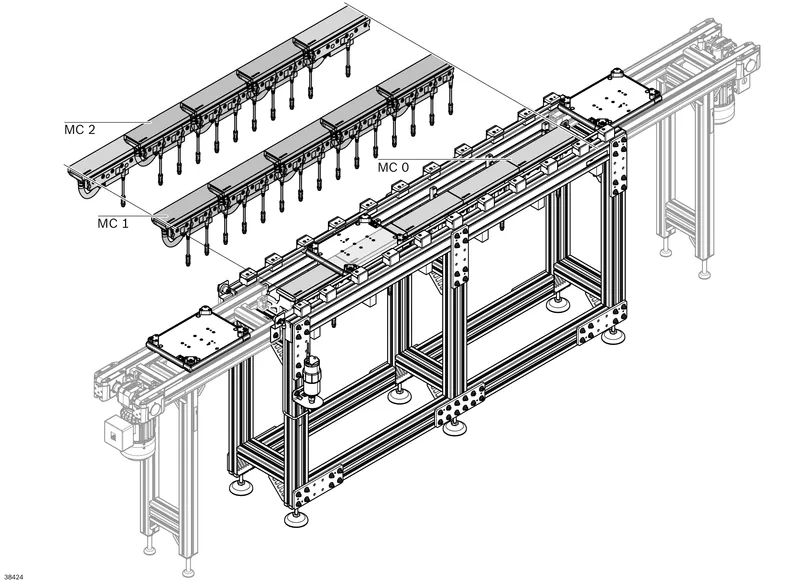

For the design of a hybrid system by integrating the section LS 2 driven by linear motors in layouts of TS 2plus systems

Fast WT changeover times and thus reduced cycle times

Positioning without additional indexing

Transition to linear motor range "on the fly"

Impact-free stopping for gentle transport of sensitive products

Independent control of the WT 2/LS workpiece pallets with various motion profiles, also reversing

Specifications

Condition on delivery	Assembled

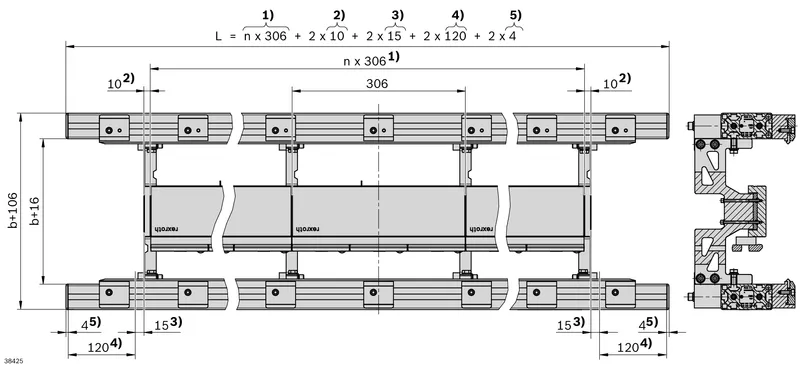

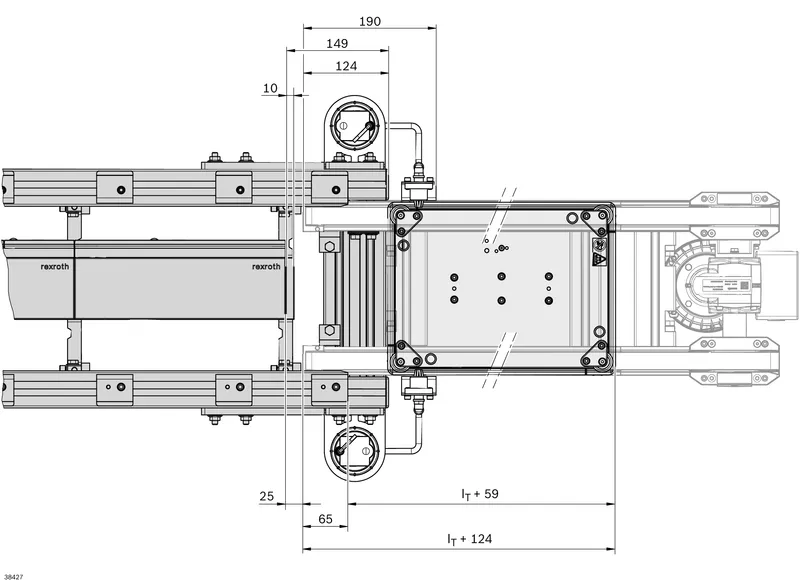

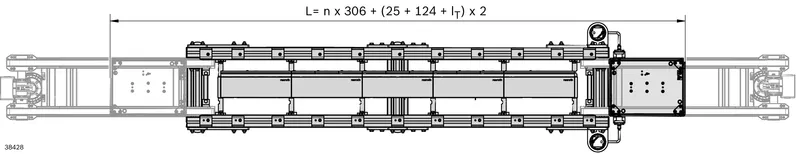

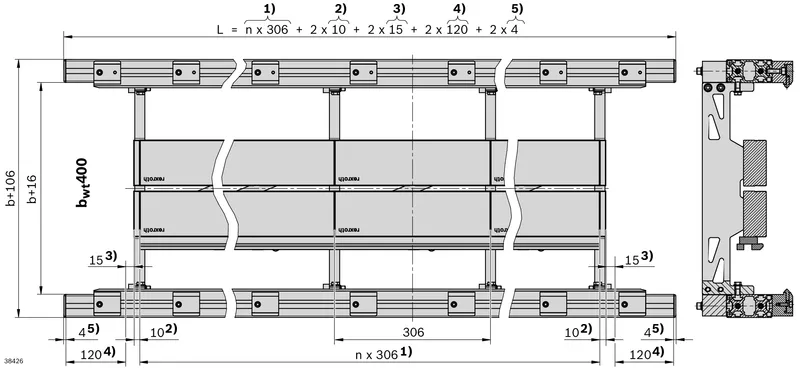

Length in direction of transport [lT] [mm]	160; 240; 320; 400; 480; 640

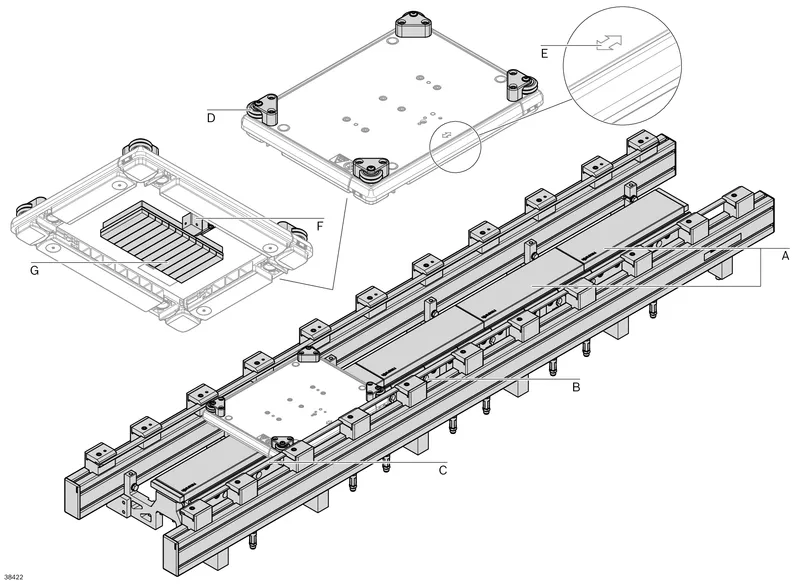

Scope of delivery	Conveyor section LS 2: – Guide with fastening elements (<b>C</b>) – Holder for linear motor – Linear motor (<b>A</b>) – Measuring system (<b>B</b>)

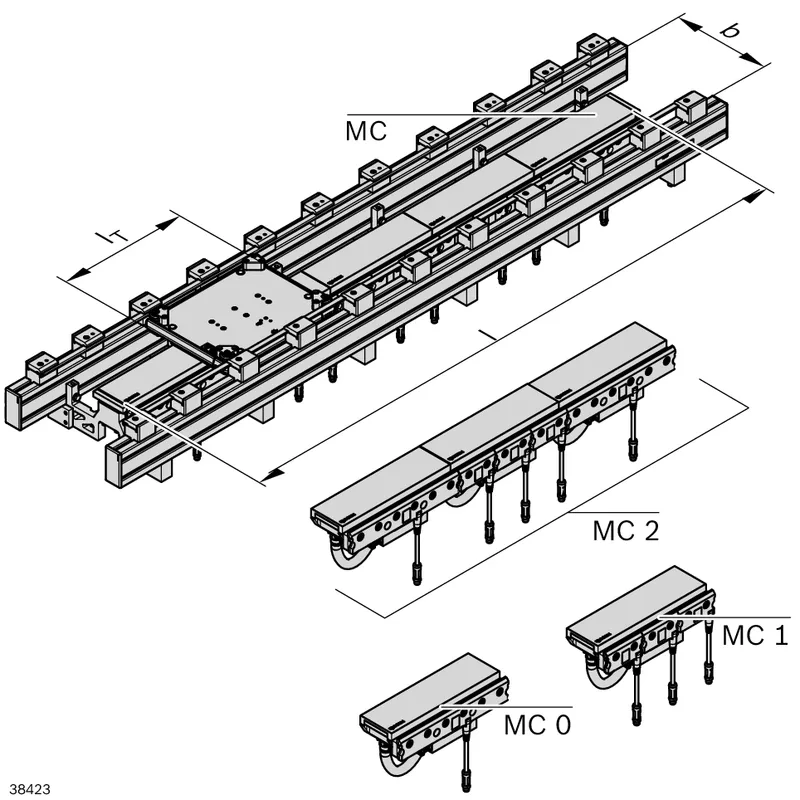

Notice	MC = 2 = mixed equipment = motor 306-3 and 306-1; Other lengths upon request; Specification of the desired motor type per position
Preferred values [mm]	160; 240; 320; 400
Required accessories	Motor cable; Sensor cable; Workpiece pallet WT 2/LS
Recommended accessories	2x lubrication unit LU 2/LS, 2x grease cartridge LC 2/LS; Adjustment set BS 2 ‒ LS 2; Adjustment set LS 2; Leg set SZ 2/LS END/MID; Longitudinal connector LV 2
Weight [kg]	0
