Bosch Rexroth 3842998762

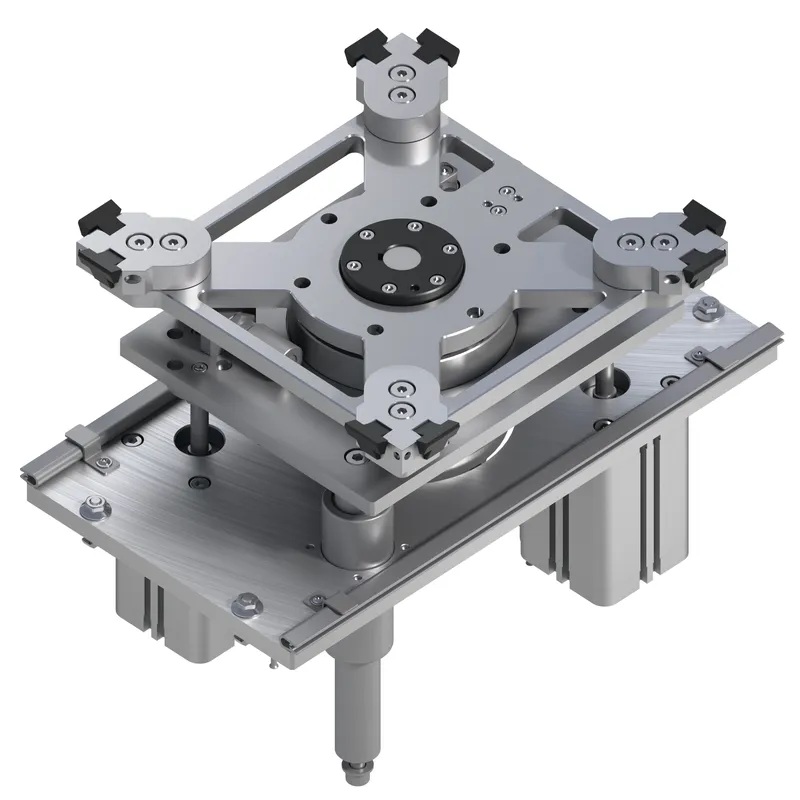

LIFT-ROTATE UNIT HD 2/H SIZE3

MPN: 3842998762
Category: Lift rotary unit HD 2/H

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998762?

HD 2/H BG3 lift rotate unit

WT lift above transportation level, approx. 50 mm

Available in 3 sizes (BG) for WT total weights up to 240 kg

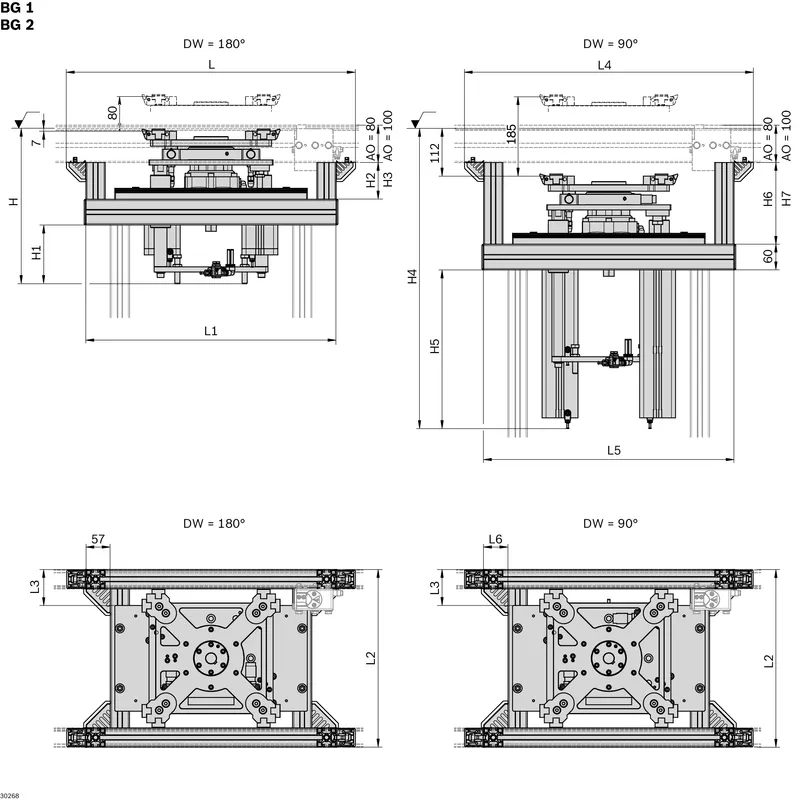

– BG 1 and BG 2 for use with workpiece pallets WT 2, WT 2/F and WT 2/LS (only with version LS)

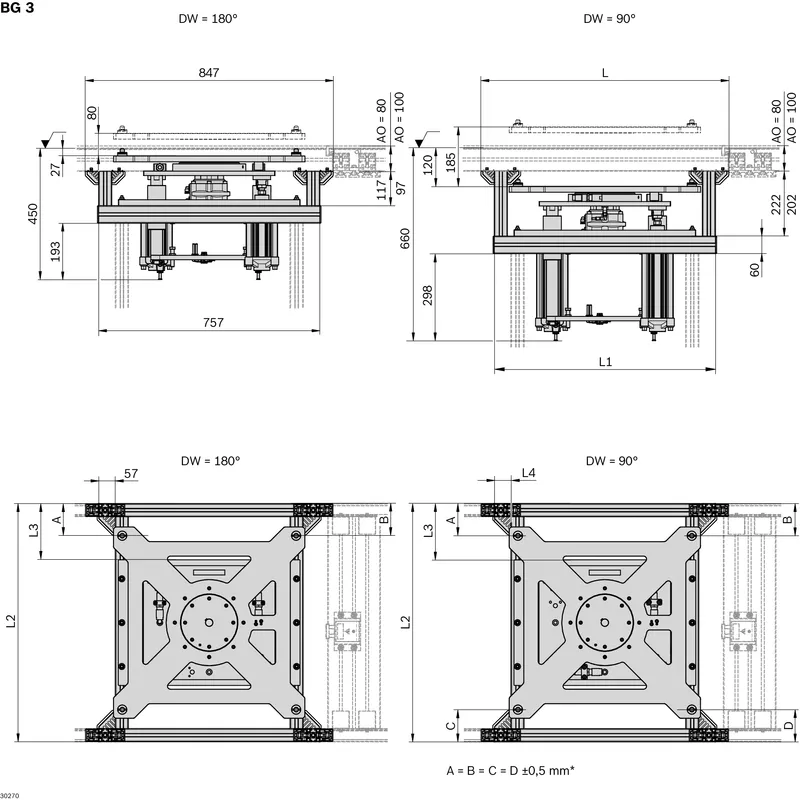

– BG 3 for use with workpiece pallets WT 2/H and WT 2/F-H

Rotation by 90° or 180°

– For rotating square workpiece pallets by 90° or 180°

– For rotating non-square workpiece pallets by 180°

– For 90° rotation, the reverse rotation for BG 1 and BG 2 takes place below the belt. Reduced cycle times by means of reverse rotation during workpiece pallet change. For BG 3 and 90° rotation, the reverse rotation takes place above the belt

– Center position only with BG 1 and BG 2 in 90° version

Specifications

ESD	Yes
Workpiece pallet total weight [mG] [kg]	240
Lift of WT over conveyor medium [h0]	50
Length in direction of transport [lT] [mm]	1040; 1200; 800
Scope of delivery	2x damper for end positions of the rotary movement; Incl. fastening material for assembly on conveyor sections; Pneumatic elements such as fittings, throttle non-return valves, etc. for the top/center/bottom lift positions
Delivery information	Fully assembled
Notice	For use with WT 2/H and WT 2/F-H workpiece pallets only; Only possible for DW = 90° quadratic workpiece pallets
Workpiece pallet width [bWT] [mm]	1040; 1200; 800
Required accessories	Cylinder switch (0830100433) for the top/center/bottom lift positions; Protective housings; Sensor for the rotary movement at 0°/180° or 0°/90°; Supports for BG 2 from 50 kg; Supports for BG 3 generally
Recommended accessories	VE 2 stop gate or VE 2/D stop gate for damped stopping of a workpiece pallet
Weight [kg]	0
