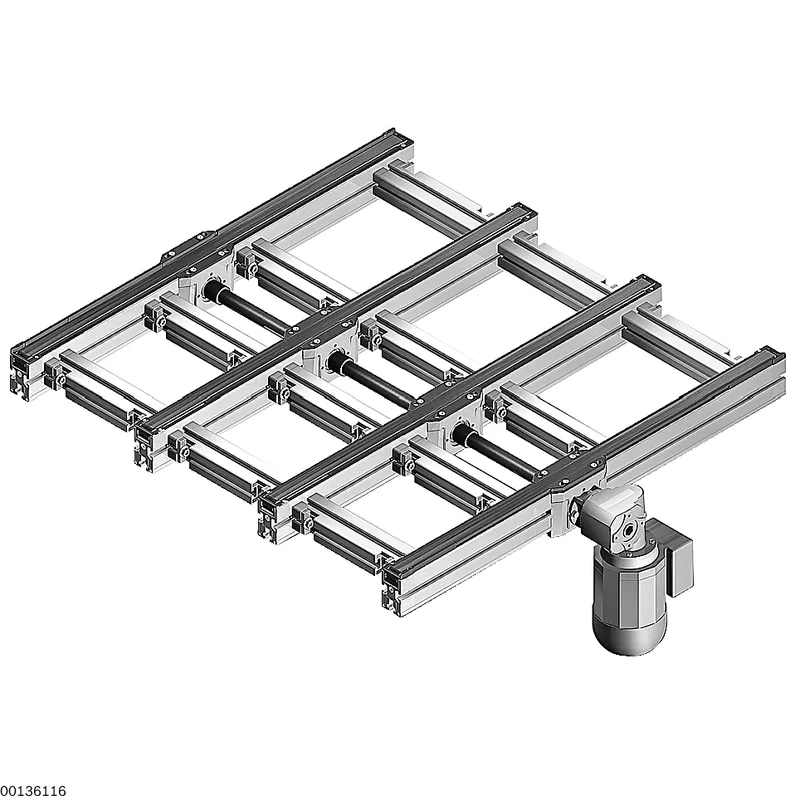

BELT SECTION CSS/FM-3

Name: BELT SECTION CSS/FM-3
Brand: Bosch Rexroth
SKU: 3842998653

MPN: 3842998653 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Belt section CSS/FM
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842998653 be shipped?

3842998653 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842998653 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842998653 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842998653, subject to availability and destination.

Belt section CSS/FM-3 Conveyor medium with high friction coefficient allows high acceleration and deceleration Mounting position of the motor central Same system dimensions as CSS/B Longitudinal conveyor for glass modules of various dimensions Use for installation situations in which there is no space for the motor at the ends of the belt section Not intended for accumulation operation The position of the motor can be freely selected in the longitudinal direction (l1) Version otherwise the same as CSS/F

Specifications

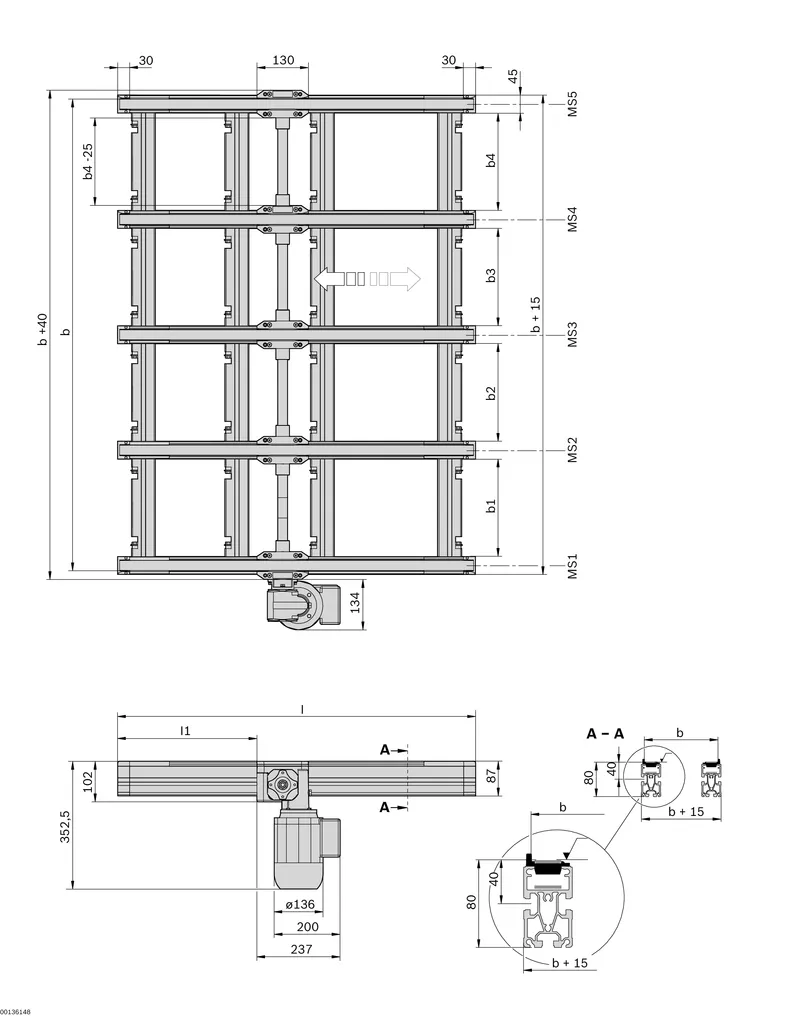

Length max [l max] [mm]	450
Length min [L min] [mm]	6000
Track width in direction of transport [b max] [mm]	3000
Track width in direction of transport [b min] [mm]	290
Section load in accumulation operation [kg]	120
Nominal speed [vN]	0 m/min, U = 0; 0 m/min, U = 0, f = 0, ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 21 m/min; 36 m/min; 6 m/min; 9 m/min; f = 50/60 Hz: ohne Motor, mit Getriebe (wenn technisch sinnvoll)
Delivery information	Motor included separately; b ≤ 2000 mm: Assembled<br/>b > 2000 mm: Partially assembled
Notice	Distance dimension with the highest index is determined; bx<sub>min</sub> = 165 mm for motor mounting between the tracks
Length min [l1] [mm]	160
Length max [l1] [mm]	l-290
Track width [b2 min] [mm]	85
Track width [b2 max] [mm]	1000
Recommended accessories	Frame SFS; Frequency converter FU; Leg set SZS/B
Weight [kg]	0
