Bosch Rexroth 3842998644

BELT SECTION CSS/F-4

MPN: 3842998644
Category: Belt section CSS/F

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998644?

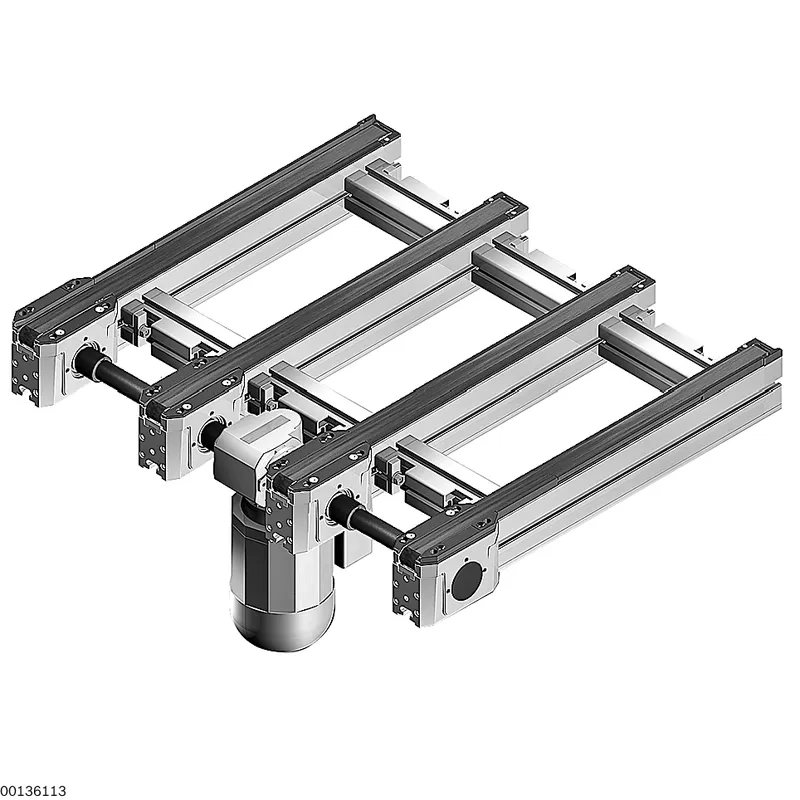

Belt section CSS/F-4

Conveyor medium with high friction coefficient allows high acceleration and deceleration

No slipping of the modules on the belt section

Same system dimensions as CSS/B

Longitudinal conveyor for glass modules of various dimensions

Not intended for accumulation operation

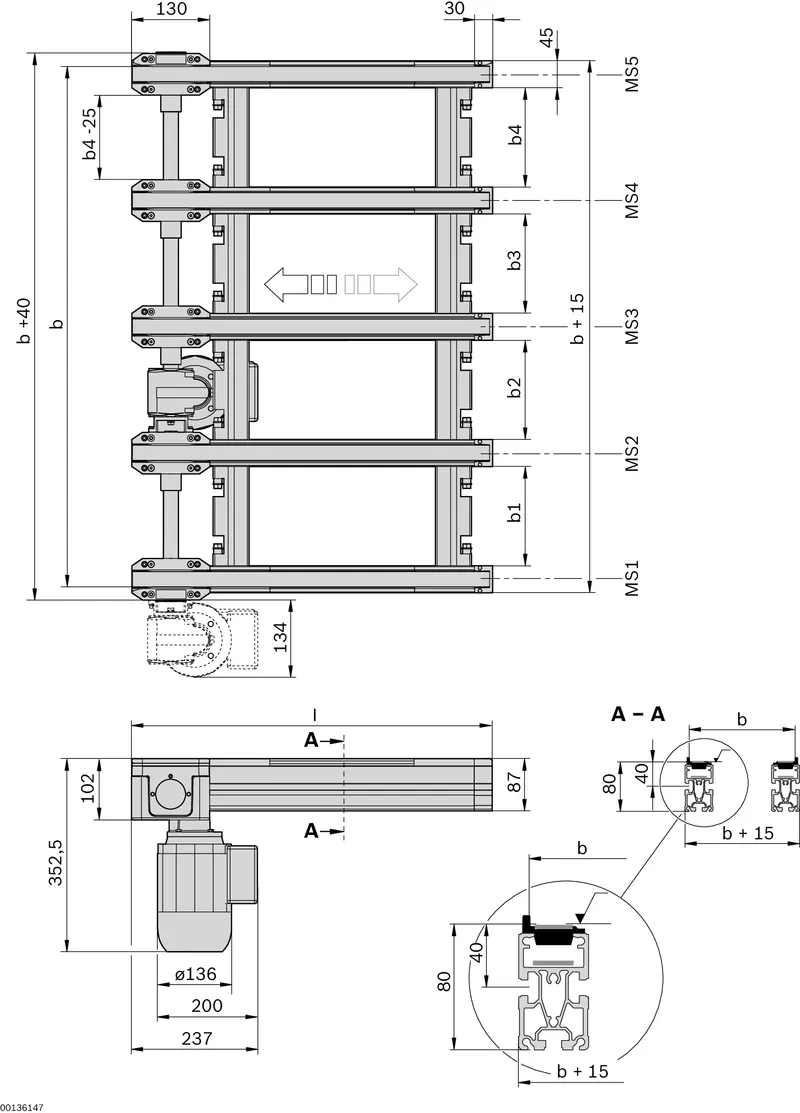

Belt section consisting of two to five tracks for secure support of the glass modules across the entire width. Distance between the tracks can be determined individually (b1 to b4). Comply with minimum dimensions

Permissible load:

‒ Per track: max. 0.15 kg/cm support surface length and max. 40 kg

‒ Per belt section: max. 120 kg

Suitable for reversible operation (up to 3000 mm)

Textile toothed belt with PU coating for high friction coefficients and improved static friction when starting and accelerating

Simple exchange of the toothed belts by dismantling from above without realignment

Gear motors are suitable for operation with frequency converter

Motor mounting on right (MA = R) or left (MA = L) possible on each track of the belt section (MS = 1 ... 5; MS = 1 denotes the left track in the direction of transport). When mounting the motor between the tracks, observe a minimum distance of 165 mm (b1 to b4)

Motor mounting outside: suspended or lying down;

Motor mounting between the tracks: suspended

Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K)

Version with lateral guide (FP = 1) preferably for fully framed glass modules; version without lateral guide (FP = 0) preferably for unprocessed glass modules with rough edges

Suitable for use in cleanroom environments up to cleanroom class 6 in accordance with ISO 14644-1

Specifications

Length max [l max] [mm]	290
Length min [L min] [mm]	6000
Track width in direction of transport [b max] [mm]	3000
Track width in direction of transport [b min] [mm]	160
Section load in accumulation operation [kg]	120
Nominal speed [vN]	0 m/min, U = 0; 0 m/min, U = 0, f = 0, ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 21 m/min; 36 m/min; 6 m/min; 9 m/min; f = 50/60 Hz: ohne Motor, mit Getriebe (wenn technisch sinnvoll)
Delivery information	Motor included separately; b ≤ 2000 mm: Assembled<br/>b > 2000 mm: Partially assembled
Track width [b2 min] [mm]	85
Track width [b2 max] [mm]	1000
Track width [b3 min] [mm]	85
Track width [b4 min] [mm]	85
Track width [b3 max] [mm]	1000
Track width [b4 max] [mm]	1000
Notice	bx<sub>min</sub> = 165 mm for motor mounting between the tracks
Track width [b1 min] [mm]	85
Track width [b1 max] [mm]	1000
Recommended accessories	Frames SFS; Frequency converter FU; Leg set SZS/B
Weight [kg]	0
