Bosch Rexroth 3842998672

LIFT TRANSFER UNIT LTS/B-2

MPN: 3842998672
Category: Lift transverse units TS 2pv

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998672?

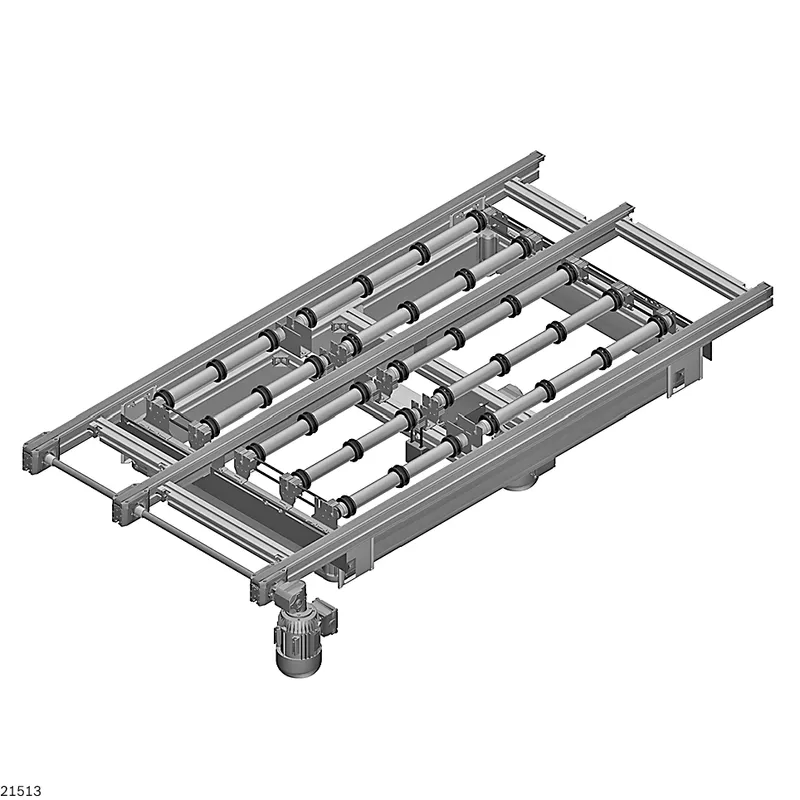

Lift transverse unit LTS/B-2

Lift transverse unit LTS/…, consisting of a belt section CSS/… and a lift unit for setting up right-angled section branches

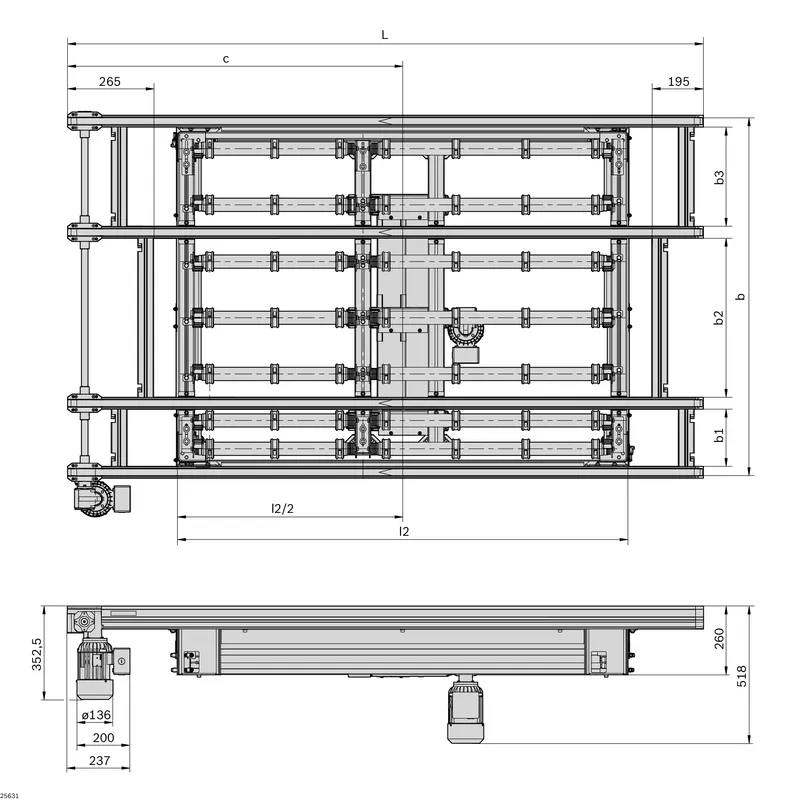

Version with two to four tracks. Distance between the tracks can be determined individually (b1 to b3). Comply with minimum dimensions

Permissible load:

‒ Per track: max. 0.15 kg/cm support surface length and

max. 40 kg for LTS/F,

max. 60 kg for LTS/B

‒ Per belt section: max. 120 kg

O-rings for high friction coefficients and improved static friction for transverse conveyor

Tracks without lateral guide

Reversible across the entire value range

Simple exchange of the toothed belts

Gear motors are suitable for operation with frequency converter

Motor mounting on right (MA = R) or left (MA = L) possible on each track of the belt section (MS = 1 ... 4; MS = 1 denotes the left track in the direction of transport)

Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K)

Two lift positions

Specifications

Track width in direction of transport [b max] [mm]	675
Track width in direction of transport [b min] [mm]	450
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 21 m/min; 36 m/min; 6 m/min; 9 m/min
Tracks	2
Length [l]	1264 ... 6000 mm if BG = 1; 1564 ... 6000 mm if BG = 2; 1864 ... 6000 mm if BG = 3; 2230 ... 6000 mm if BG = 4; 2530 ... 6000 mm if BG = 5
Delivery information	Fully assembled; Motors included separately
Track width [b1 min] [mm]	375
Track width [b1 max] [mm]	600
Required accessories	Leg set SZS/B
Weight [kg]	0
