Bosch Rexroth 3842998655

BELT SECTION CSS/FM-5

MPN: 3842998655
Category: Belt section CSS/FM

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998655?

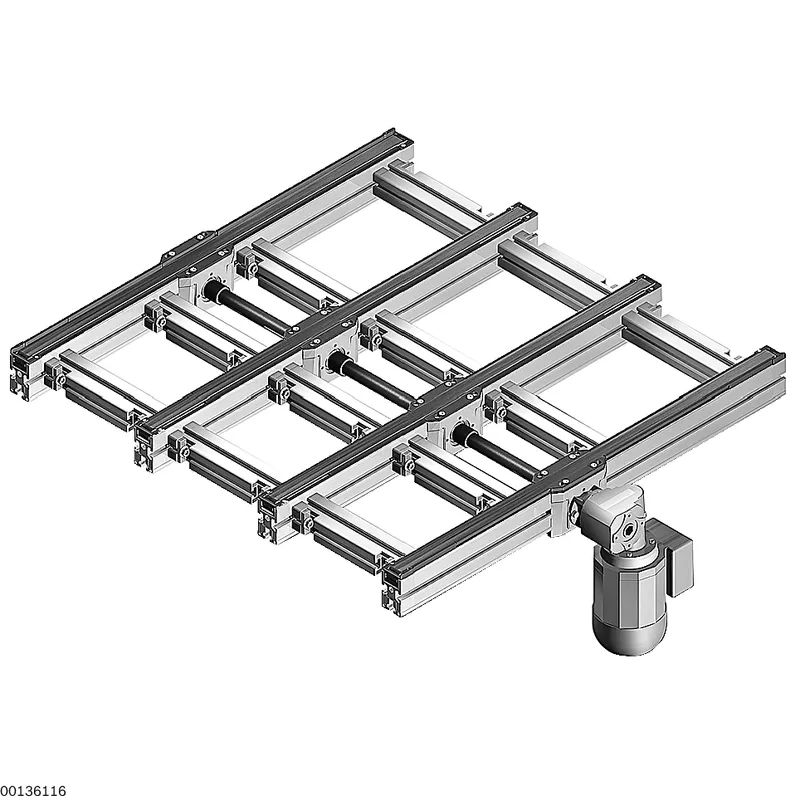

Belt section CSS/FM-5

Conveyor medium with high friction coefficient allows high acceleration and deceleration

Mounting position of the motor central

Same system dimensions as CSS/B

Longitudinal conveyor for glass modules of various dimensions

Use for installation situations in which there is no space for the motor at the ends of the belt section

Not intended for accumulation operation

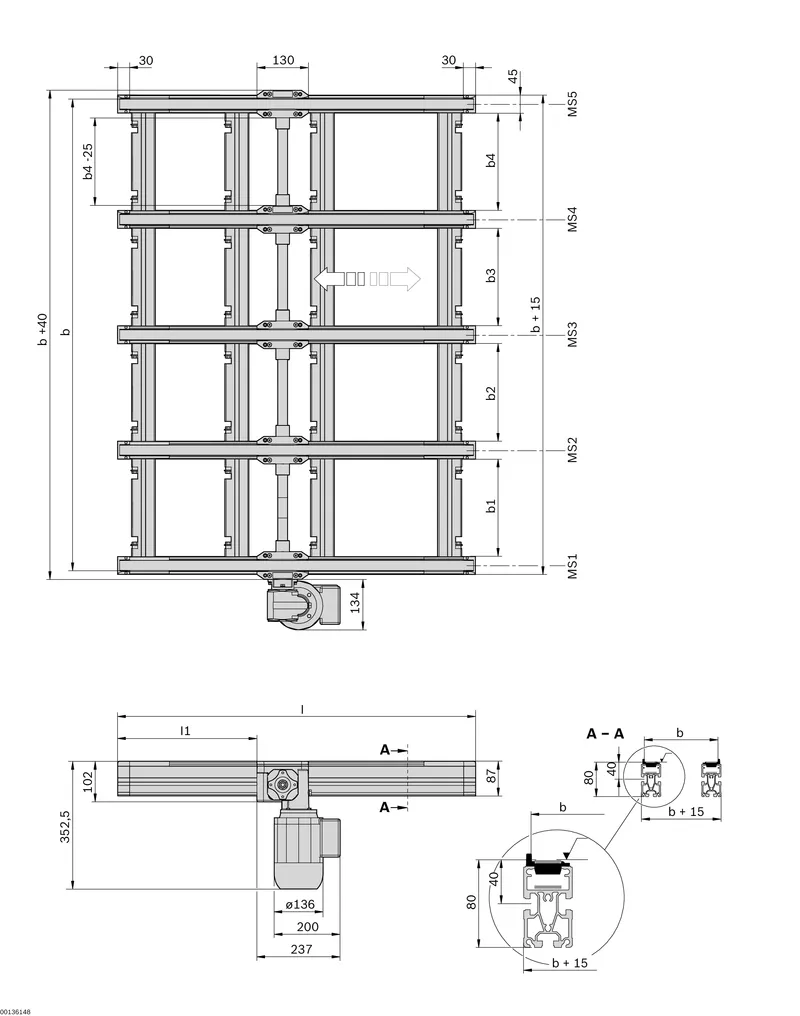

The position of the motor can be freely selected in the longitudinal direction (l1)

Version otherwise the same as CSS/F

Specifications

Length max [l max] [mm]	450
Length min [L min] [mm]	6000
Track width in direction of transport [b max] [mm]	3000
Track width in direction of transport [b min] [mm]	160
Section load in accumulation operation [kg]	120
Nominal speed [vN]	0 m/min, U = 0; 0 m/min, U = 0, f = 0, ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 21 m/min; 36 m/min; 6 m/min; 9 m/min; f = 50/60 Hz: ohne Motor, mit Getriebe (wenn technisch sinnvoll)
Delivery information	Motor included separately; b ≤ 2000 mm: Assembled<br/>b > 2000 mm: Partially assembled
Notice	bx<sub>min</sub> = 165 mm for motor mounting between the tracks
Length min [l1] [mm]	160
Length max [l1] [mm]	l-290
Track width [b1 min] [mm]	85
Track width [b1 max] [mm]	1000
Track width [b2 min] [mm]	85
Track width [b2 max] [mm]	1000
Track width [b3 min] [mm]	85
Track width [b4 min] [mm]	85
Track width [b3 max] [mm]	1000
Track width [b4 max] [mm]	1000
Recommended accessories	Frame SFS; Frequency converter FU; Leg set SZS/B
Weight [kg]	0
