Bosch Rexroth 3842998230

MATERIAL SHUTTLE LOGISTIK

MPN: 3842998230
Category: Material shuttle Logistik Basic complete

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

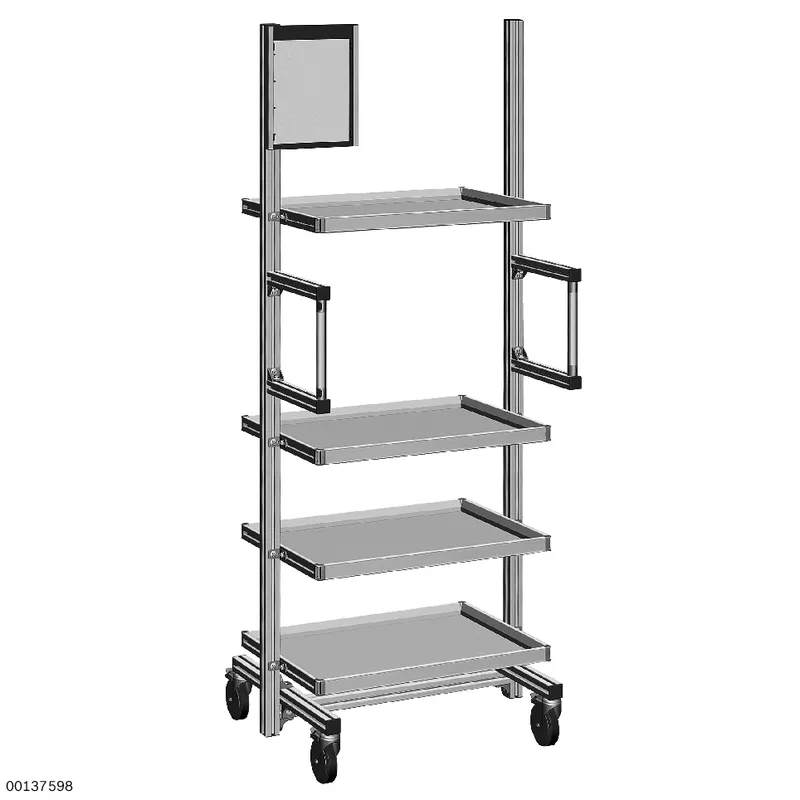

What is the Bosch Rexroth 3842998230?

Material Shuttle Logistics

C-parts supply on side of workstation

Manual linking of two workstations or of supermarket shelves with workstations and production islands

Can be equipped and sized to meet specific requirements

Available as ESD-conductive version

Design: Fully assembled or as a kit for self-assembly

Optional information board for supplying information directly at location

Adjustable material shelf height, offset, and tilt to ensure ergonomic grabbing

Material shelves Basic including lettering clip; selection of various plates

LR: Ball bearing, with locking mechanism locking device

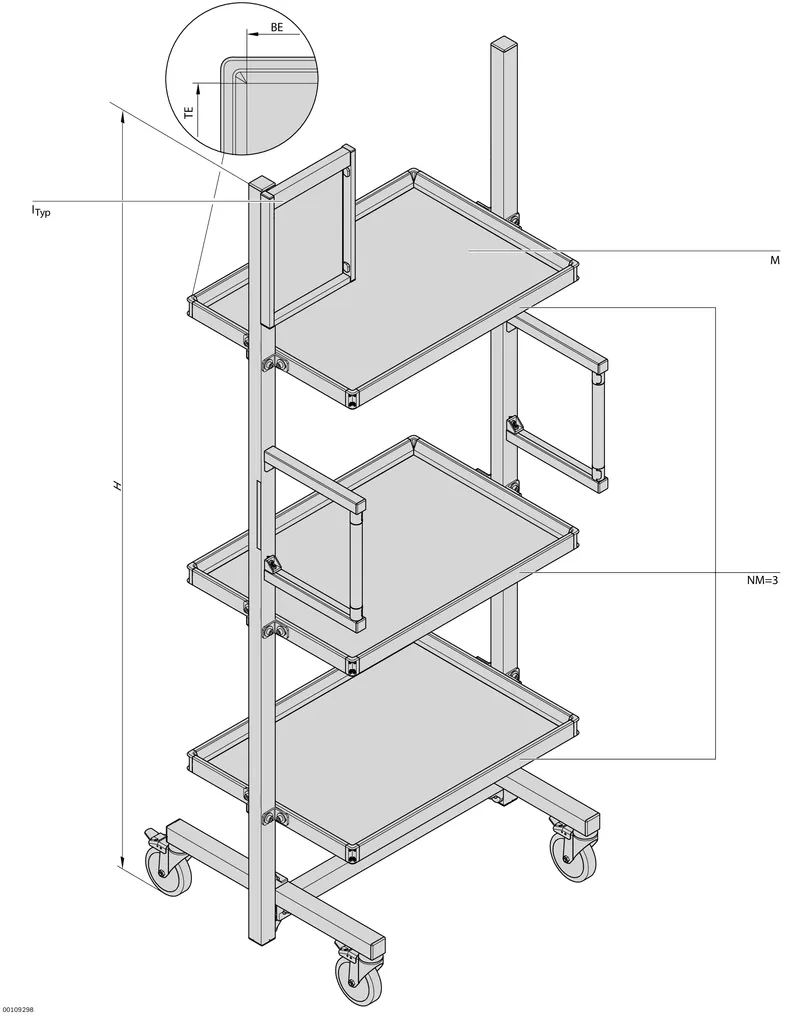

Specifications

Profile slot	10
Conductivity [ESD]	yes, no
Packaging unit	1
Version [A]	Disassembled, assembled
Material shelf material [M]	3 different surface materials
Number of material shelves [NM]	0 ... 4
Type of information board [Ityp]	7 different information boards
Material shelf width min [BE] [mm]	410
Material shelf width max [BE] [mm]	1480
Material shuttle height min [H min] [mm]	600
Material shuttle height max [H max] [mm]	2200
Material shelf depth min [TE] [mm]	410
Material shelf depth max [TE max] [mm]	1220
Required accessories	Swivel fastening for tilting the material shelf
Weight [kg]	0
