Bosch Rexroth 3842998048

POSITIONING UNIT PE 5/L

MPN: 3842998048
Category: Positioning units TS 5

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998048?

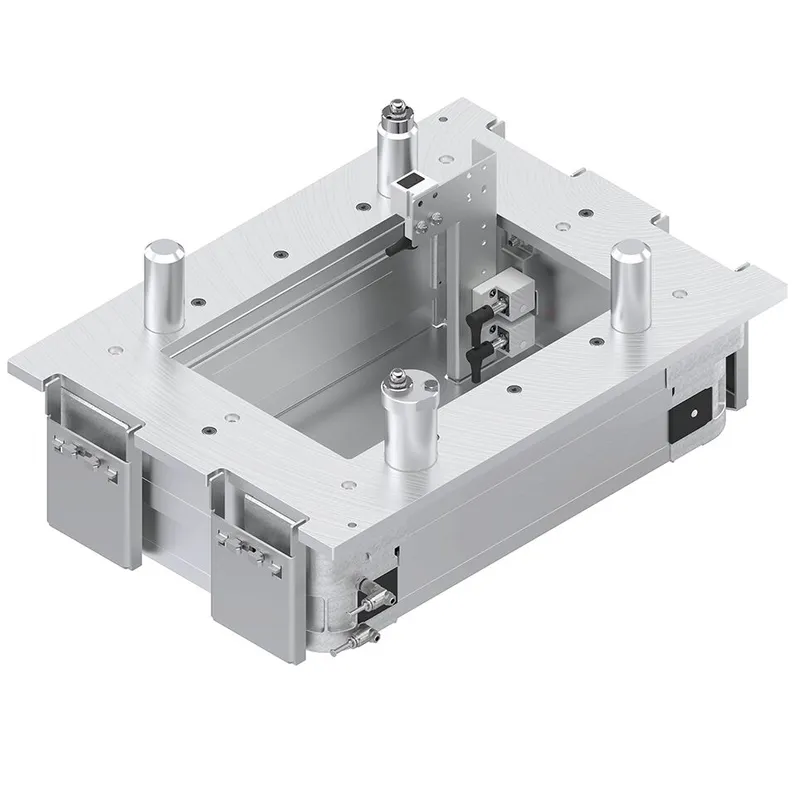

PE 5/L positioning unit

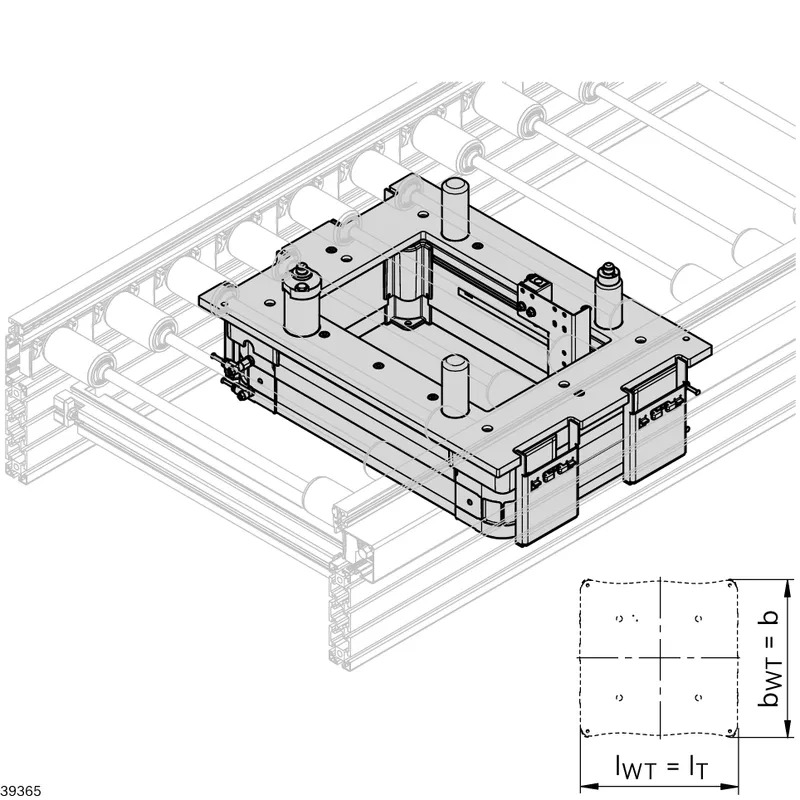

Positioning a workpiece pallet in a manual or automated processing station in the longitudinal conveyor with high positioning accuracy requirements (±0.3 mm)

Can be used with all WT 5 workpiece pallets

Installation only possible from above

Lift over transport level: 5 mm

Positioning accuracy: ±0.3 mm in x and y direction

Permissible vertical process force with center load:

up to 3500 N 2) depending on WT weight, i.e. permitted load of 3500 N – weight WT = possible process force

Suitable for ST 5/XH and ST 5/H (not ST 5/XH‑FR or ST 5/H‑FR)

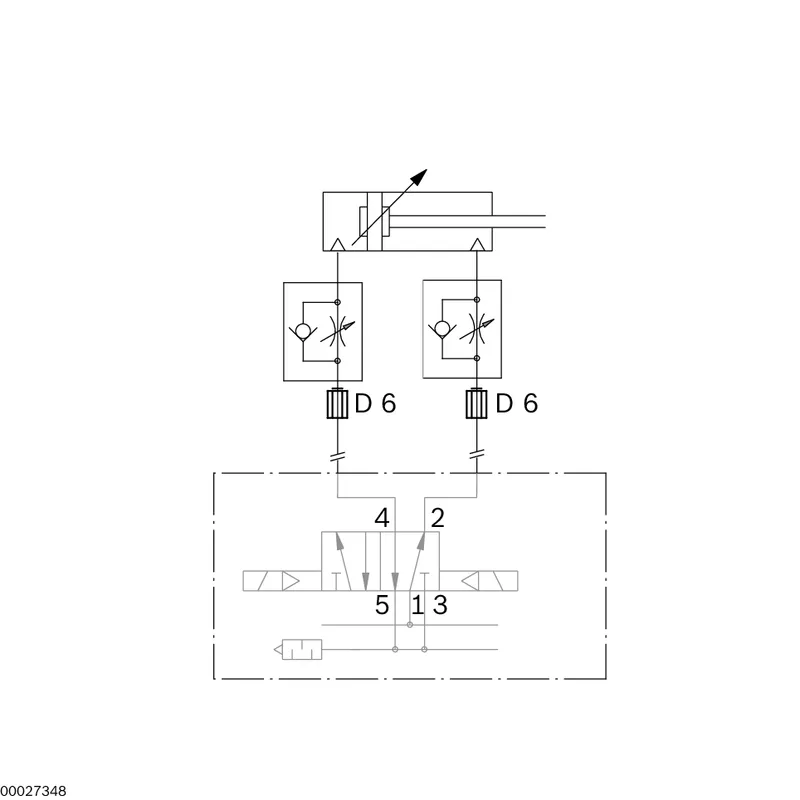

Compressed air connection: 5 ... 6 bar

Push in air connection: 8 mm

2) If assembling in a ST 5/H section place legs directly in front of and behind the PE 5/L.

Specifications

required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	5

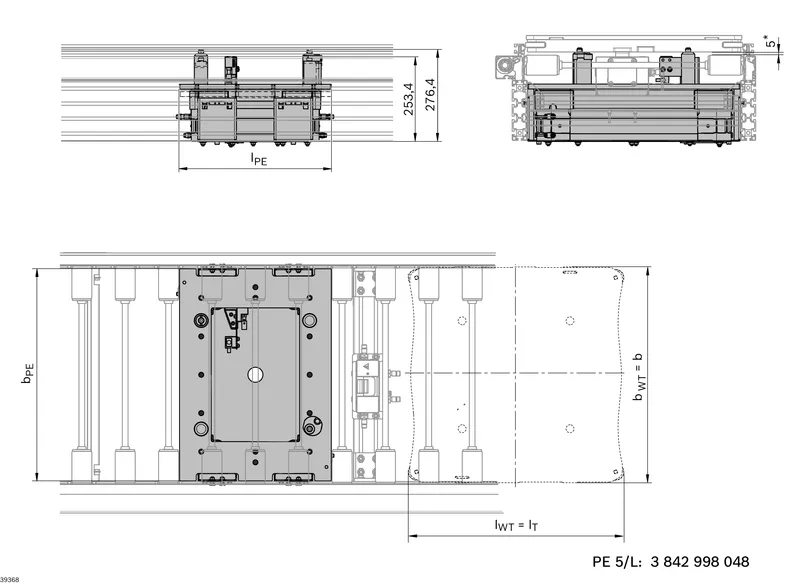

Length in direction of transport [lT] [mm]	1040; 455; 650; 845
Track width [b] [mm]	455; 650; 845
Positioning unit width [bPE] [mm]	441; 636; 831
Scope of delivery	Incl. fastening material for mounting the PE 5/L in ST 5/XH conveyor sections
Delivery information	Fully assembled
Positioning unit length [lPE] [mm]	471; 576; 764; 966
Preferred values [mm]	455; 650; 845
Required accessories	SH 2/U-H switch bracket; VE 5/200, VE 5/D‑300, VE 5/D‑301 or VE 5/D‑1000 stop gate
Recommended accessories	Lateral guide cover; Protective sleeves
Weight [kg]	0
