Bosch Rexroth 3842993687

STRUT PROFILE 100X200L Q&E

MPN: 3842993687
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842993687?

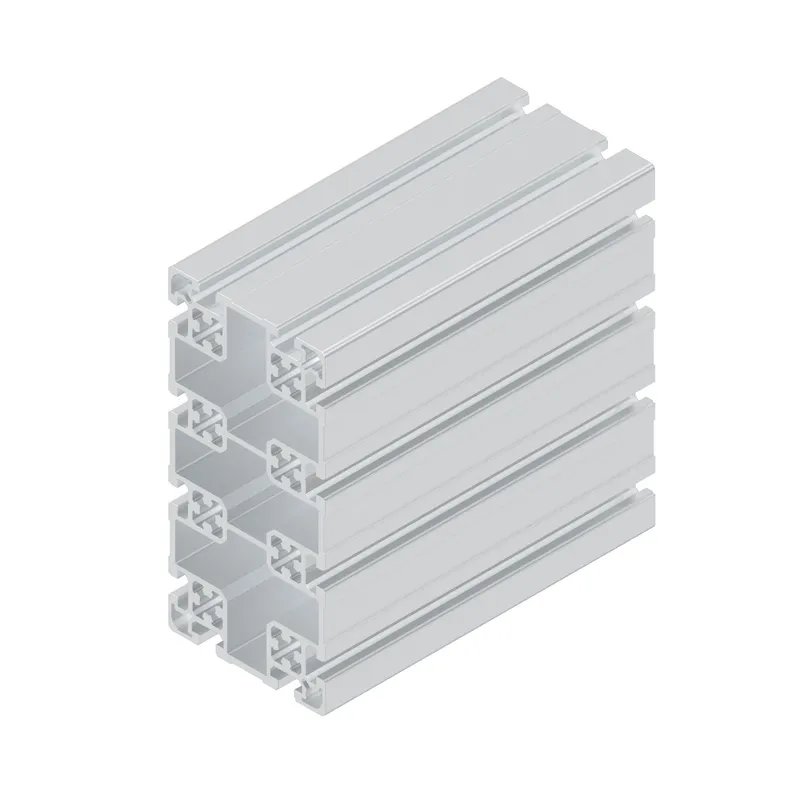

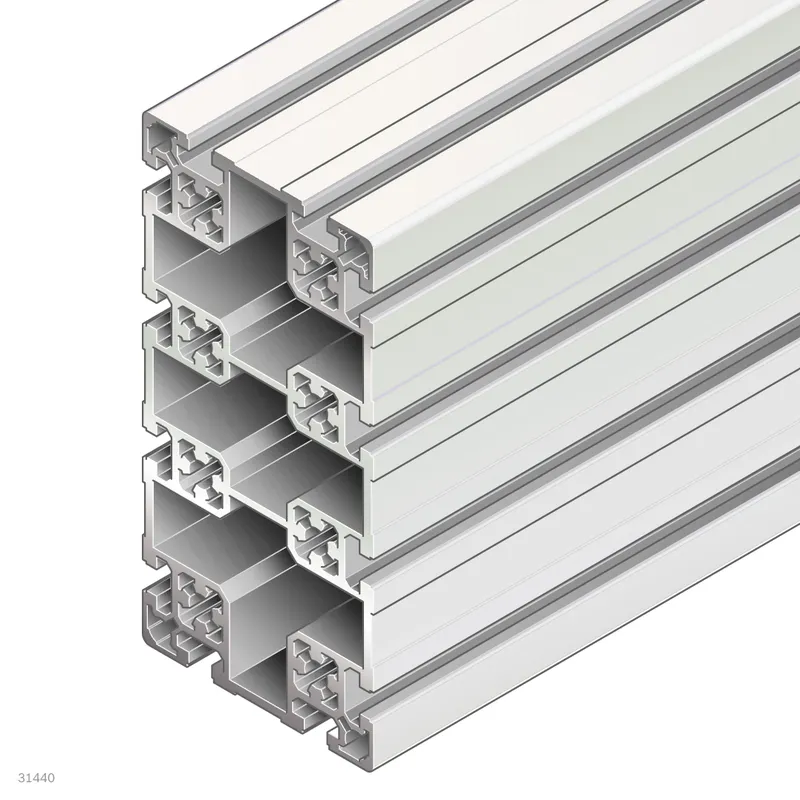

Strut profile 100x200L Q&E

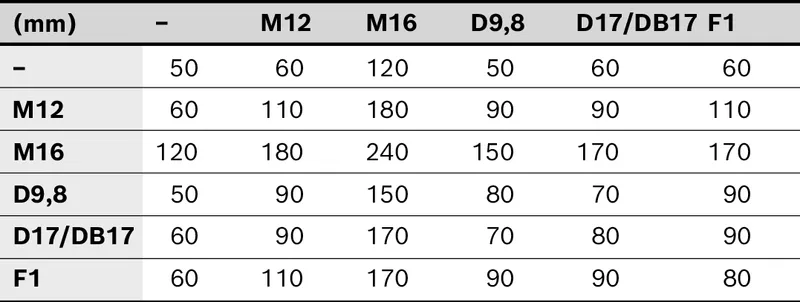

Minimum profile lengths for profile finishing: see table

Specifications

Condition on delivery	Profile finishing

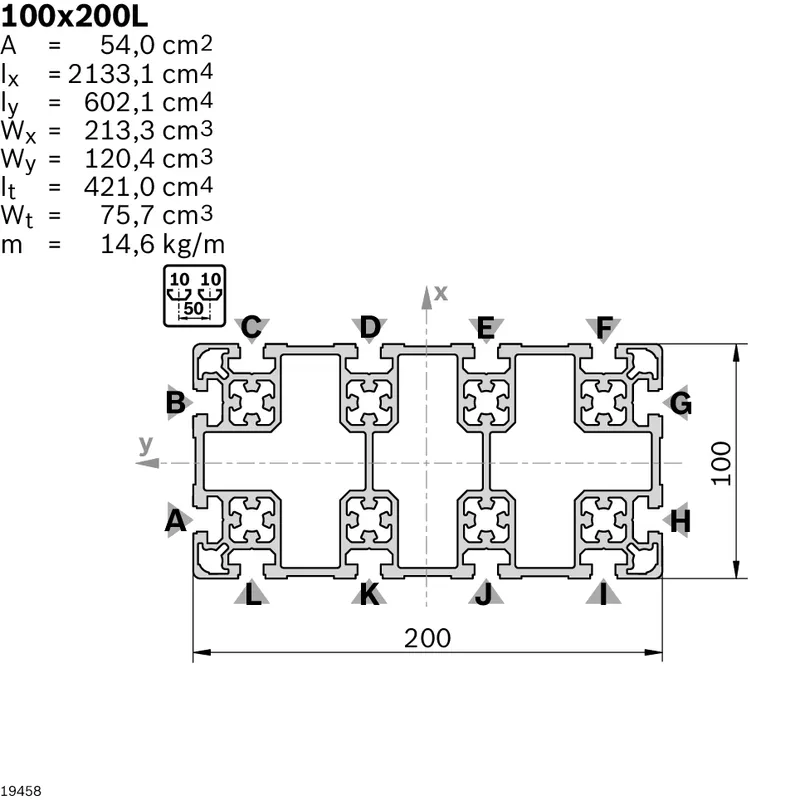

Cross-section	100x200L
Modular dimension [mm]	50
Profile slot	10
Dimensions	100x200
Open slots	12.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6070
Length min [L min] [mm]	50
Packaging unit	1
Customized profile finishing	DI / DIS / MT / MTS / MI / MIS / DG
Standard profile finishing	D9,8(C,D,E,F,I,J,K,L)<sup>1)</sup> / D17(C,D,E,F,I,J,K,L)<sup>1)</sup> / DB17 / F1(A,G)
Standard profile finishing minimum length	Observe minimum length
Mass [m] [kg]	14.6
Area moment of inertia in x-direction [lx] [cm⁴]	2133.1
Area moment of inertia in y-direction [ly] [cm⁴]	602.1
Profile surface [A] [cm²]	54
Moment of resistance in the x-direction [Wx] [cm³]	213.3
Moment of resistance in the y-direction [Wy] [cm³]	120.4
Torsional moment of inertia [It] [cm⁴]	421.0
Moment of torsion resistance [Wt] [cm³]	75.7
Notice	DGmax = 30°, Lmin = 416/532mm; Standard profile finishing at specified slots
Material	Aluminum, anodized
Individual profile finishing [L max i] [mm]	5400
Standard profile finishing [L max] [mm]	6000
Recommended accessories	Cover cap 100x100, black; Cover cap 100x100, signal gray
Weight [kg]	0
