Bosch Rexroth 3842993685
STRUT PROFILE 100X100L Q&E
- MPN
- 3842993685
- Category
- Strut profile
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842993685?

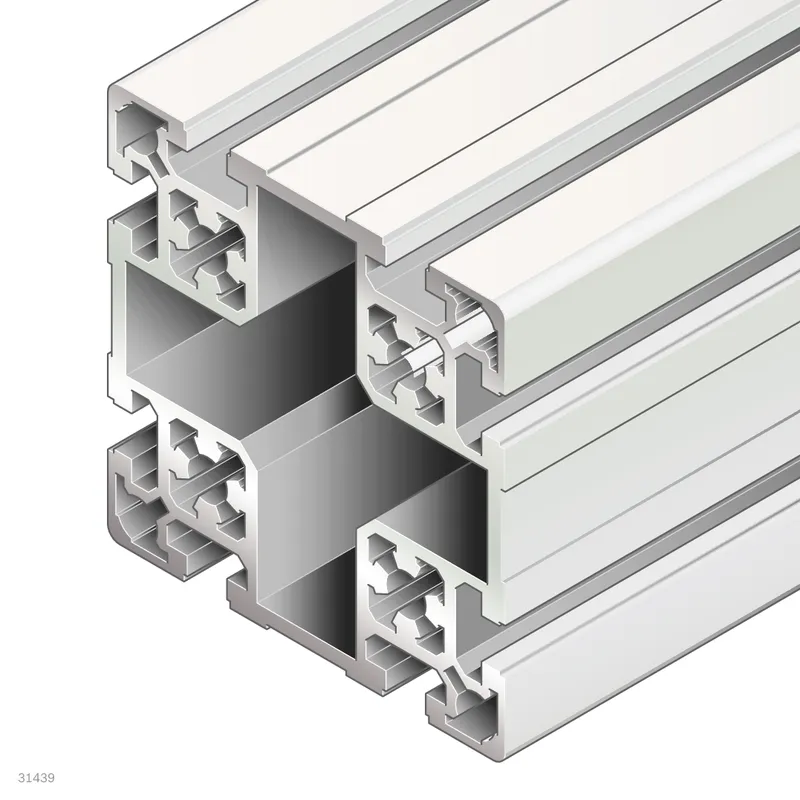

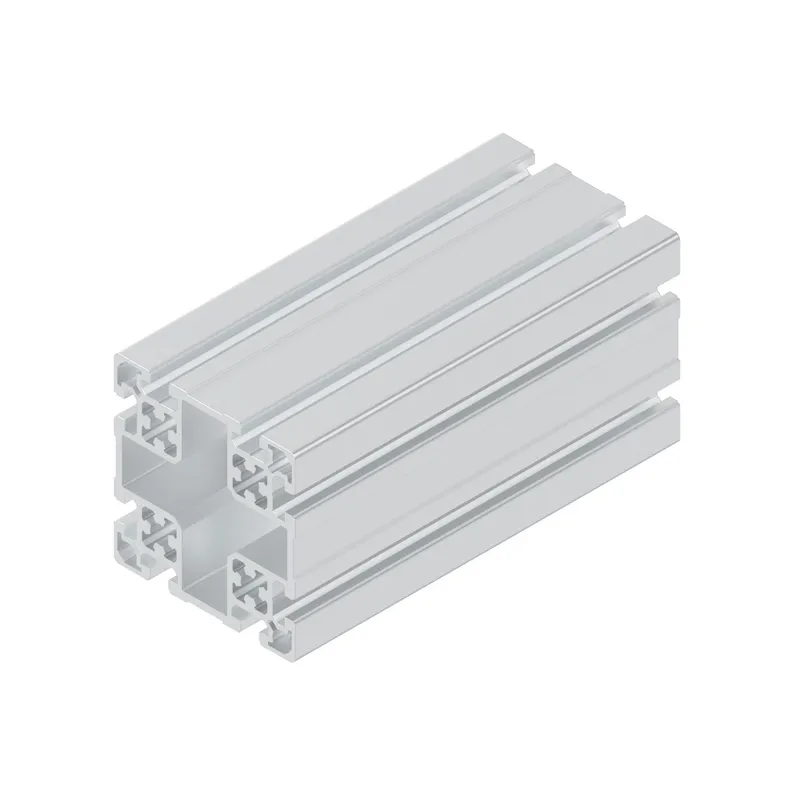

Strut profile 100x100L Q&E
Minimum profile lengths for profile finishing: see table
Specifications
Specifications

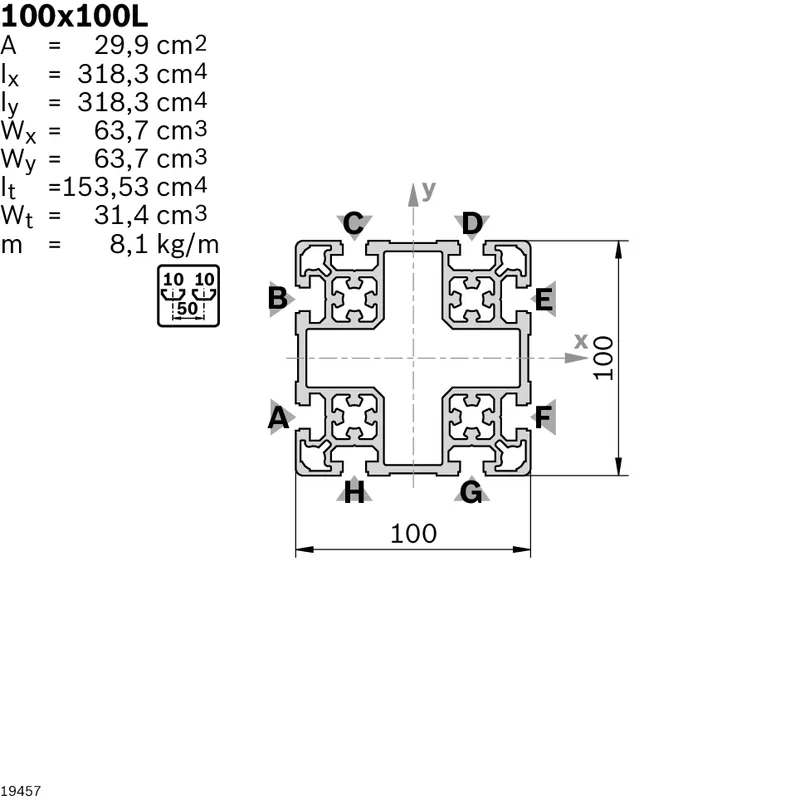

| Condition on delivery | Profile finishing |
| Cross-section | 100x100L |
| Modular dimension [mm] | 50 |
| Profile slot | 10 |
| Dimensions | 100x100 |
| Open slots | 8.0 |
| Profile type | Standard |
| Color | Natural |
| Length max [L max] [mm] | 6070 |
| Length min [L min] [mm] | 50 |
| Packaging unit | 1 |
| Customized profile finishing | DI / DIS / MT / MTS / MI / MIS / DG |
| Standard profile finishing | M12 / M16 / D9,8 / D17 / DB17 / F1 |
| Standard profile finishing minimum length | Observe minimum length |
| Mass [m] [kg] | 8.1 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 318.3 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 318.3 |
| Profile surface [A] [cm²] | 29.9 |
| Moment of resistance in the x-direction [Wx] [cm³] | 63.7 |
| Moment of resistance in the y-direction [Wy] [cm³] | 63.7 |
| Torsional moment of inertia [It] [cm⁴] | 153.53 |
| Moment of torsion resistance [Wt] [cm³] | 31.4 |
| Notice | DGmax = 45°, Lmin1 / Lmin2 = 474/648mm |
| Material | Aluminum, anodized |
| Individual profile finishing [L max i] [mm] | 5400 |
| Standard profile finishing [L max] [mm] | 6000 |
| Recommended accessories | Cover cap 100x100, black; Cover cap 100x100, signal gray |
| Weight [kg] | 0 |
