Bosch Rexroth 3842993686

STRUT PROFILE NUTENPL.15X180 Q&E

MPN: 3842993686
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842993686?

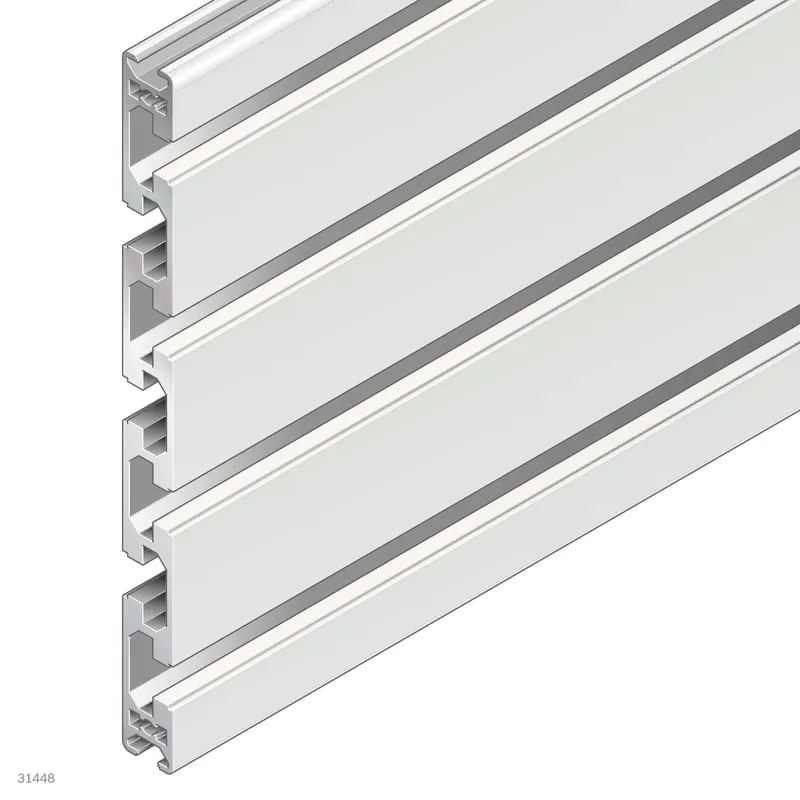

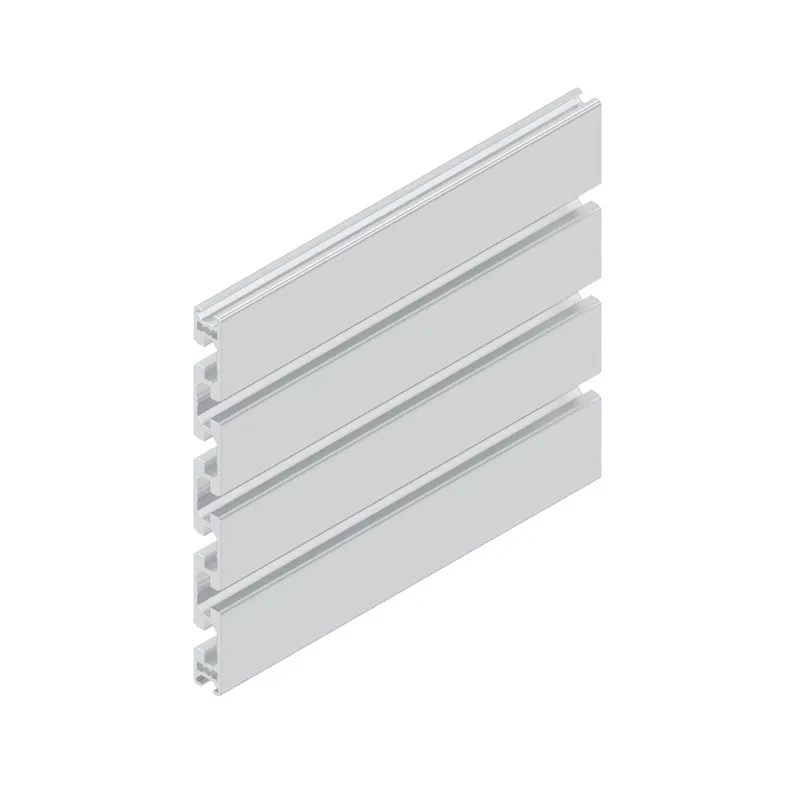

Strut profile 15x180 Q&E

Minimum profile lengths for profile finishing: see table

Specifications

Condition on delivery	Profile finishing

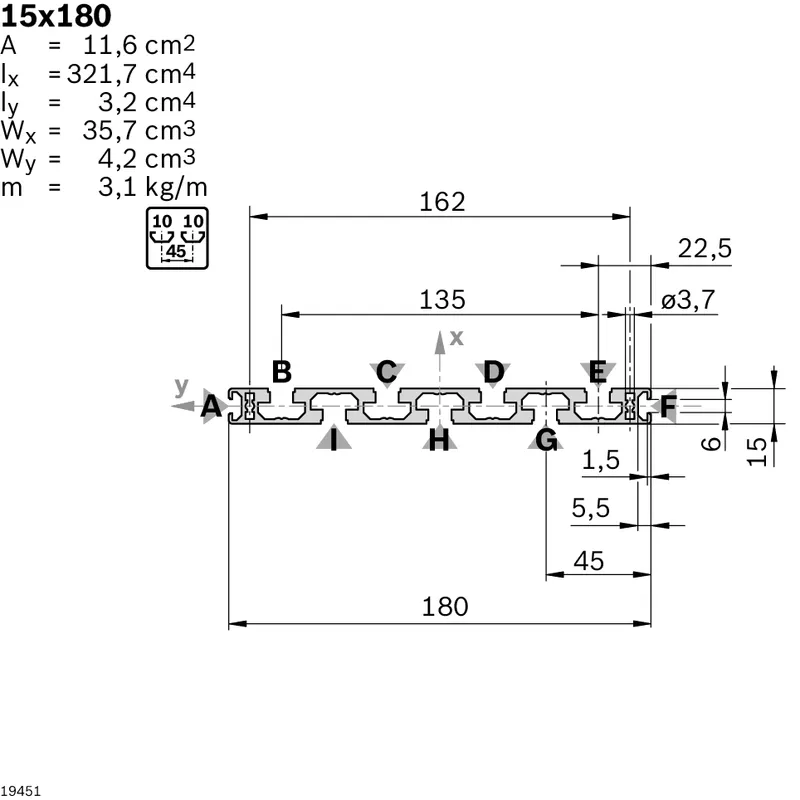

Cross-section	15x180
Modular dimension [mm]	45
Profile slot	10
Dimensions	15x180
Open slots	9.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6070
Length min [L min] [mm]	80
Packaging unit	1
Customized profile finishing	DI / DIS / MT / MTS / MI / MIS
Standard profile finishing	D9,8(B,C,D,E,G,H,I)<sup>1)</sup> / D17(B,C,D,E,G,H,I)
Standard profile finishing minimum length	Observe minimum length
Mass [m] [kg]	3.1
Area moment of inertia in x-direction [lx] [cm⁴]	321.7
Area moment of inertia in y-direction [ly] [cm⁴]	3.2
Profile surface [A] [cm²]	11.6
Moment of resistance in the x-direction [Wx] [cm³]	35.7
Moment of resistance in the y-direction [Wy] [cm³]	4.2
Notice	Standard profile finishing at specified slots
Material	Aluminum, anodized
Individual profile finishing [L max i] [mm]	4900
Standard profile finishing [L max] [mm]	6000
Recommended accessories	Cover cap 15x180, black; Cover cap 15x180, signal gray
Weight [kg]	0
