Bosch Rexroth 3842993684

STRUT PROFILE NUTENPL.15X120 Q&E

MPN: 3842993684
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842993684?

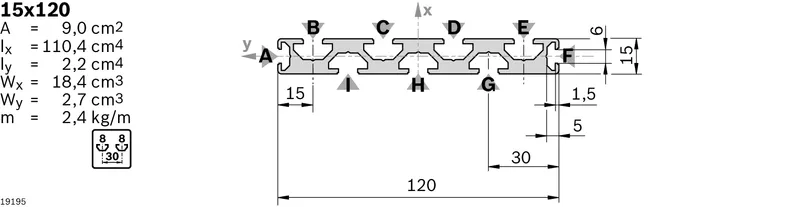

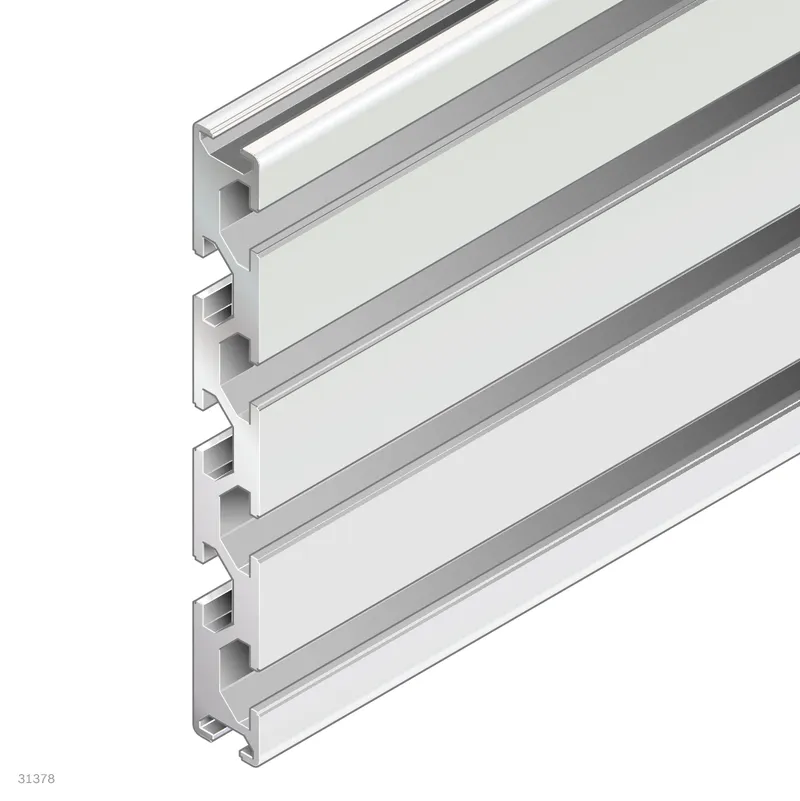

Strut profile 15x120 Q&E

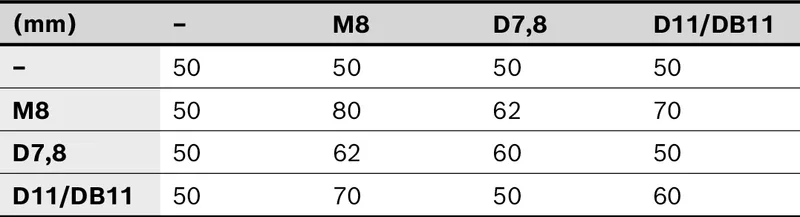

Minimum profile lengths for profile finishing: see table

Specifications

Condition on delivery	Profile finishing
Cross-section	15x120
Modular dimension [mm]	30
Profile slot	8
Dimensions	15x120
Open slots	9.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	3000
Length min [L min] [mm]	80
Packaging unit	1
Customized profile finishing	DI / DIS / MT / MTS / MI / MIS / DG
Standard profile finishing	D7,8(B,C,D,E,G,H,I)<sup>1)</sup> / D11(B,C,D,E,G,H,I)
Standard profile finishing minimum length	Observe minimum length
Mass [m] [kg]	2.4
Area moment of inertia in x-direction [lx] [cm⁴]	110.4
Area moment of inertia in y-direction [ly] [cm⁴]	2.2
Profile surface [A] [cm²]	9
Moment of resistance in the x-direction [Wx] [cm³]	18.4
Moment of resistance in the y-direction [Wy] [cm³]	2.7
Notice	Standard profile finishing at specified slots
Material	Aluminum, anodized
Individual profile finishing [L max i] [mm]	2300
Recommended accessories	Cover cap 15x120, black; Cover cap 15x120, signal gray
Weight [kg]	0
