Bosch Rexroth 3842992412
ALUMINUM ANGLE PROFILE 45X45
- MPN
- 3842992412
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842992412?

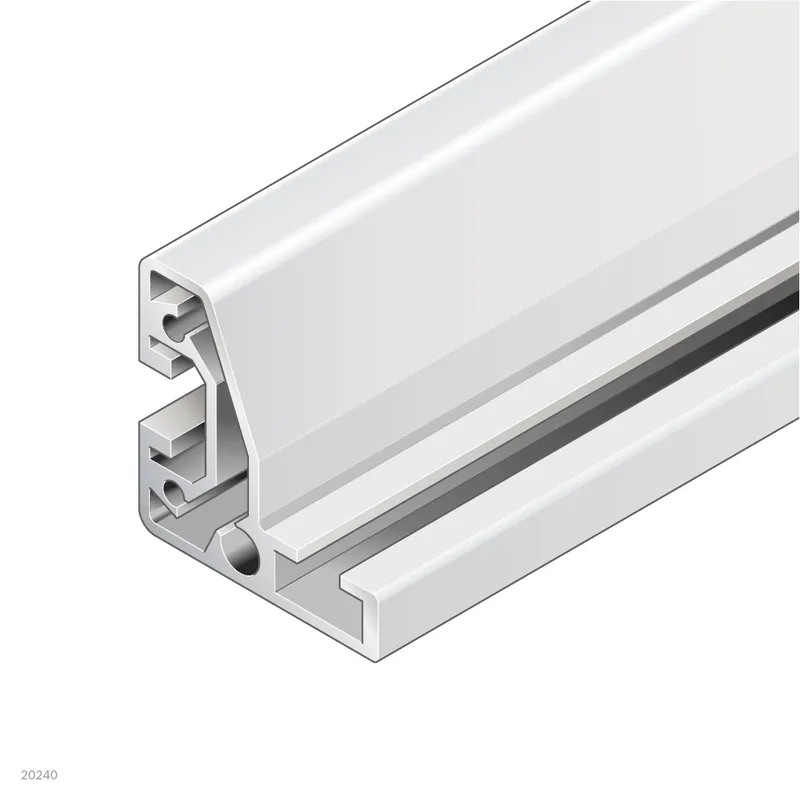

Angle profile, L50-5600

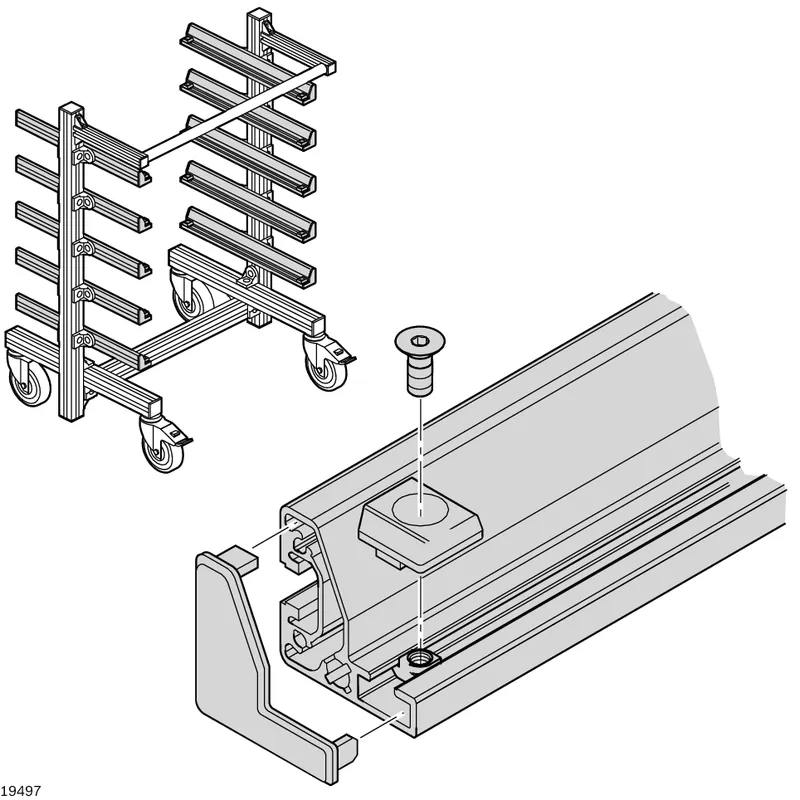

For supporting containers, plates, or workpiece pallets in flow racks, material shuttles, or hopper stackers
Stopper and cover cap
The stopper prevents containers from shifting on the angle profile
Cover cap to prevent injuries at open profile ends
Attractive design

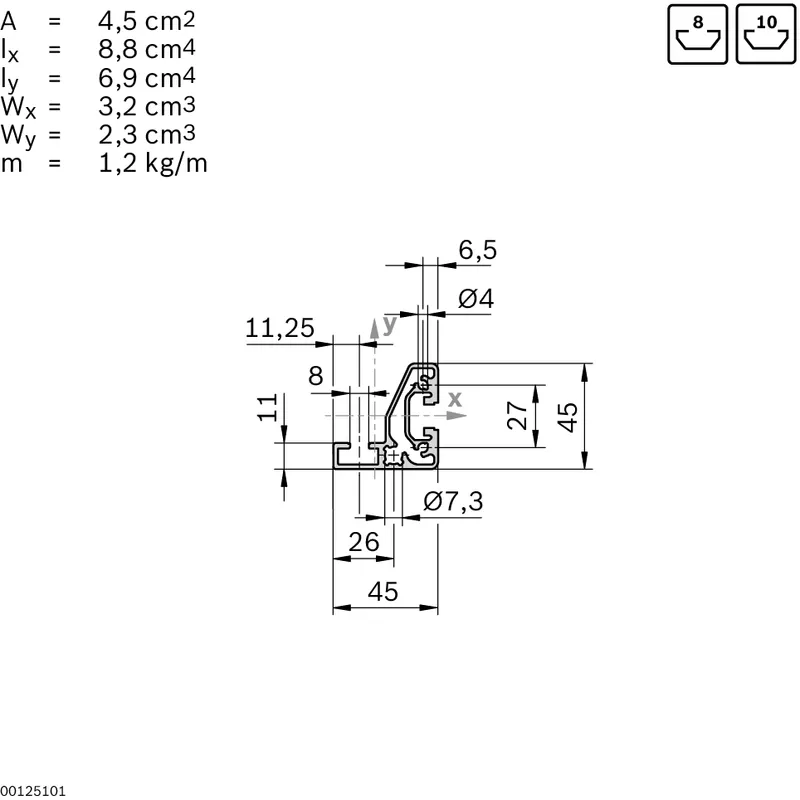

Specifications
Specifications
| Condition on delivery | Variable length |
| Profile slot | 8, 10 |
| ESD | Yes |
| Length max [L max] [mm] | 6070 |
| Length min [L min] [mm] | 30 |
| Mass [m] [kg] | 1.2 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 8.8 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 6.9 |
| Profile surface [A] [cm²] | 4.5 |
| Moment of resistance in the x-direction [Wx] [cm³] | 3.2 |
| Moment of resistance in the y-direction [Wy] [cm³] | 2.3 |
| Material | Aluminum, anodized |
| Recommended accessories | Bracket R40x43 |
| Weight [kg] | 0 |
