Home / Bosch Rexroth / Material shelves / Bosch Rexroth 3842992411

Bosch Rexroth

Bosch Rexroth 3842992411

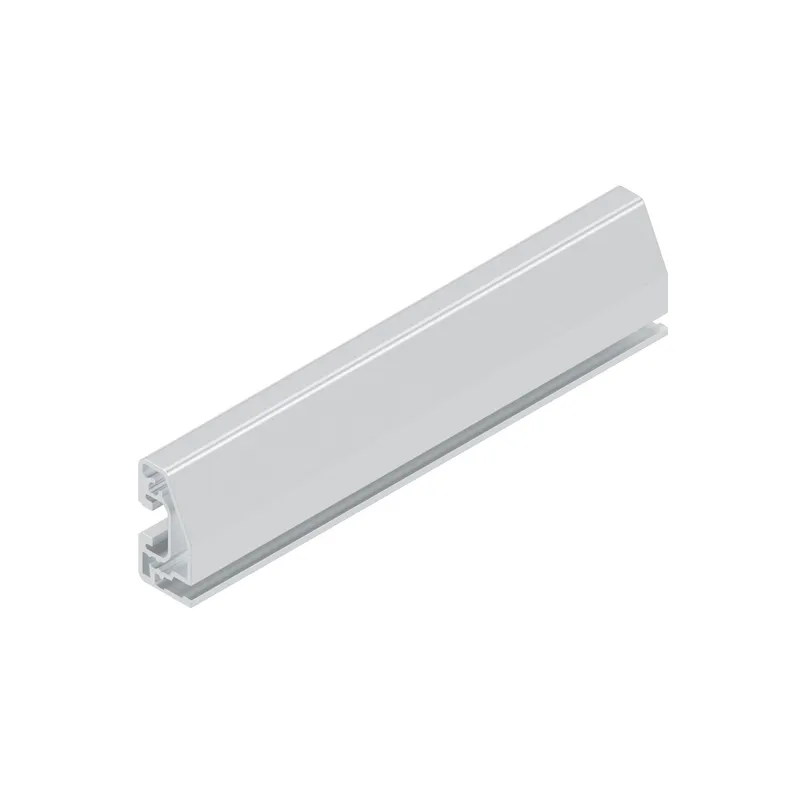

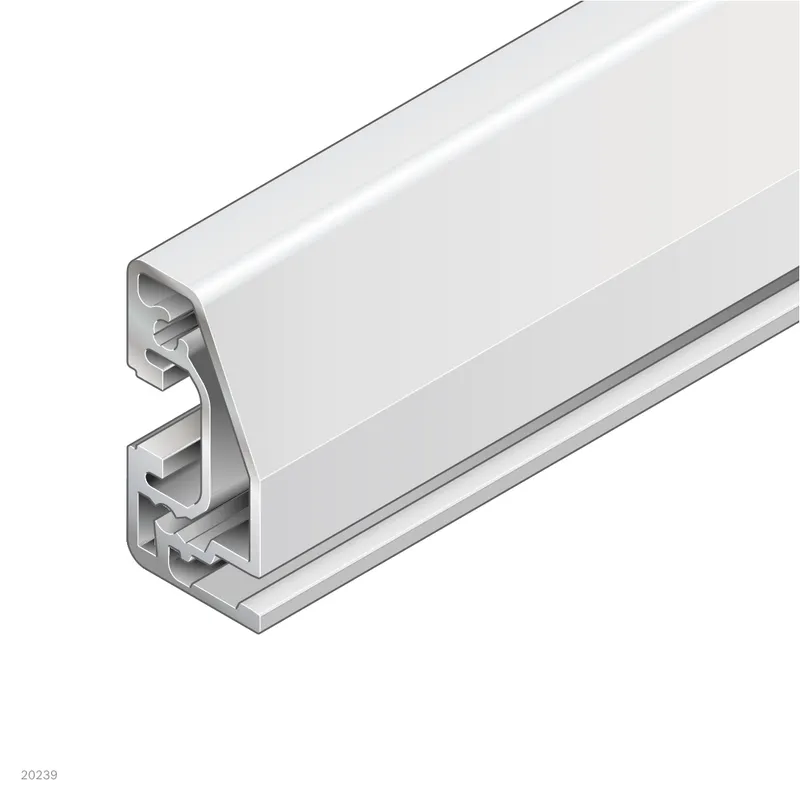

FRAME PROFILE 22,5X45

MPN: 3842992411
Category: Material shelves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842992411?

Frame profile 22.5x45 L50-5600

For inexpensive construction of trays and material shelves

Surface elements are mounted under tension so that they do not rattle

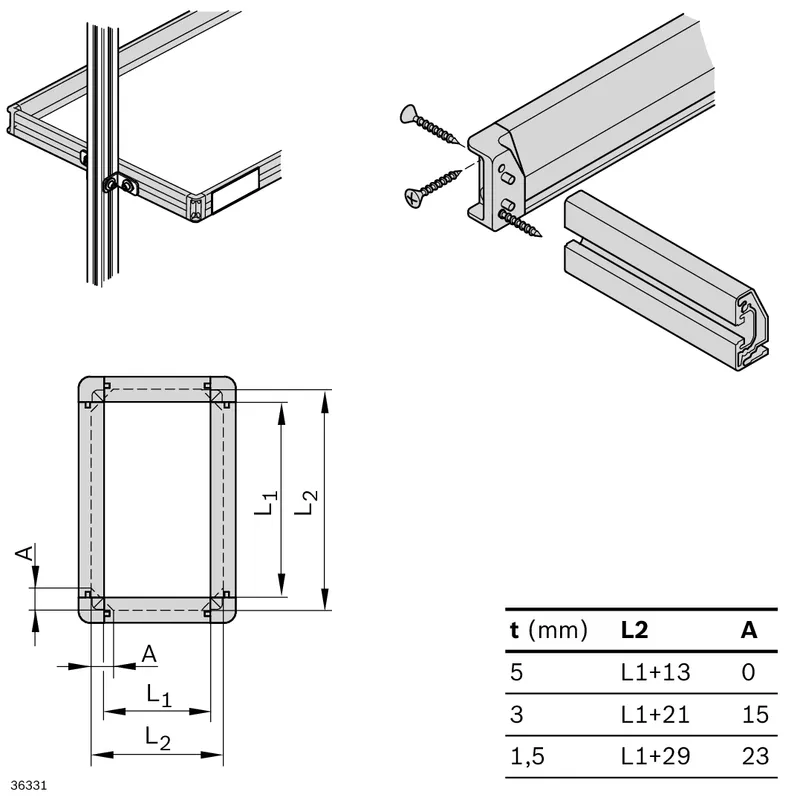

Corner bracket for frame profile 22.5x45

For the right-angled connection of two 22.5x45 frame profiles

Profile finishing: not required

Specifications

Condition on delivery	Variable length
Profile slot	10
Delivery unit	1
Length max [L max] [mm]	6070
Length min [L min] [mm]	50
Mass [m] [kg]	0.9

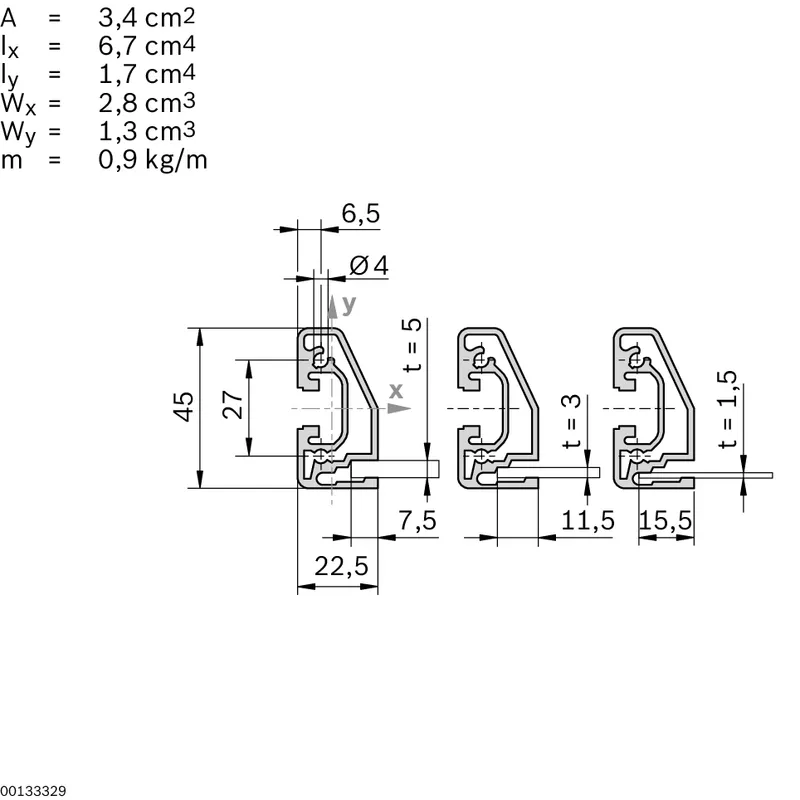

Area moment of inertia in x-direction [lx] [cm⁴]	6.7
Area moment of inertia in y-direction [ly] [cm⁴]	1.7
Profile surface [A] [cm²]	3.4
Moment of resistance in the x-direction [Wx] [cm³]	2.8
Moment of resistance in the y-direction [Wy] [cm³]	1.3
Material	Aluminum, anodized
Recommended accessories	Bracket set; Lettering clip for 10 mm slot; Plate; Swivel fastening
Weight [kg]	0
