Bosch Rexroth 3842992416

STRUT PROFILE 90X90L M12/

MPN: 3842992416
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842992416?

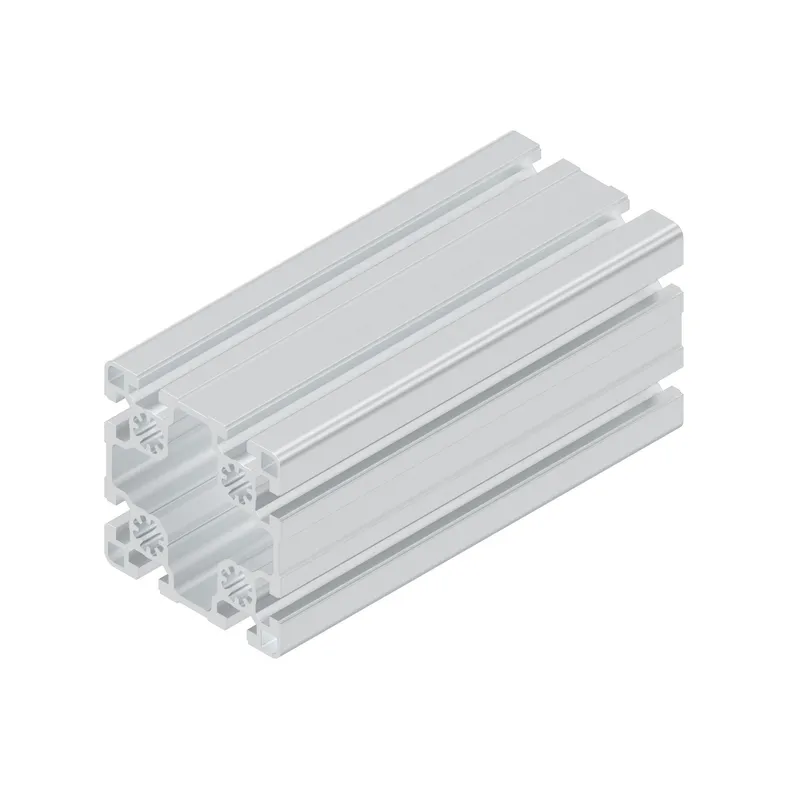

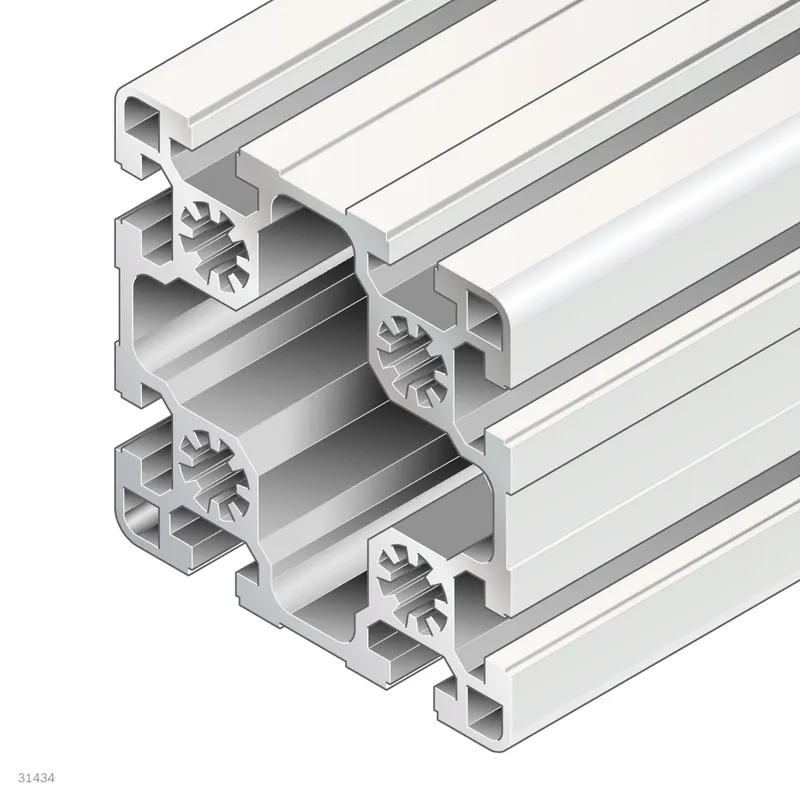

Strut profile 90x90L M12/-

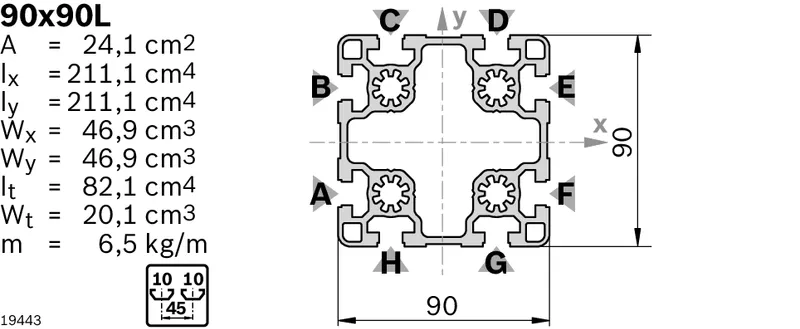

Specifications

Condition on delivery	Profile finishing
Cross-section	90x90L
Modular dimension [mm]	45
Profile slot	10
Dimensions	90x90
Open slots	8.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6000
Length min [L min] [mm]	60
Packaging unit	1
Mass [m] [kg]	6.5
Area moment of inertia in x-direction [lx] [cm⁴]	211.1
Area moment of inertia in y-direction [ly] [cm⁴]	211.1
Profile surface [A] [cm²]	24.1
Moment of resistance in the x-direction [Wx] [cm³]	46.9
Moment of resistance in the y-direction [Wy] [cm³]	46.9
Torsional moment of inertia [It] [cm⁴]	82.1
Moment of torsion resistance [Wt] [cm³]	20.1
Profile adaption	D17: in slots C/H, D/G; D17V: in slots A/F, B/E; LF: in slots C/H, D/G; M12: in all core holes
Material	Aluminum, anodized
Recommended accessories	Cover cap 90x90L, black; Cover cap 90x90L, signal gray
Weight [kg]	0
