Bosch Rexroth 3842572117

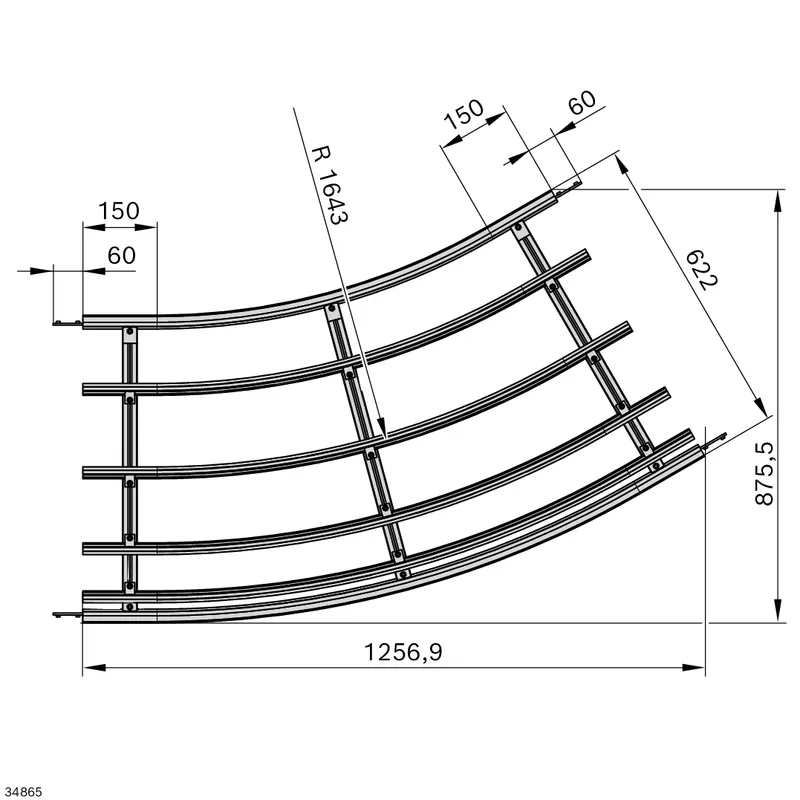

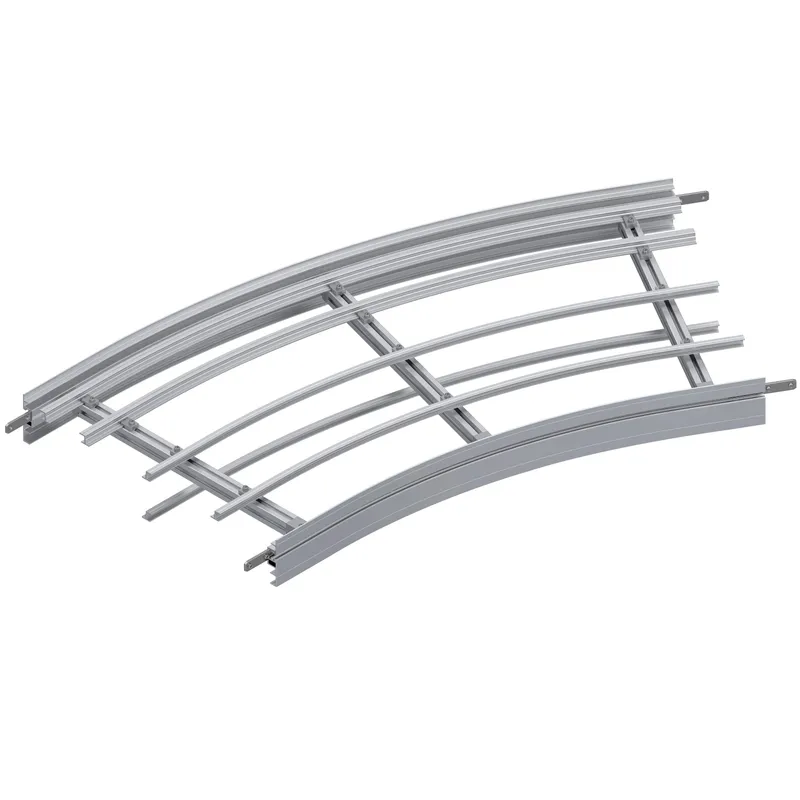

CURVE 622MB HOR AL 30°R1643

MPN: 3842572117
Category: Curve AL VarioFlow belt

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842572117?

Integrated holding-down clamps allow for the use of the entire chain surface; in this way, even very wide products can be transported in the horizontal curve.

In front of and/or behind a horizontal curve, a straight section in belt width (additional section profile with a minimum length of 458 mm) must be provided. Between two horizontal curves in opposite direction (S curve), a straight section with twice the belt width (additional section profile with a minimum length of 916 mm) must be provided.

Use in abrasive environments is not permissible

Specifications

Condition on delivery	Some assembly required
Delivery unit	1
Size [b] [mm]	622
Modification	Additional track widths are available on request from our modification department. (COS@boschrexroth.de)
Material information	Clamping heads: Diecast aluminum; Profile connector: Steel, galvanized; Profile: Aluminum, anodized
Required accessories	Clamping piece VF belt (2x)
Weight [kg]	8.7
