Home / Bosch Rexroth / Curve AL VarioFlow belt / Bosch Rexroth 3842572115

Bosch Rexroth 3842572115

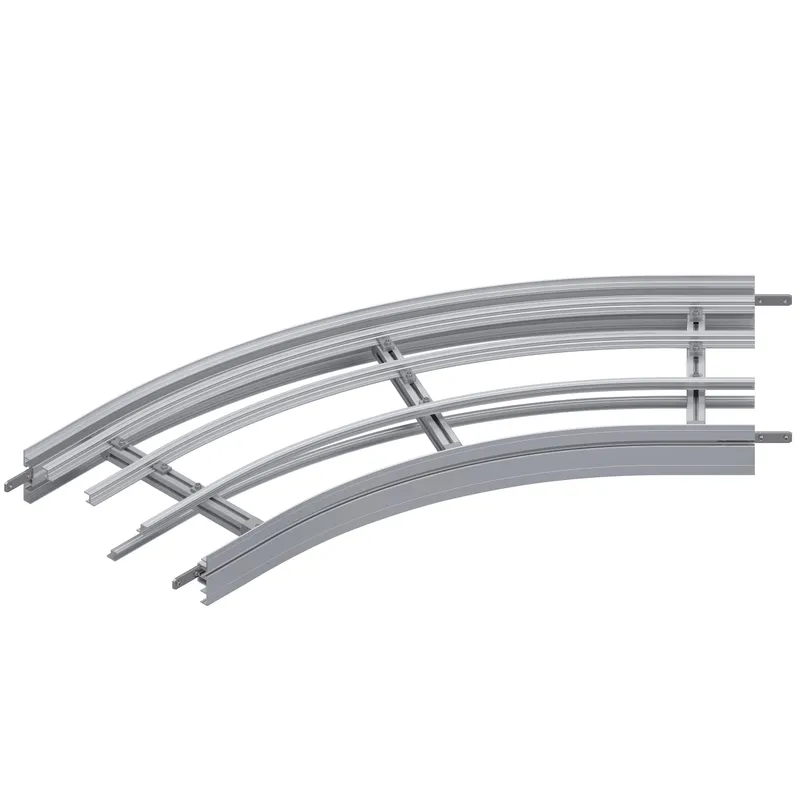

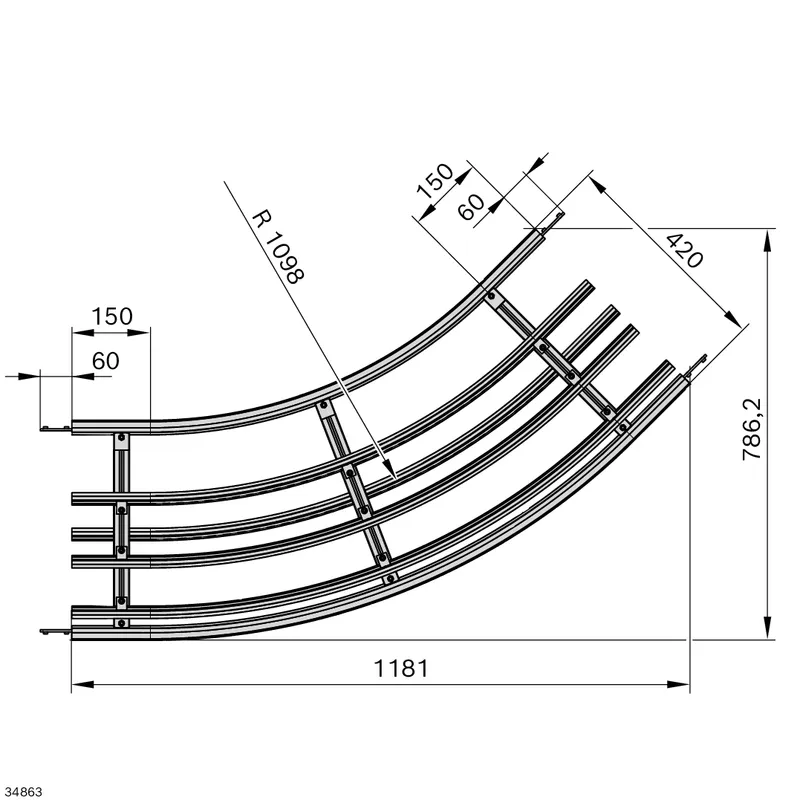

CURVE 420MB HOR AL 45°R1098

MPN: 3842572115
Category: Curve AL VarioFlow belt

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842572115?

The use of the complete modular belt surface is possible, since on the underside, the belt is equipped with integrated holding-down clamps. As a result, even overwide products can be transported on a horizontal section path.

In front of and/or behind a horizontal curve, a straight section in belt width (additional section profile with a minimum length of 256 mm) must be provided. Between two horizontal curves in opposite direction (S curve), a straight section with twice the belt width (additional section profile with a minimum length of 512 mm) must be provided.

Use in abrasive environments is not permissible

Specifications

Condition on delivery	Some assembly required
Delivery unit	1
Size [b] [mm]	420
Modification	Additional track widths are available on request from our modification department. (COS@boschrexroth.de)
Material information	Clamping heads: Diecast aluminum; Profile connector: Steel, galvanized; Profile: Aluminum, anodized
Required accessories	Clamping piece VF belt (2x)
Weight [kg]	7.6

3842572115: frequently asked questions

When can 3842572115 be shipped?

3842572115 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842572115 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842572115 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842572115, subject to availability and destination.
