Home / Bosch Rexroth / Drive and return unit / Bosch Rexroth 3842572113

Bosch Rexroth 3842572113

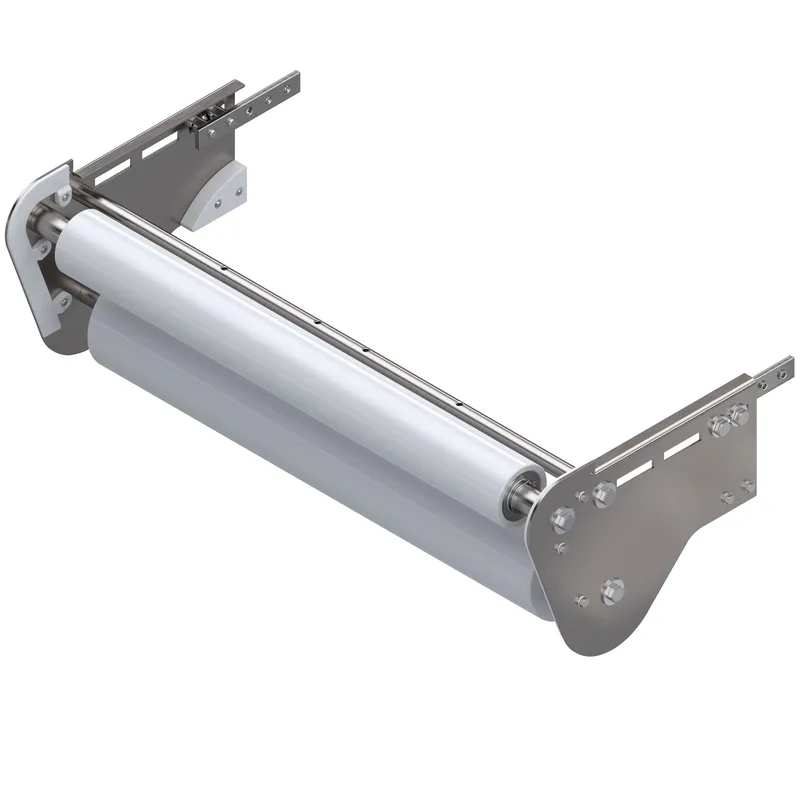

RETURN 622MB AL NOSE

MPN: 3842572113
Category: Drive and return unit

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842572113?

The small diameter of the return rollers at the front also enables linear transfer of shorter products without the need for additional components to bridge the conveyor trench.

After the return unit, a straight section of at least 608 mm length must be installed

Side elements with mounting option for attaching holders for lateral guides, or similar

Ball bearing made of non-rusting steel, with seal on both sides and FDA-compliant grease filling

Return roller suitable for conveyed materials from approx. 130 mm in length (depending on speed, position of the center of gravity, geometry, product friction)

Specifications

Condition on delivery	Assembled
Delivery unit	1

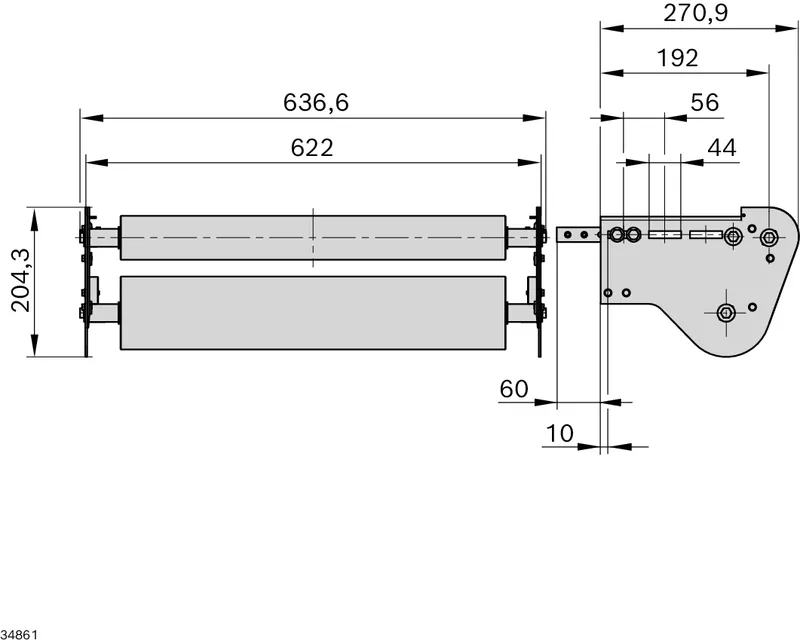

Size [b] [mm]	622
Scope of delivery	Incl. fastening material
Modification	Additional track widths are available on request from our modification department. (COS@boschrexroth.de)
Material information	Rollers: PE; Side plate, shaft: non-rusting steel
Weight [kg]	13
