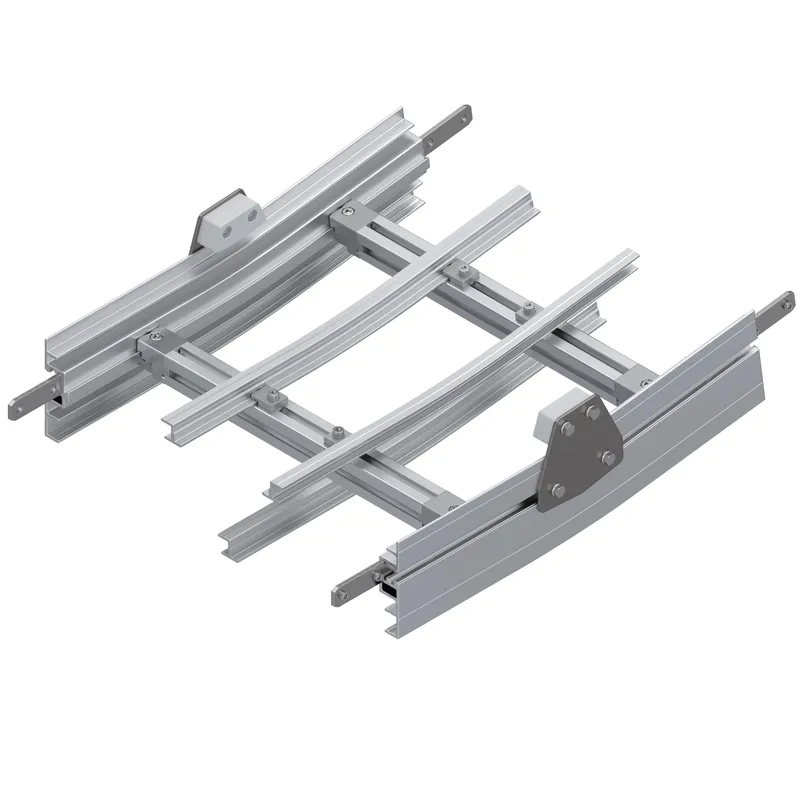

Bosch Rexroth 3842572121
CURVE 420MB VERAL7,5°R1000U
- MPN
- 3842572121
- Category
- Curve AL VarioFlow belt
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842572121?

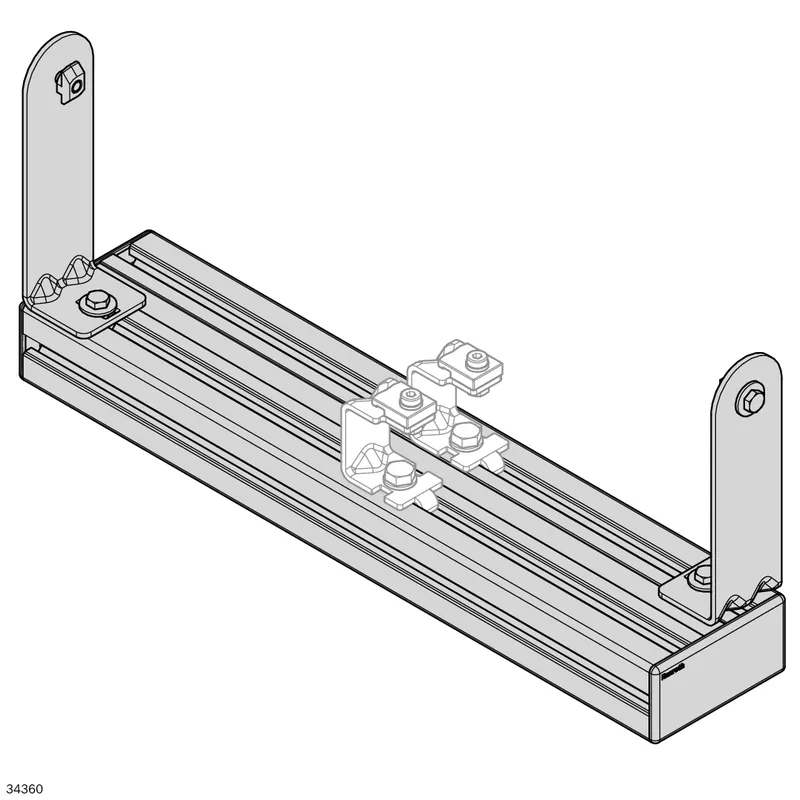

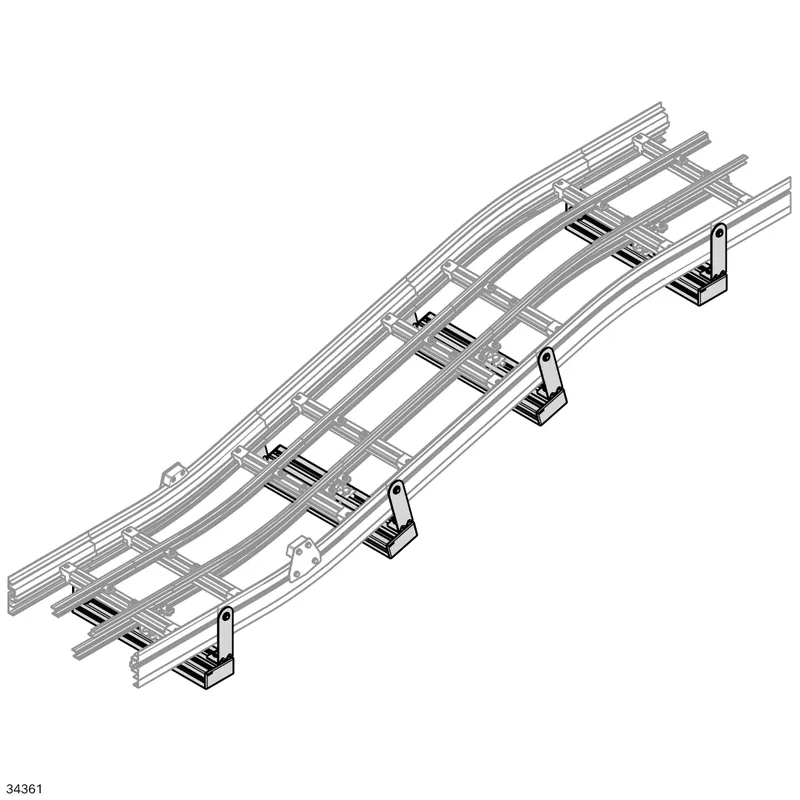

Before and after a vertical curve, a straight section with belt width (additional section profile with a minimum length of 256 mm) must be provided. Two additional support struts are required for the assembly of the attached support profile.
The usable track width is reduced by the use of lateral holding-down clamps for guiding the modular belt close to the profile in the vertical curve. Despite the use of the holding-down clamps, the modular belt may bulge in the vertical curves. The maximum bulging can be up to 35 mm in the center of the belt, depending on curve angle, chain tensile force and speed.
Use in abrasive environments is not permissible
Maximum permissible belt tensile force: 450 N
Specifications
Specifications
| Delivery unit | 1 |

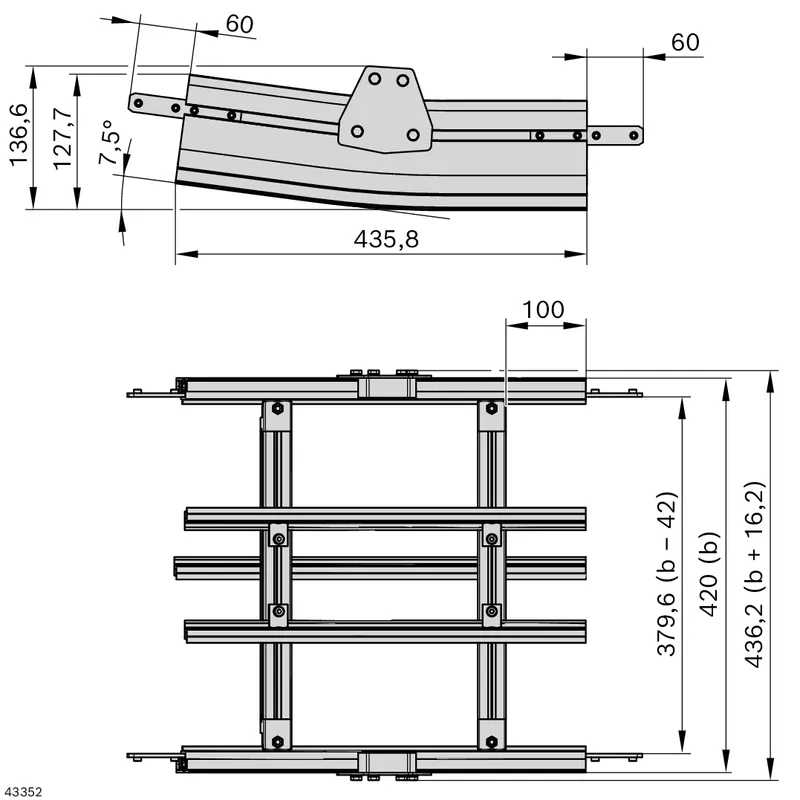

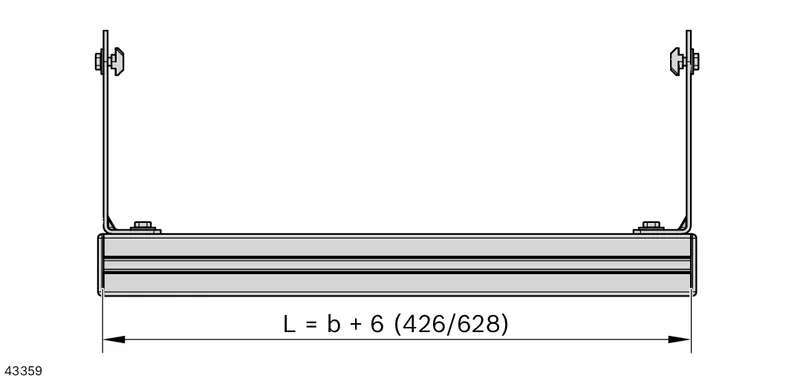

| Size [b] [mm] | 420 |
| Scope of delivery | Incl. fastening material |
| Notice | A start ramp is recommended to limit the excessive spring deflection of the modular belt during start-up. |
| Modification | Additional track widths are available on request from our modification department. (COS@boschrexroth.de) |
| Material information | Clamping heads: Diecast aluminum; Profile connector: Steel, galvanized; Profile: Aluminum, anodized |
| Required accessories | 10mm supporting bracket STS (2x); Clamping piece VF belt (2x); Cover cap 45x90 (2x); Holder support profile modular belt (2x); Per support strut: Strut profile 45x90L (1x) |
| Weight [kg] | 3.49 |
