Bosch Rexroth 3842572109

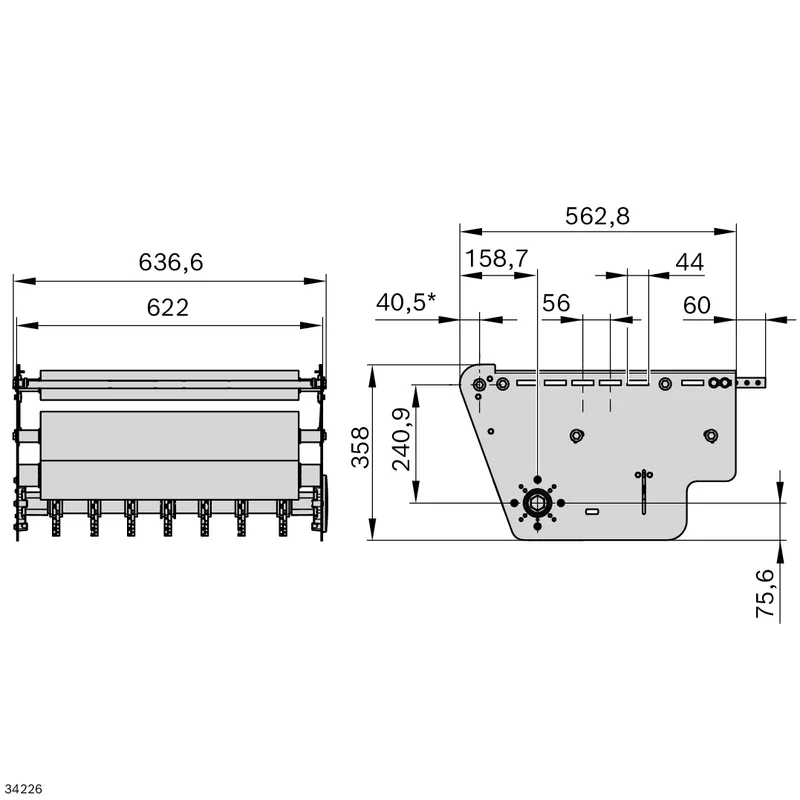

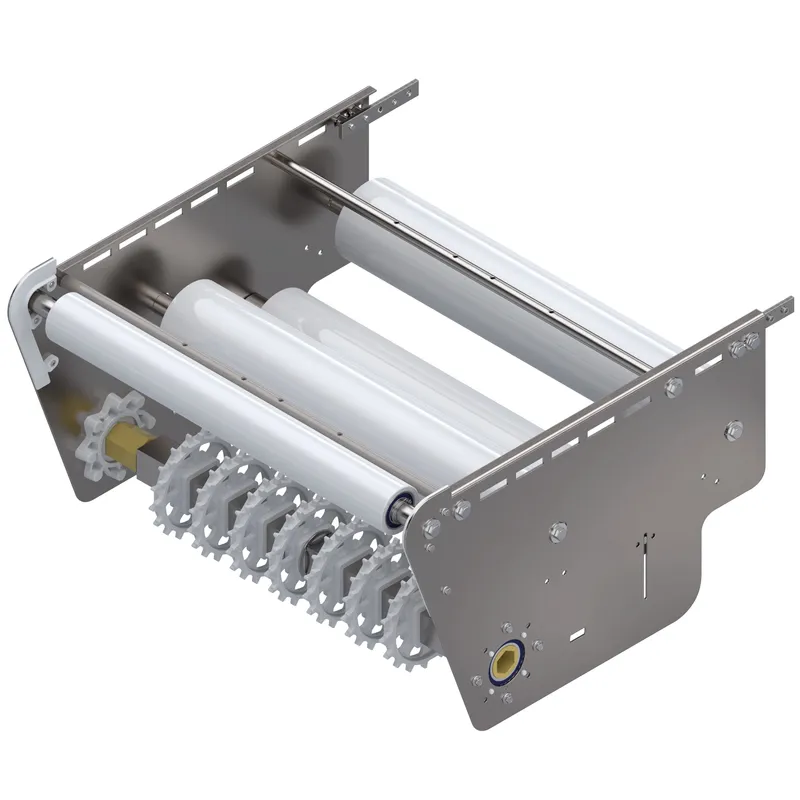

BASE UNIT 622MB AL DIRECT NOSE

MPN: 3842572109
Category: Drive and return unit

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842572109?

The small diameter of the return rollers at the front also enables linear transfer of shorter products without the need for additional components to bridge the conveyor trench.

The tensioning roller is used to compensate for chain lengthening during the service life.

After the basic unit, a straight section of at least 608 mm length must be installed

Free choice of the motor mounting position on site

Configurable drive kit (standard gear motor or round shaft)

Side elements with mounting option for attaching holders for lateral guides, or similar

Maximum permissible belt tensile force: 1250 N

Section length: L ≤ 30 m

Conveyor speed: vN up to 40 m/min

Not suitable for reversible operation

Ball bearing made of non-rusting steel, with seal on both sides and FDA-compliant grease filling

Return roller suitable for conveyed materials from approx. 130 mm in length (minimum, depending on speed, position of the center of gravity, geometry, product friction)

Specifications

Condition on delivery	Assembled
Delivery unit	1
Size [b] [mm]	622
Scope of delivery	Incl. fastening material
Notice	If the static friction modular belt is used in an accessible area, the drive must be secured by the customer
Modification	Additional track widths are available on request from our modification department. (COS@boschrexroth.de)
Material information	Rollers: PE; Side panel, shaft: non-rusting steel/PA; Toothed gears:: POM
Required accessories	Drive kit VFbelt
Weight [kg]	42.6
