Bosch Rexroth 3842564312

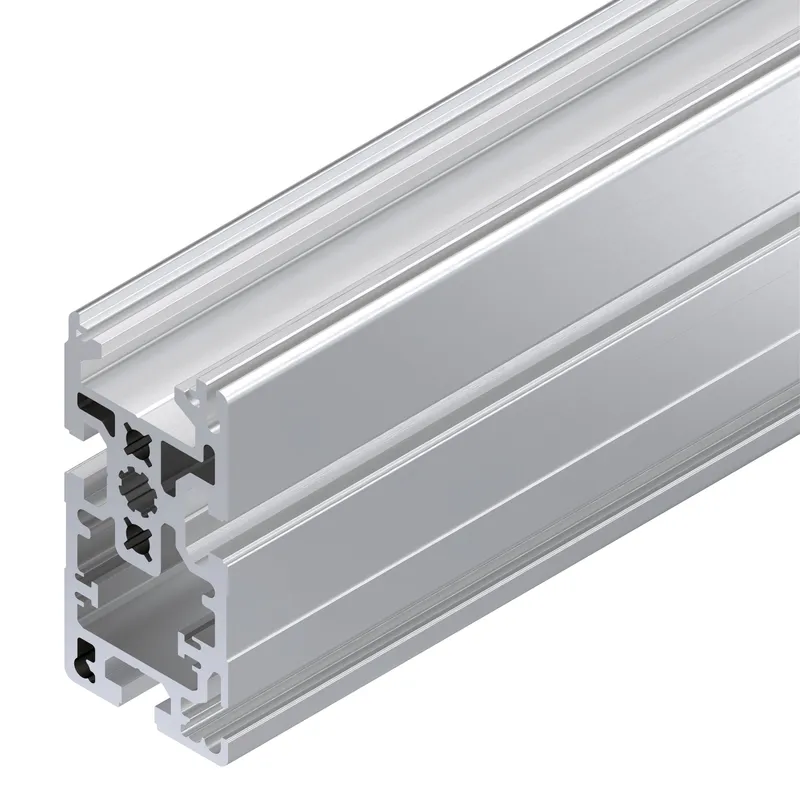

SECTION PROFILE SP 2/C-H 12X6070MM

MPN: 3842564312
Category: Components of the flat top chain conveyor units

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842564312?

For conveyor unit self-assembly

In especially sturdy design for particularly heavy-duty sections

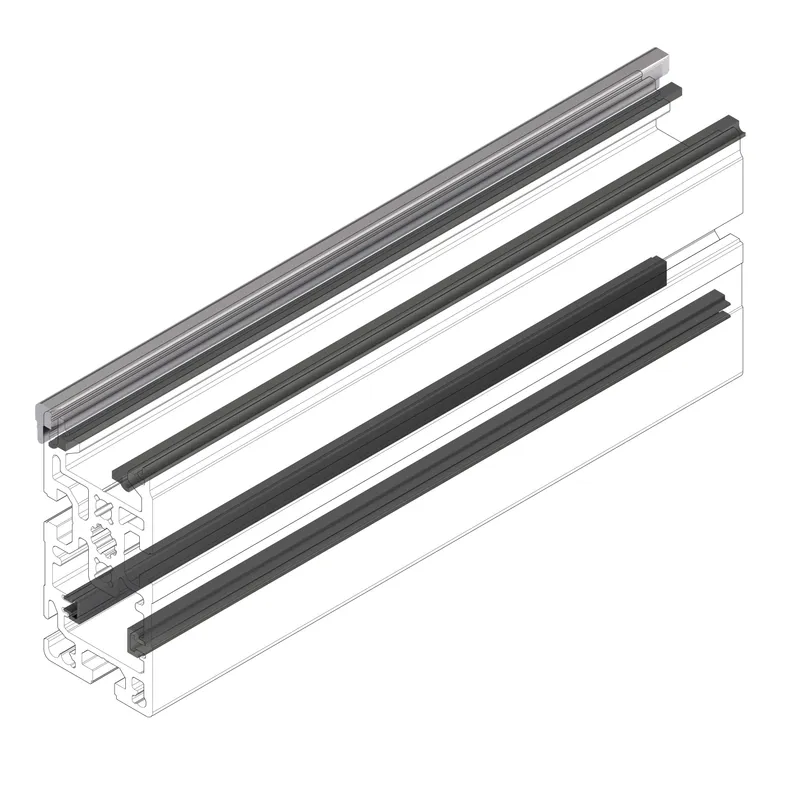

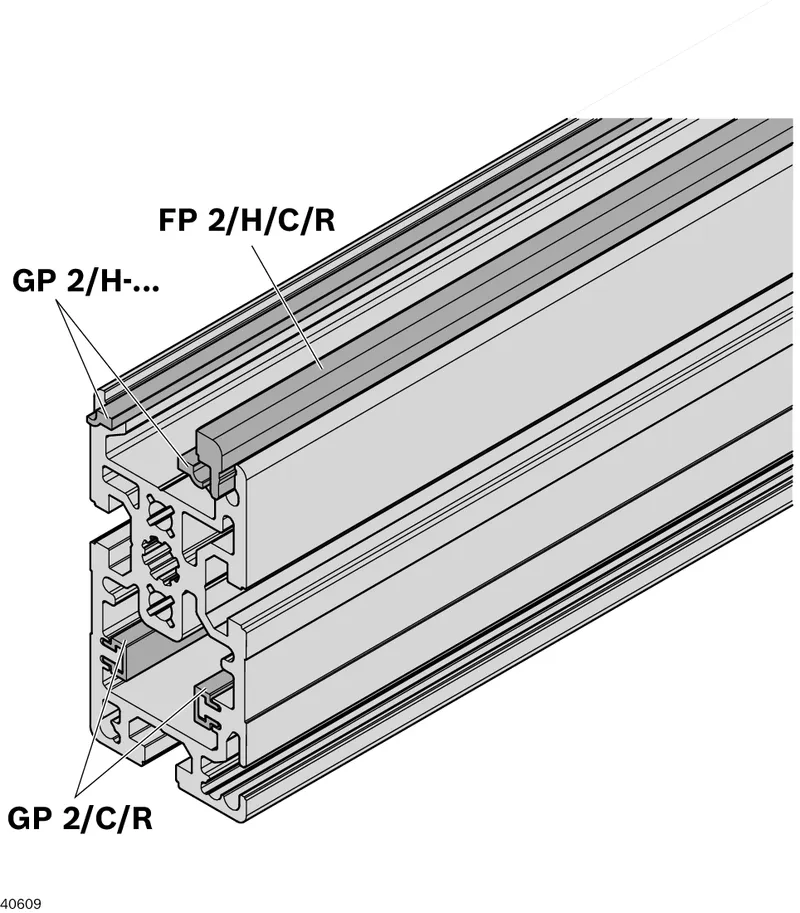

For use with all drive modules AS 2/C, guide profiles FP 2/H-ST and glide profiles GP 2/H-..

Longitudinal grooves for easy mounting

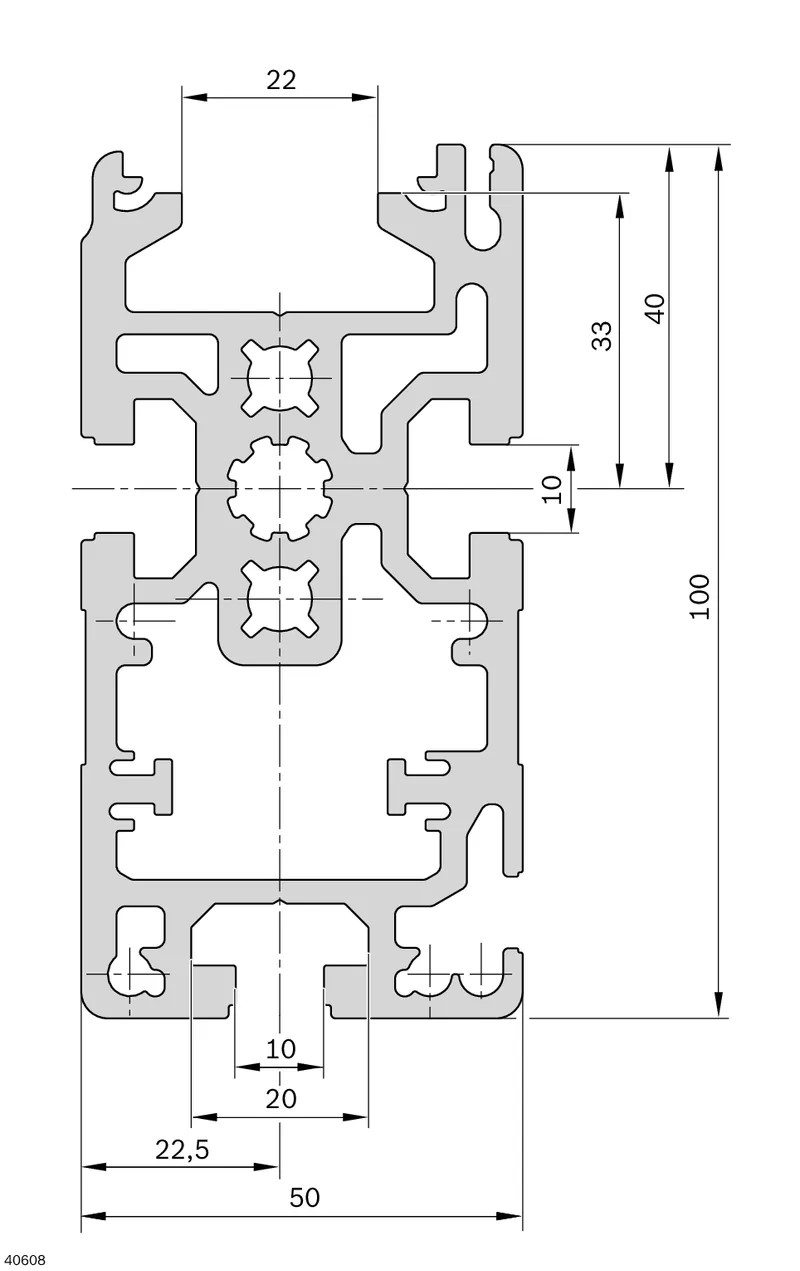

For conveyor units with a height to conveying level of 100 mm

For heavy-duty conveyor unit assembly

Profile width: 50 mm

Specifications

Delivery unit	12
Mass [m] [kg]	5.28
Area moment of inertia in x-direction [lx] [cm⁴]	156.05
Area moment of inertia in y-direction [ly] [cm⁴]	52.79
Profile surface [A] [cm²]	19.22
Moment of resistance in the x-direction [Wx] [cm³]	49.75
Moment of resistance in the y-direction [Wy] [cm³]	25.14
Length [L]	6070.0
Material	Aluminum, anodized
Required accessories	Adapter plate kit ST 2/C-H; Cover rail for cable duct; Glide profile GP 2/H-KS; Glide profile GP 2/H-ST; Guide profile FP 2/H-ST
Weight [kg]	390.9
