Bosch Rexroth 3842564309

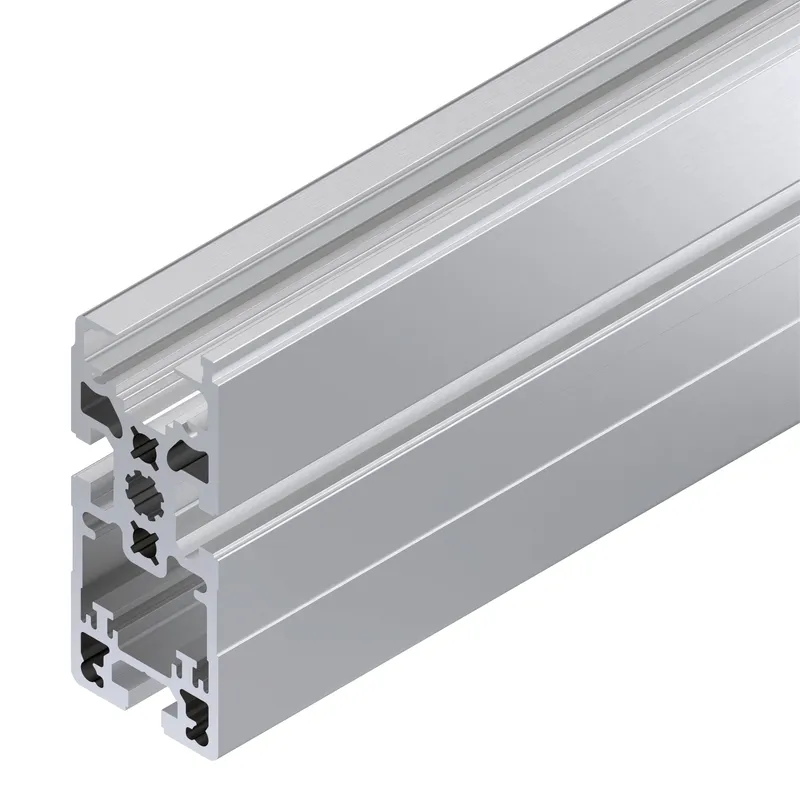

SECTION PROFILE SP 2/R-100 12X6070MM

MPN: 3842564309
Category: Components of the accumulation roller chain conveyor units

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842564309?

The section profile is used to set up conveyor units with the accumulation roller chain conveyor medium

For conveyor unit self-assembly

For use in conjunction with all AS 2/R-... drive modules, UM 2/R-... return units, FP 2 guide profiles and GP 2 glide profiles

Longitudinal grooves for easy mounting

Specifications

Delivery unit	12
Mass [m] [kg]	4.79
Area moment of inertia in x-direction [lx] [cm⁴]	146.25
Area moment of inertia in y-direction [ly] [cm⁴]	38.98
Profile surface [A] [cm²]	17.28
Moment of resistance in the x-direction [Wx] [cm³]	56.86
Moment of resistance in the y-direction [Wy] [cm³]	22.93
Length [L]	6070.0
Material	Aluminum, anodized
Required accessories	Glide profile GP 2; Guide profile FP 2
Weight [kg]	354.68
