Bosch Rexroth 3842564563
SLIDE STOP VA 2/D-130
- MPN
- 3842564563
- Category
- Slide stops
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842564563?

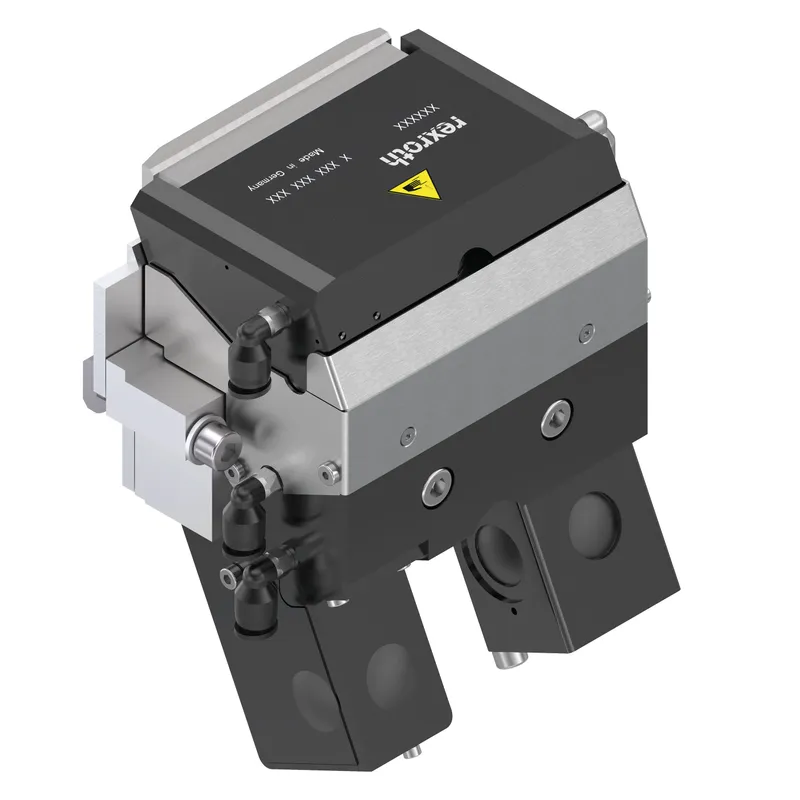

Slide stop, can be lowered pneumatically, dampened stop
Stopping on the outside of the frame module
Can be used in reversible operation

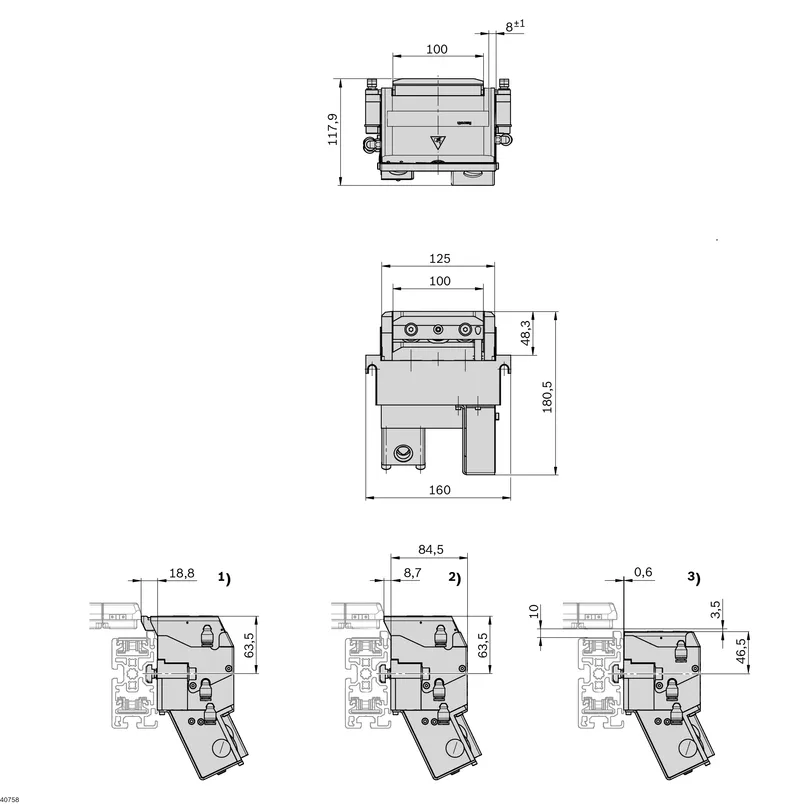

Design permits installation with a section gap from a = 90 mm when space is limited
Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm
4 positions can be moved to pneumatically: upper, lower position and stop rail in the extended and retracted state
3 positions can be detected: top, bottom and retracted stop rail
Additional possibilities for installing sensors, advantageous in restricted conditions
Can be combined with WT 2 and WT 2/F
Notice: Combination with WT 2/LS not possible

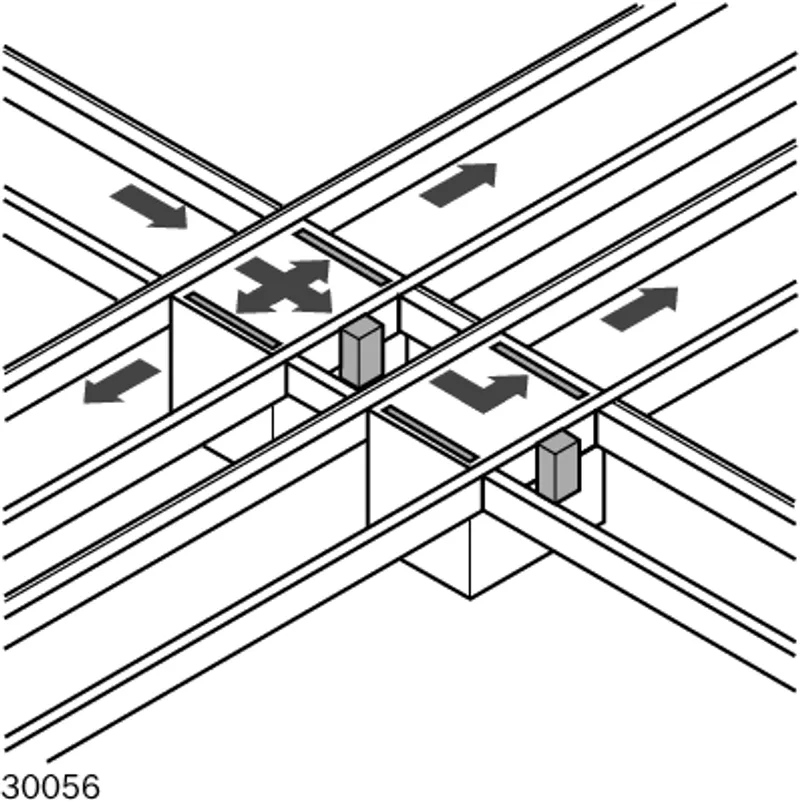

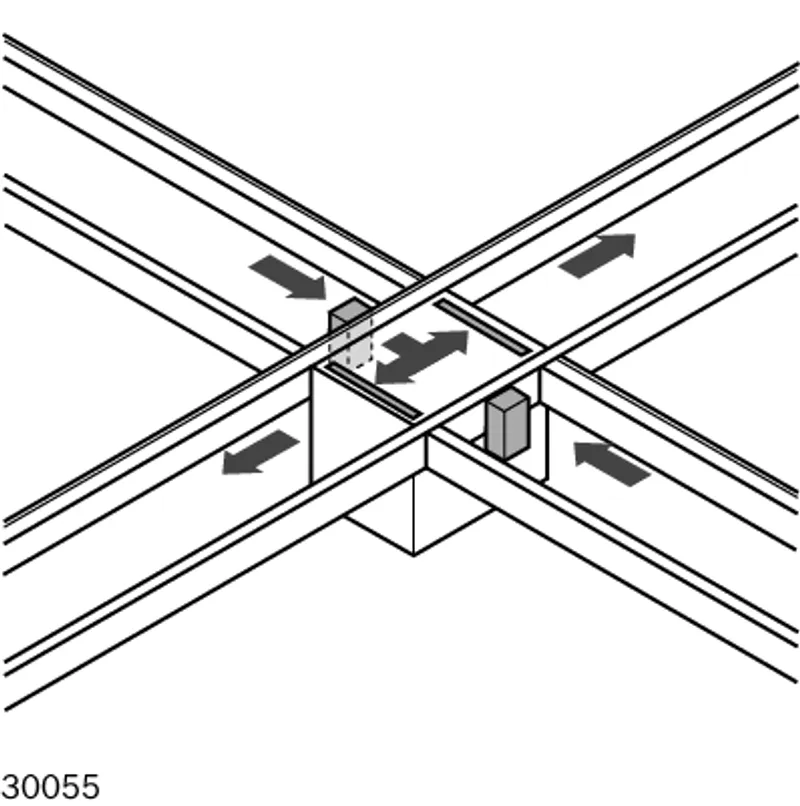

The slide stop is used in a transverse section that connects more than two longitudinal sections and that requires supplementary stops
A lift transverse unit can feed in the workpiece pallet onto the longitudinal section when the slide stop is activated
When depressurized, the pneumatically adjustable slide stop is extended to the upper end position
Mounted inside the tracks, directly on the conveyor section
Specifications
Specifications
| Condition on delivery | Assembled |
| ESD | Yes |
| required compressed air connection [pmax] [bar] | 6 |
| required compressed air connection [pmin] [bar] | 4 |
| Operating temperature [T] max | 60 °C |
| Workpiece pallet total weight [mG] [kg] | 130 |
| Pneumatic straight connection [Ø] [mm] | 6 |
| Scope of delivery | Incl. fastening material for installation on conveyor section; Position sensing; Right-angle connector for the push in air connections |
| Material information | Housing: aluminum; hard anodized; Latch: steel |
| Min. workpiece pallet weight m | 15 kg |

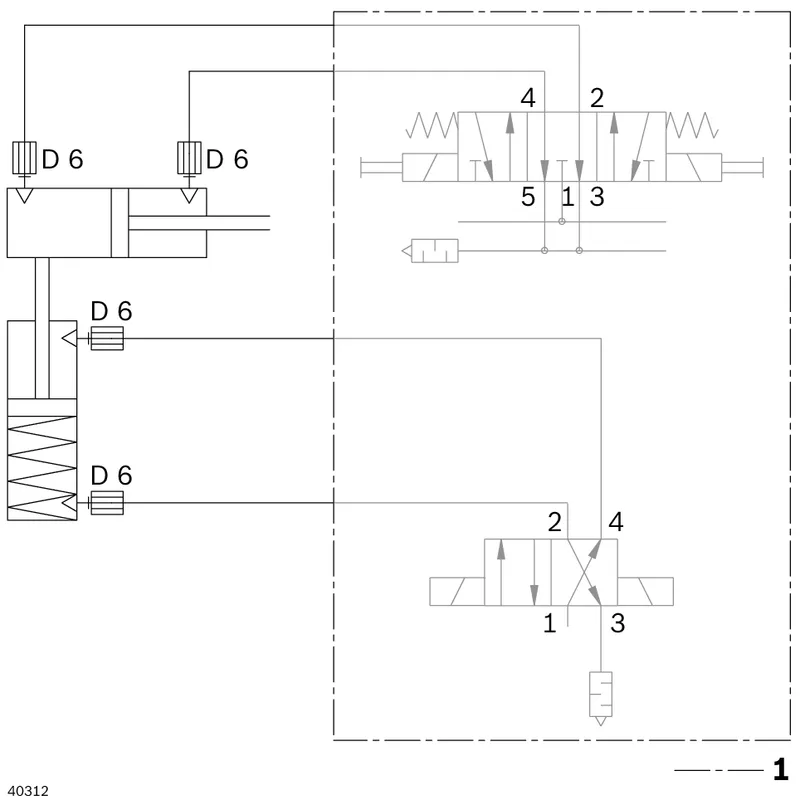

| Pneumatic circuit diagram | 1 Not included in the scope of delivery |
| Maximum permissible mass workpiece pallet mG at nominal speed vN 6 m/min | 130 kg |
| Maximum permissible mass workpiece pallet mG at nominal speed vN 9 m/min | 110 kg |
| Maximum permissible mass workpiece pallet mG at nominal speed vN 12 m/min | 110 kg |
| Maximum permissible mass workpiece pallet mG at nominal speed vN 15 m/min | 100 kg |
| Maximum permissible mass workpiece pallet mG at nominal speed vN 18 m/min | 100 kg |
| Recommended accessories | Clamping holder; Sensor M12x1 with rated switching distance SN = 4 mm, overall length 45 mm |
| Weight [kg] | 4.2 |
