Bosch Rexroth 3842564310
SECTION PROFILE SP 2/C-100 12X6070MM
- MPN
- 3842564310
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

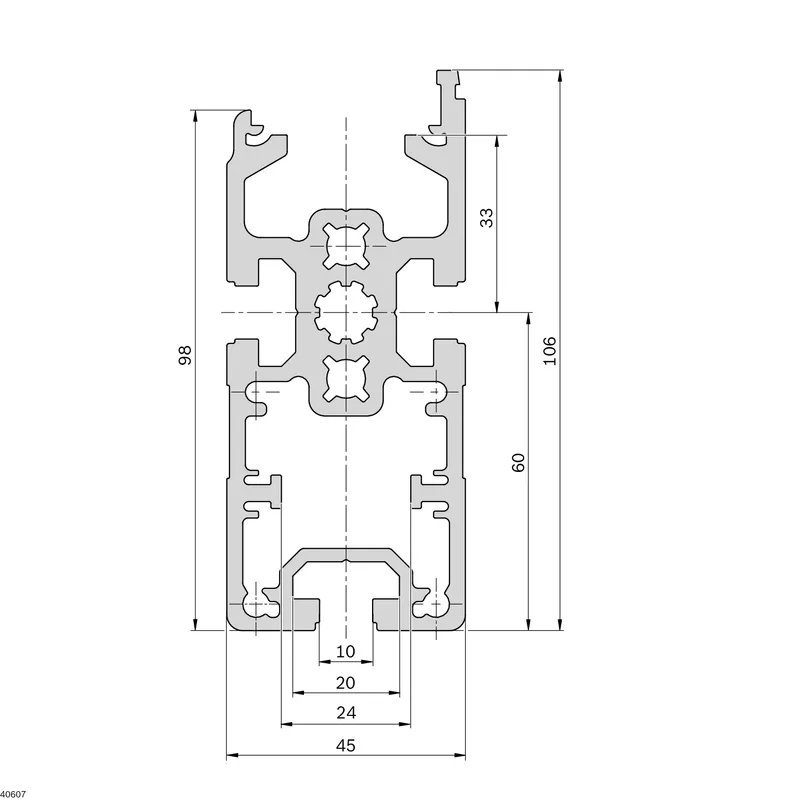

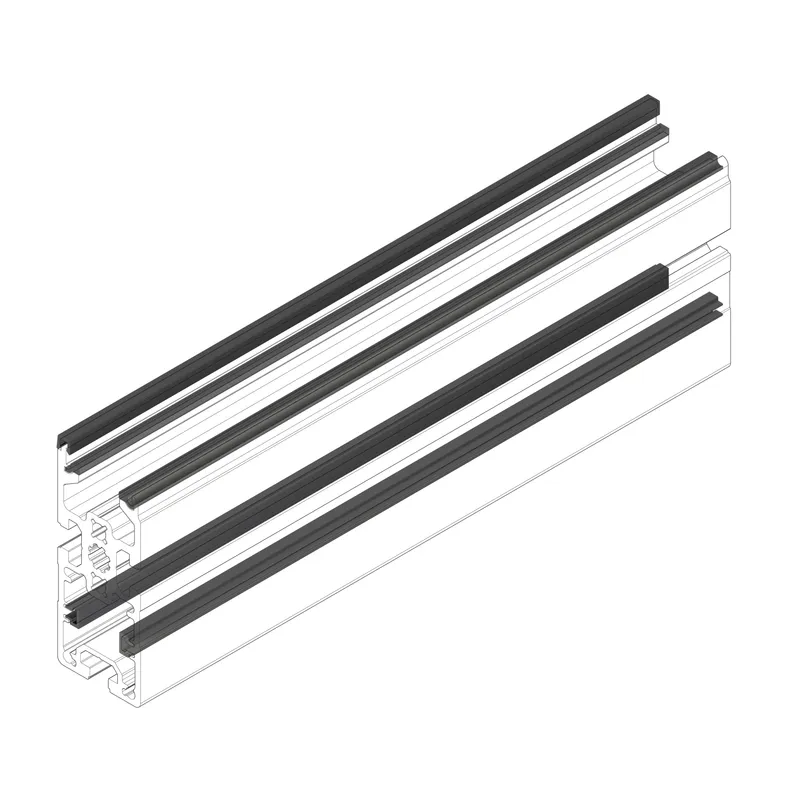

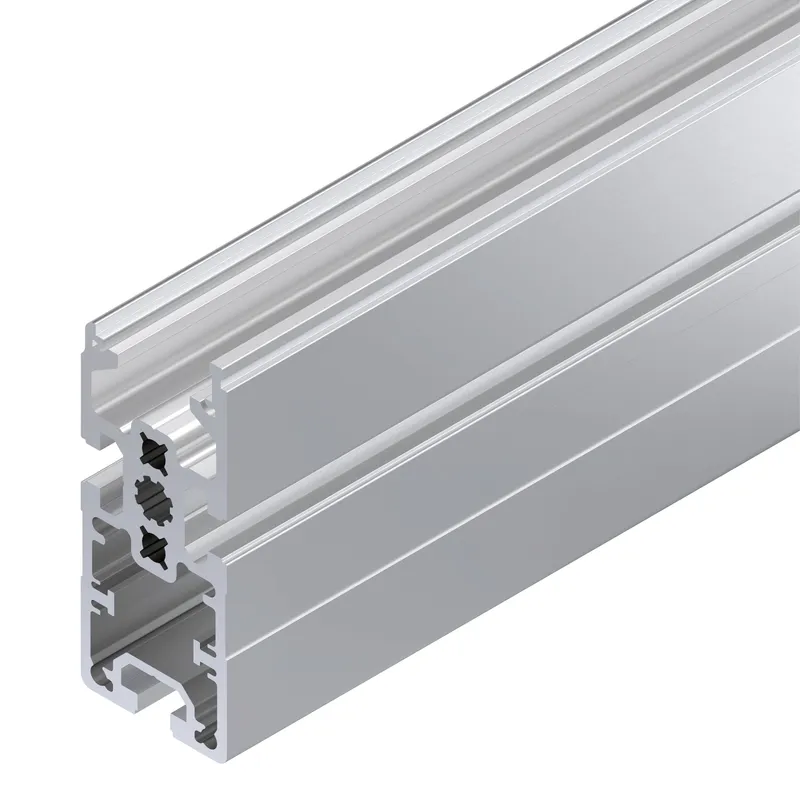

What is the Bosch Rexroth 3842564310?
The section profile is used to set up conveyor units with the flat top chain conveyor medium
For conveyor unit self-assembly for profile construction heights of 100 mm
For use in conjunction with all AS 2/C-... drive modules, UM 2/C-... return units, FP 2 guide profiles and GP 2 glide profiles
Longitudinal grooves for easy mounting
For conveyor units with a height to conveying level of 100 mm
The WT 2/LS can be used for longitudinal conveyors with this component
It is not possible to cross over
Specifications
Specifications
| Profile slot | 10 |
| Delivery unit | 12 |
| Length [L] | 6070.0 |
| Material | Aluminum, anodized |
| Mass [m] [kg] | 4.52 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 134.70 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 38.47 |
| Profile surface [A] [cm²] | 16.56 |
| Moment of resistance in the x-direction [Wx] [cm³] | 55.92 |
| Moment of resistance in the y-direction [Wy] [cm³] | 23.02 |
| Required accessories | Glide profile GP 2; Guide profile FP 2 |
| Weight [kg] | 334.65 |
