Bosch Rexroth 3842557604

SWITCH BRACKET SH 2/S

MPN: 3842557604
Category: Switch bracket TS 2

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842557604?

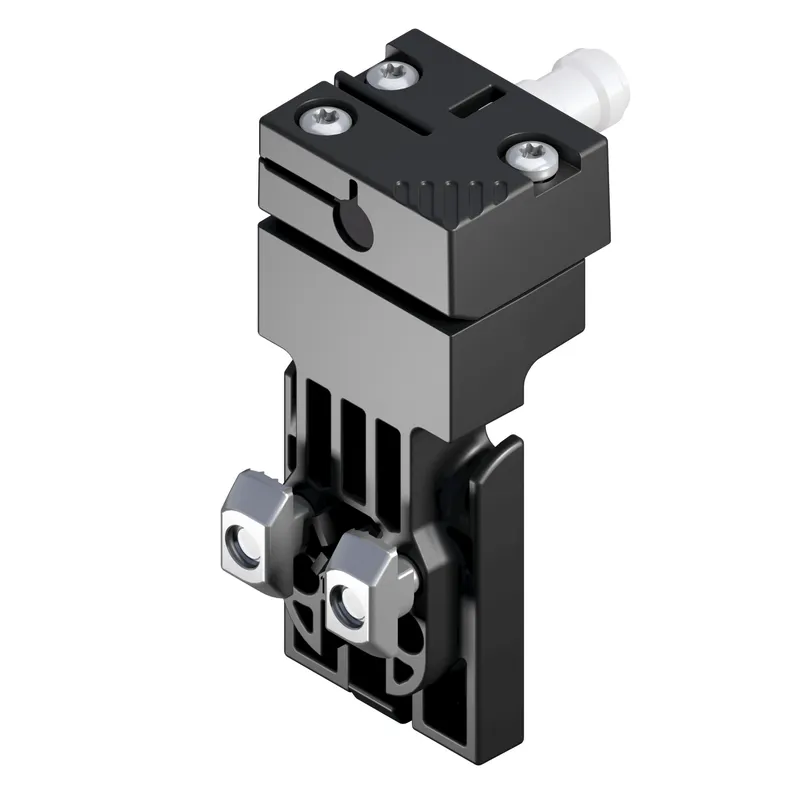

Switch Bracket SH 2/S

For fastening a sensor and attaching to the outside groove of a conveyor section

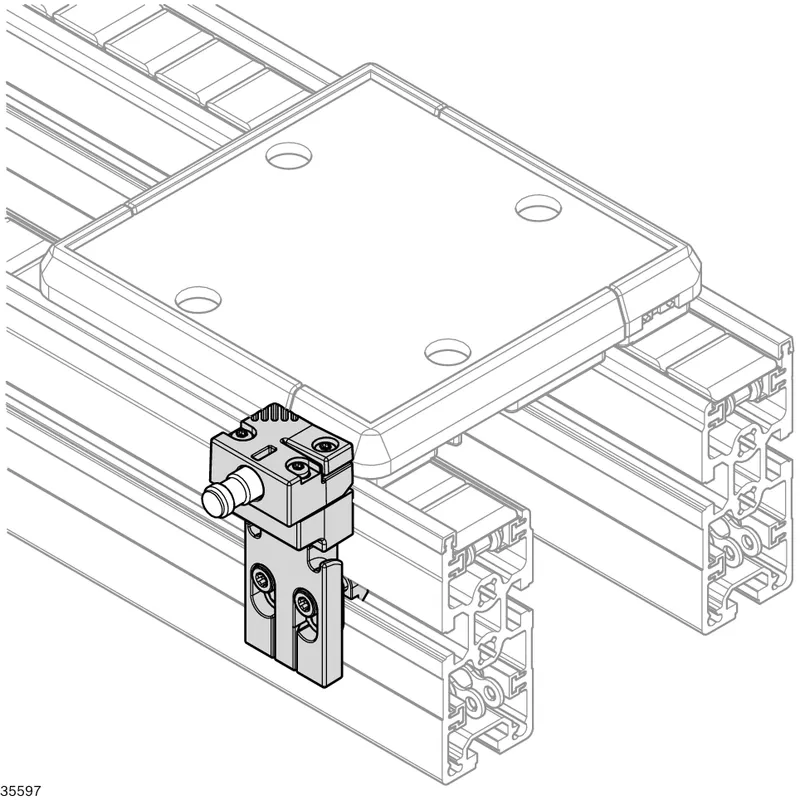

Suitable for lateral sensing of the workpiece pallet position

The short length of the switch bracket enables recognition of the operating status of the sensor

Simple, fast mounting and replacement of the sensor without adjustment through flush installation with defined sensing range

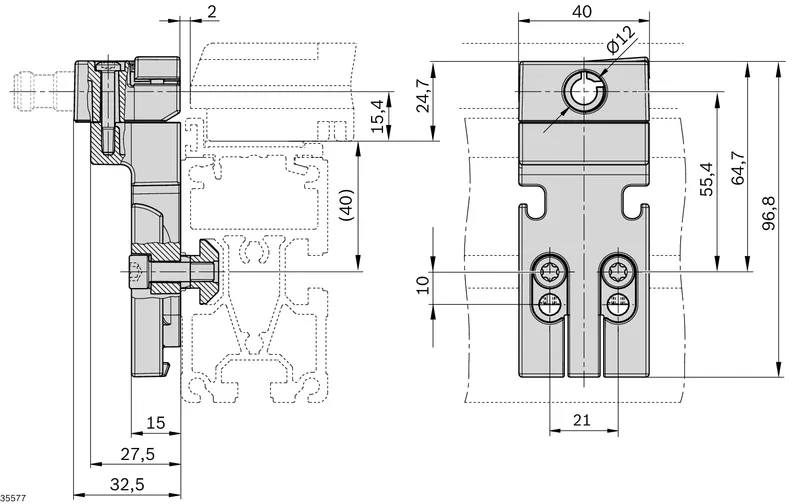

Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm

Changing the sensor is quick and easy by loosening a separate clamping screw. The switch bracket stays in position

The integrated cable routing and cable clamping allows secure and protected cable routing

Specifications

Scope of delivery	Incl. fastening material for assembly on conveyor sections ST 2/...
Delivery information	Not assembled
Material information	Housing: PA 66, black; Switch cover: PA 66, black
Required accessories	Sensor M12, S<sub>N</sub> = 8 mm, L ≥ 44 mm<br/>can be installed flush or not flush
Weight [kg]	0.07
