Home / Bosch Rexroth / Material shelves / Bosch Rexroth 3842557941

Bosch Rexroth

Bosch Rexroth 3842557941

FRAME PROFILE 22,5X45 20X6070MM

MPN: 3842557941
Category: Material shelves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842557941?

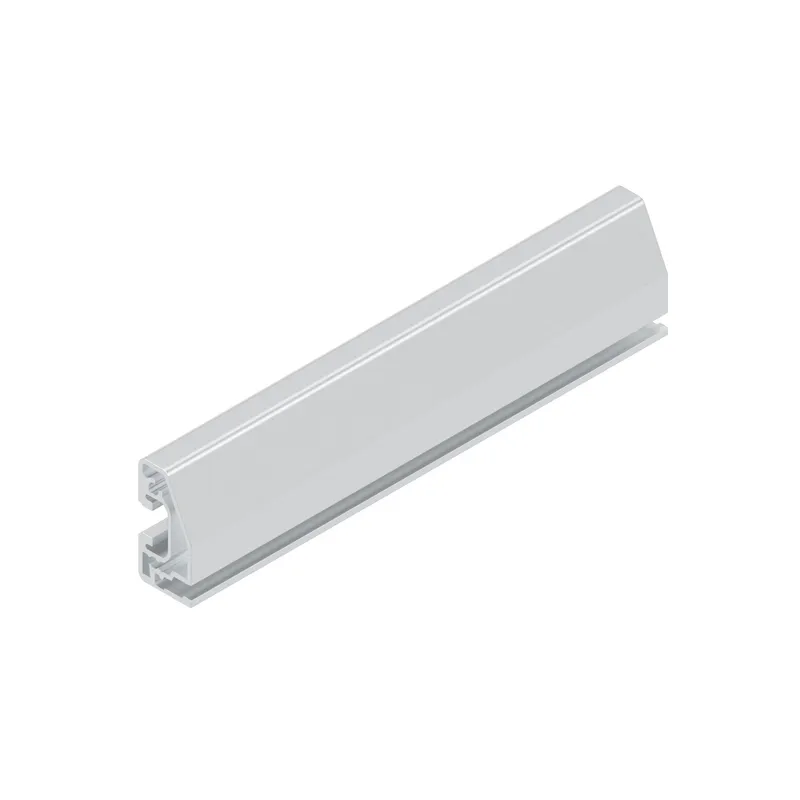

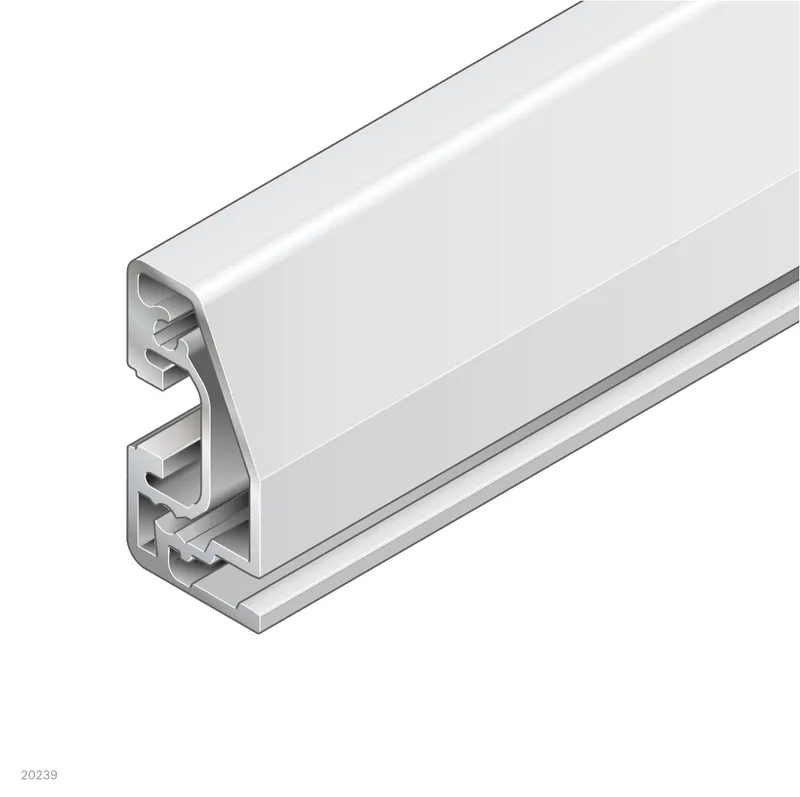

Frame profile 22.5x45 L6070

For inexpensive construction of trays and material shelves

Surface elements are mounted under tension so that they do not rattle

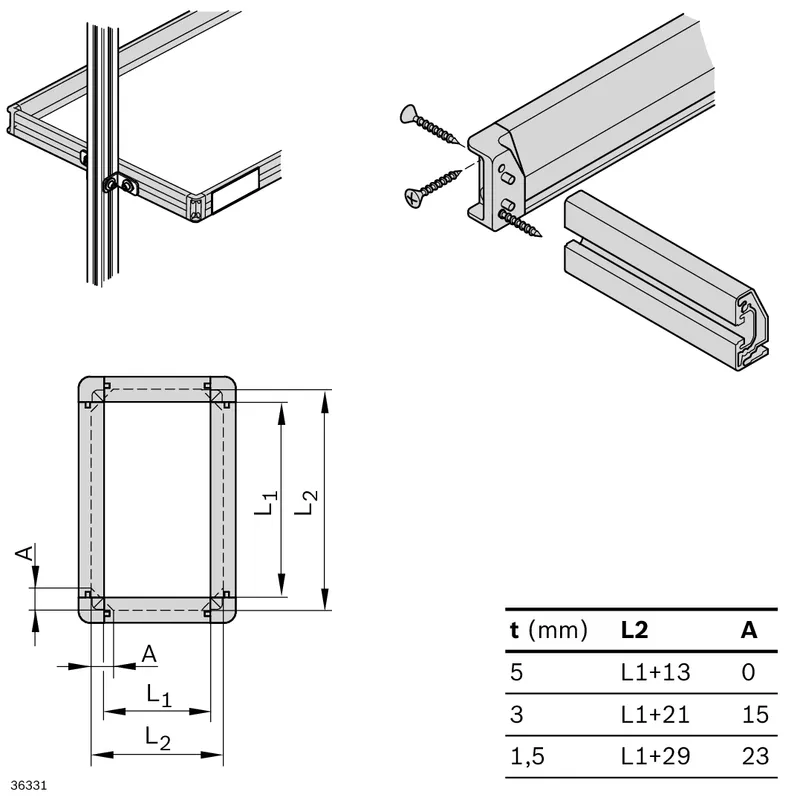

Corner bracket for frame profile 22.5x45

For the right-angled connection of two 22.5x45 frame profiles

Profile finishing: not required

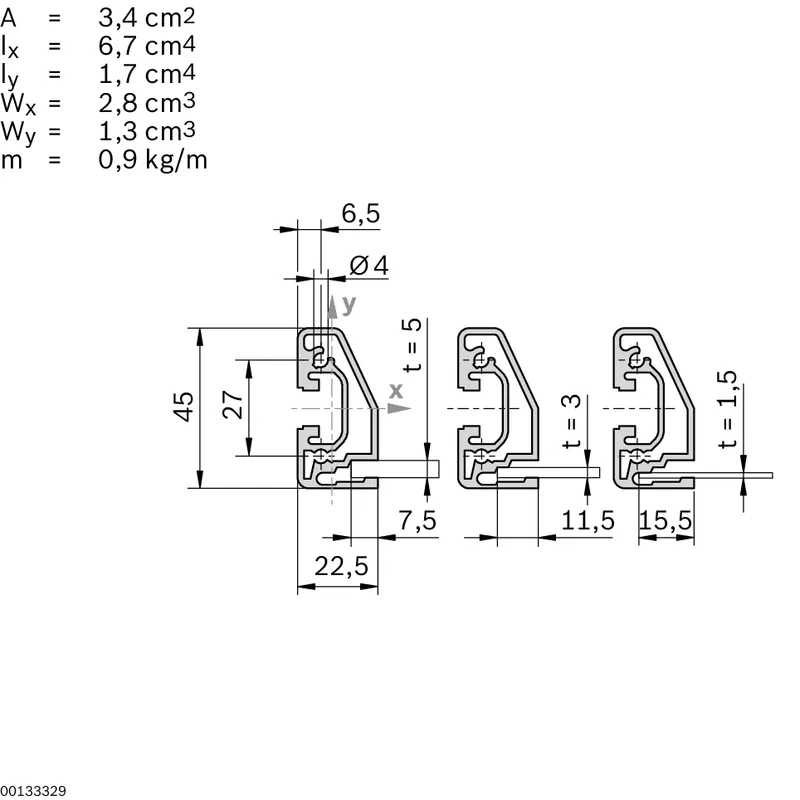

Specifications

Condition on delivery	Packaging unit in standard length
Profile slot	10
Delivery unit	20
Mass [m] [kg]	0.9
Area moment of inertia in x-direction [lx] [cm⁴]	6.7
Area moment of inertia in y-direction [ly] [cm⁴]	1.7
Profile surface [A] [cm²]	3.4
Moment of resistance in the x-direction [Wx] [cm³]	2.8
Moment of resistance in the y-direction [Wy] [cm³]	1.3
Length [L]	6070.0
Material	Aluminum, anodized
Recommended accessories	Bracket set; Lettering clip for 10 mm slot; Plate; Swivel fastening
Weight [kg]	106.1
