Bosch Rexroth

Bosch Rexroth 3842557602

SWITCH BRACKET SH 2/U

MPN: 3842557602
Category: Switch bracket TS 2

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842557602?

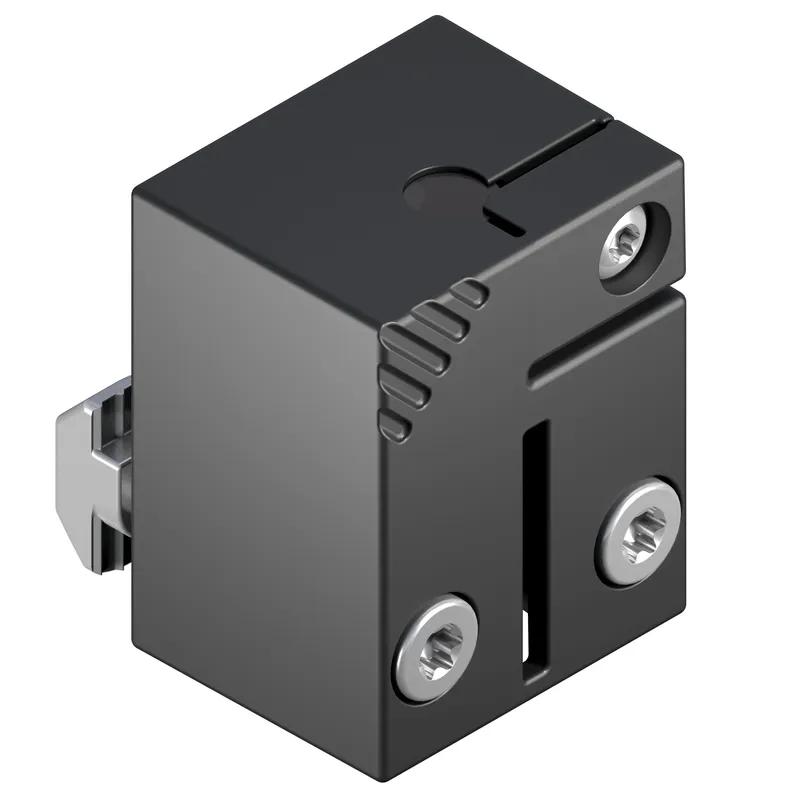

Switch Bracket SH 2/U

For fastening a sensor and attaching to the inside groove of a conveyor section

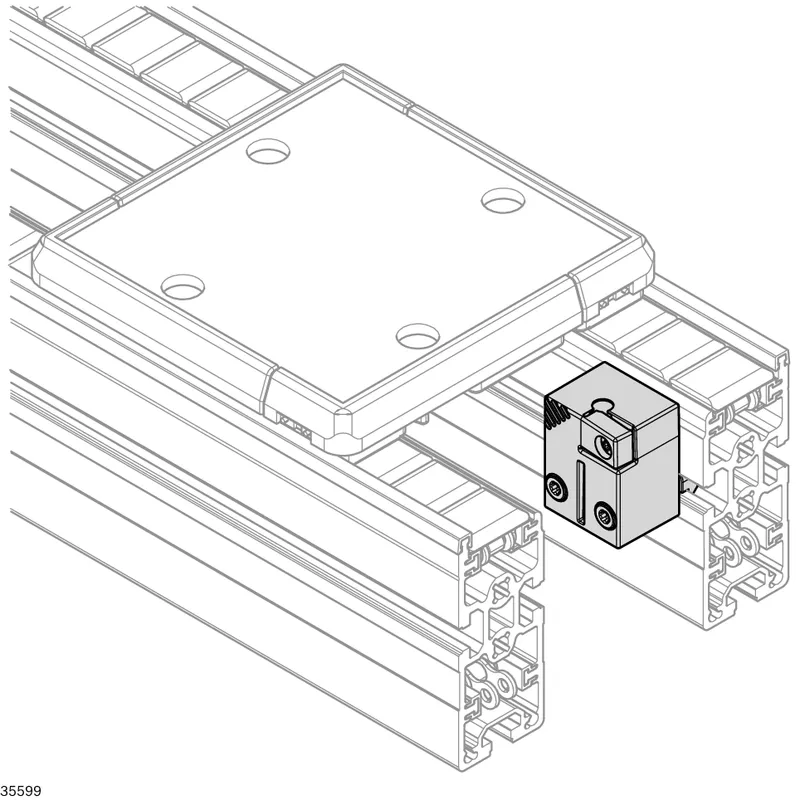

Suitable for querying the workpiece pallet position from below or for use in the WI rocker

Inspection window to recognize the operating state of the sensor

Simple, fast mounting and replacement of the sensor without adjustment through flush installation with defined sensing range

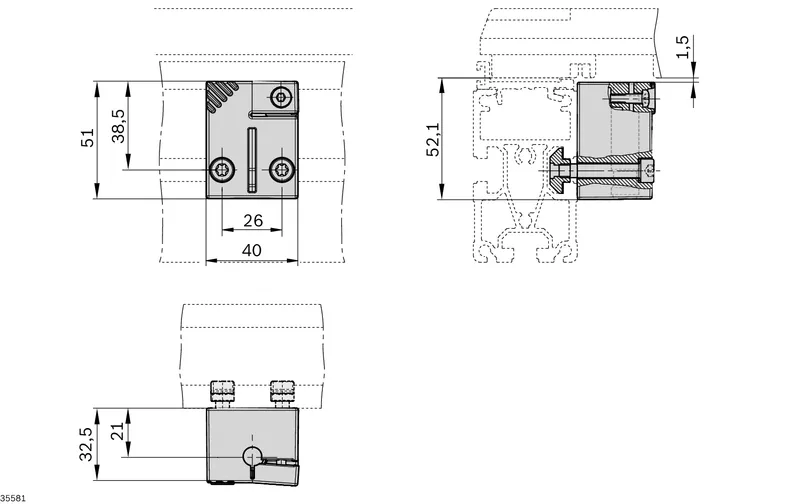

Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm

Changing the sensor is quick and easy by loosening a separate clamping screw. The switch bracket stays in position

The switch bracket can be used to fix a sensor M12x1 in place for lateral sensing of the workpiece pallet position

Specifications

Color	Black
Scope of delivery	Incl. fastening material
Delivery information	Not assembled
Material	PA 66
Required accessories	Sensor M12x1, S<sub>N</sub> = 8 mm, L ≥ 60 mm can be installed flush or not flush
Weight [kg]	0.06
